915034 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Electrical System Parts Diagram

40" Zero-Turn Mower, 16hp Briggs & Stratton

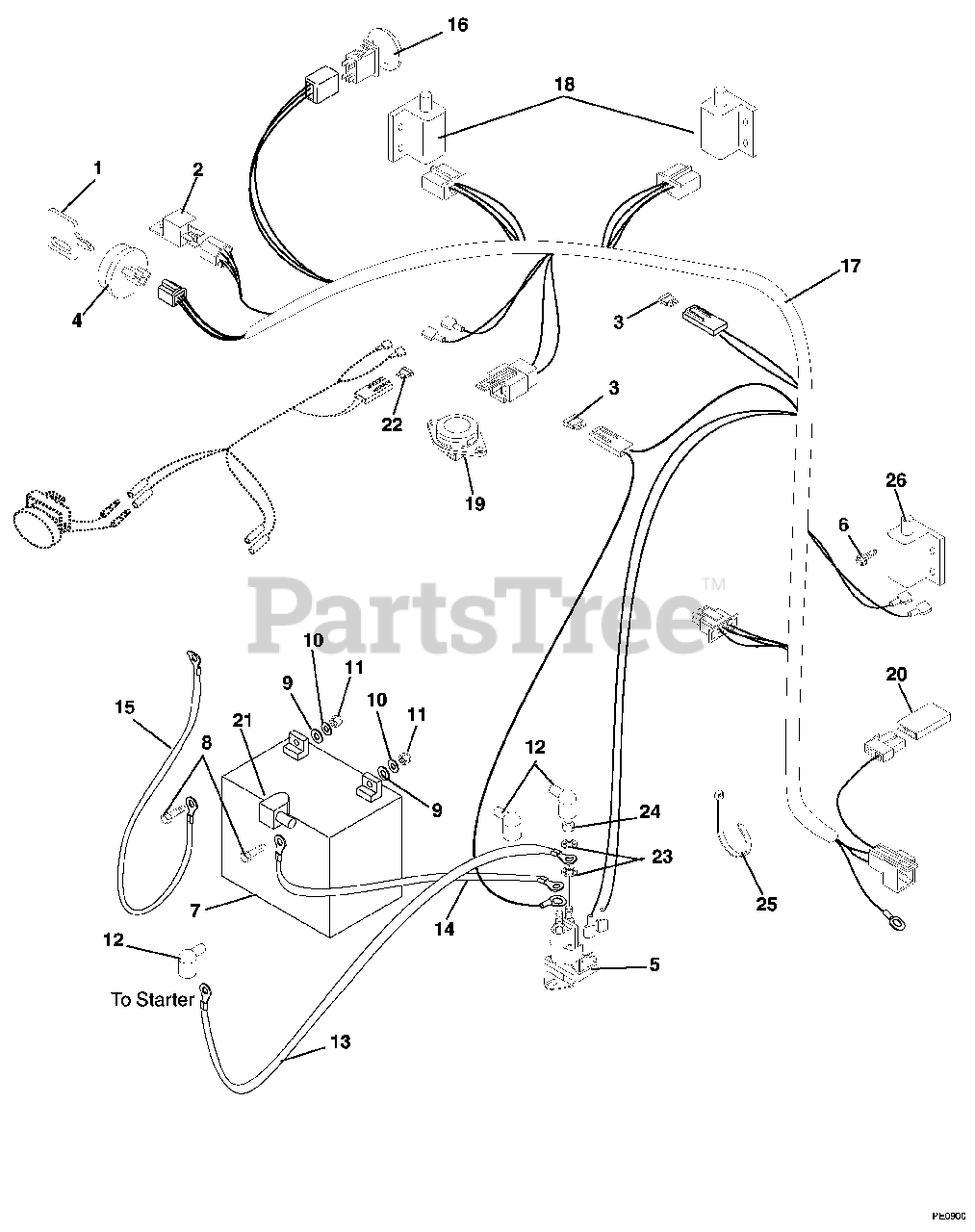

Electrical System Parts Diagram

  • Title
1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

5

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 07415800

Screw, Tapping 10- 24 x .50 Hex Washer Head
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

7

Gravely 01554800

Battery, Filled (034, 036, 038, 040)

Note: (034, 036, 038, 040)

$

$

Not available

7

Gravely 03621100

Battery with Tube

$

$

Not available

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 2 left!

0

13

Gravely 02743300

Starter Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 1 left!

0

14

Gravely 02727200

Starter Cable 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

15

Gravely 036314

Ground Cable
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

16

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

17

Gravely 01602900

Wire Harness, Zoom 6 Pin
(Superseded to 01602901)

$239.99

$

Usually ships in 4-12 days

0

18

Gravely 03606600

Switch, Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

19

Gravely 02754100

Switch, Snap Mounting (N.O.)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

20

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

21

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 09356600

Fuse, 10 AMP

$

$

Not available

23

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

24

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

25

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

26

Gravely 03095700

Switch, Interlock NC

$9.49

$

Usually ships in 4-12 days

0
