915033 (1440) - Ariens Sport Zoom 40" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 000101 - 009999) Deck Lift Parts Diagram

Sport Zoom 40" Zero-Turn Mower, 14hp Briggs & Stratton

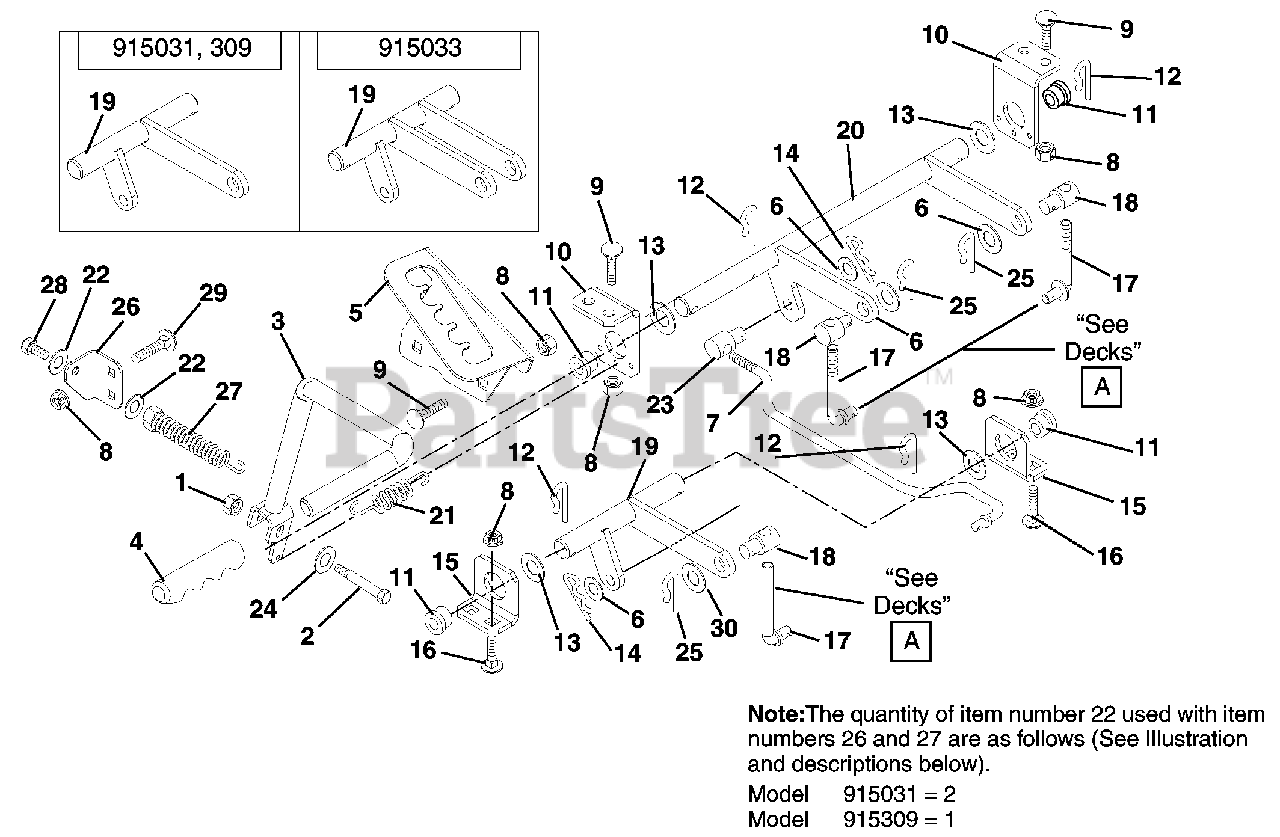

Deck Lift Parts Diagram

  • Title

1

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 05980300

BOLT,SHLDR .38X1.25 .31-18 PLN

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01606851

WLDM'T LIFT HANDLE
(Superseded to 01606800)

$51.99

$

Usually ships in 4-12 days

0

4

Ariens 07527500

GRIP

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 01607351

DETENT PLATE

$45.99

$

Usually ships in 4-12 days

0

6

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 02776300

ROD, DECK LIFT

$

$

Not available

8

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

10

Ariens 02762800

BRACKET-HANGER

$

$

Not available

11

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 6

0

12

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

13

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 02762700

BRACKET-PIVOT

$

$

Not available

16

Ariens 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

17

Ariens 02778100

LINK, LIFT

Note: (031, 309)

$40.99

$

Usually ships in 4-12 days

0

Ariens 02778100

LINK, LIFT

Note: (033)

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 01590400

TRUNNION-.50

Note: (031, 309)

$48.99

$

In Stock, only 4 left!

0

Ariens 01590400

TRUNNION-.50

Note: (033)

$48.99

$

In Stock, only 4 left!

0

19

Ariens 02762500

WMT, FRONT LIFT

Note: (031, 309)

$

$

Not available

Ariens 02779800

LIFT, FRONT (4O" DECK)

Note: (033)

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 02762600

WMT, REAR LIFT

$

$

Not available

21

Ariens 08333900

SPRING, EXTENSION

$

$

Not available

22

Ariens 06443800

WSHR,FLT .438X1.00X.160 ZCC

Note: (031, 309)

$

$

Not available

Ariens 06443800

WSHR,FLT .438X1.00X.160 ZCC

Note: (033)

$

$

Not available

23

Ariens 02779500

PIVOT, ROD

$

$

Not available

24

Ariens 06443800

WSHR,FLT .438X1.00X.160 ZCC

$

$

Not available

25

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

26

Ariens 01606551

BKT, SPRING ANCHOR

$22.99

$

Usually ships in 4-12 days

0

27

Ariens 08354300

SG-TENS .195X1.147X5.50

$39.99

$

Usually ships in 4-12 days

0

28

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

29

Ariens 06227700

@BLT-RDHDSQNK .38-16X1.25 BKZC
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

30

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0
