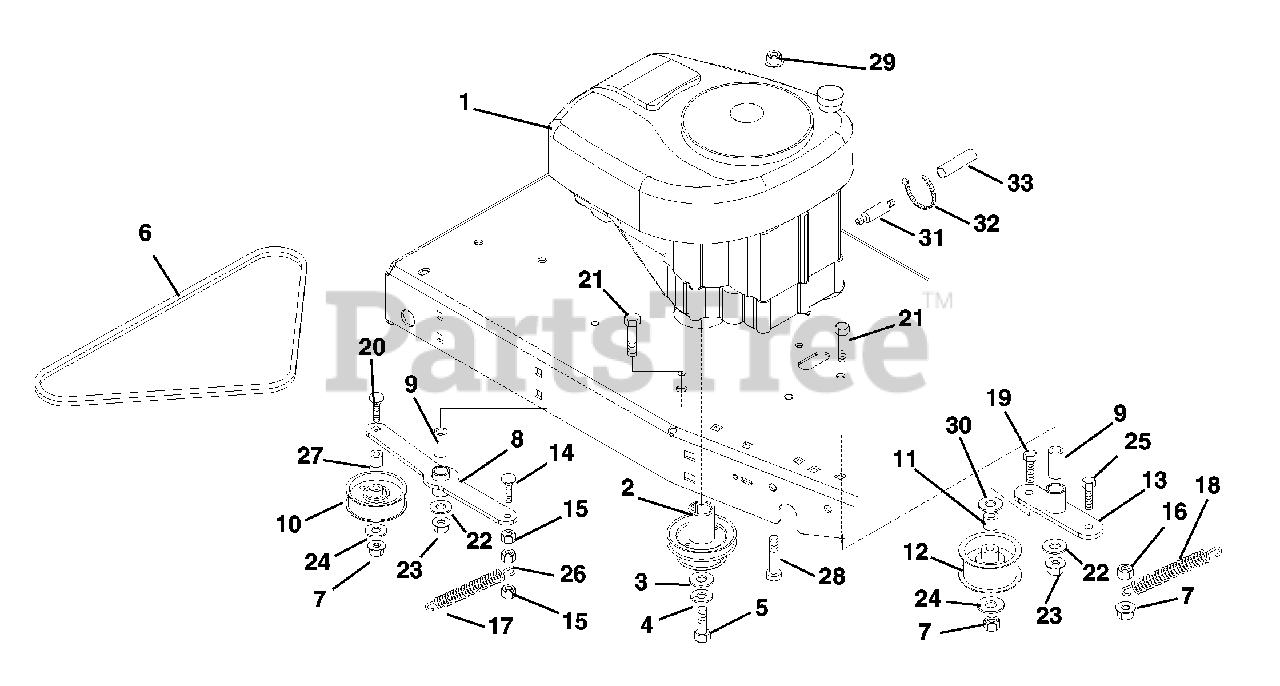

915032 (Sport ZT 1440) - Gravely 40" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 010000 & Above) Engine, Belts And Idlers Parts Diagram

40" Zero-Turn Mower, 14hp Briggs & Stratton

Engine, Belts And Idlers Parts Diagram

  • Title

1

Gravely 51509800

Engine Group-12 HP (08200001) (030)

Note: (08200001) (030)

$

$

Not available

1

Gravely 51509900

Engine Group-14 HP (08268600) (032)

Note: (08268600) (032)

$

$

Not available

2

Gravely 01594900

Sheave, Engine (030)

Note: (030)

$

$

Not available

2

Gravely 01602400

Sheave, Engine (032)

Note: (032)

$

$

Not available

3

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

5

Gravely 05965600

Bolt, Hex .44-20 x 1.50 Grade 5
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

6

Gravely 052776

V-Belt A-Section 14.50 x .516
(Superseded to 07223800)

$28.99

$

In Stock, only 2 left!

0

7

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01599000

Weldment, Idler

$

$

Not available

9

Gravely 05516400

Bushing, Sleeve .50 x .75 x 1.56

$5.99

$

In Stock, only 3 left!

0

10

Gravely 052062

Idler-Pulley Flat 3.25 x .625
(Superseded to 07320700)

$34.99

$

In Stock, only 1 left!

0

11

Gravely 01591000

Bushing, Idler Spacer

$15.99

$

In Stock, only 2 left!

0

12

Gravely 048870

Sheave 3.25 x 1.25
(Superseded to 07318400)

$22.99

$

In Stock, only 1 left!

0

13

Gravely 01598900

Bracket, Idler

$56.99

$

Usually ships in 4-12 days

0

14

Gravely 06219200

Bolt, Round Head Square Neck .31-18 x 1.25 Grade 5
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06535100

Nut, Locking Nylock Thin .50-13

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 015353

Spring, Tension .075 x .75 x 2.25
(Superseded to 08327600)

$17.99

$

In Stock, only 1 left!

0

18

Gravely 08311000

Spring, Tension .08 x .687 x 5.16

$14.99

$

In Stock, only 1 left!

0

19

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

20

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

21

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

22

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

28

Gravely 05972700

Screw, Socket Head Button Head .31-18 x 1.50 Grade 8

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06443800

Washer, Flat Steel .43 x 1.00 x .160 (031)

Note: (031)

$

$

Not available

31

Gravely 07067800

Valve, Oil Drain

$38.99

$

Usually ships in 4-12 days

0

32

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

33

Gravely 01590900

Tube, Oil Drain

$5.99

$

Usually ships in 4-12 days

0
