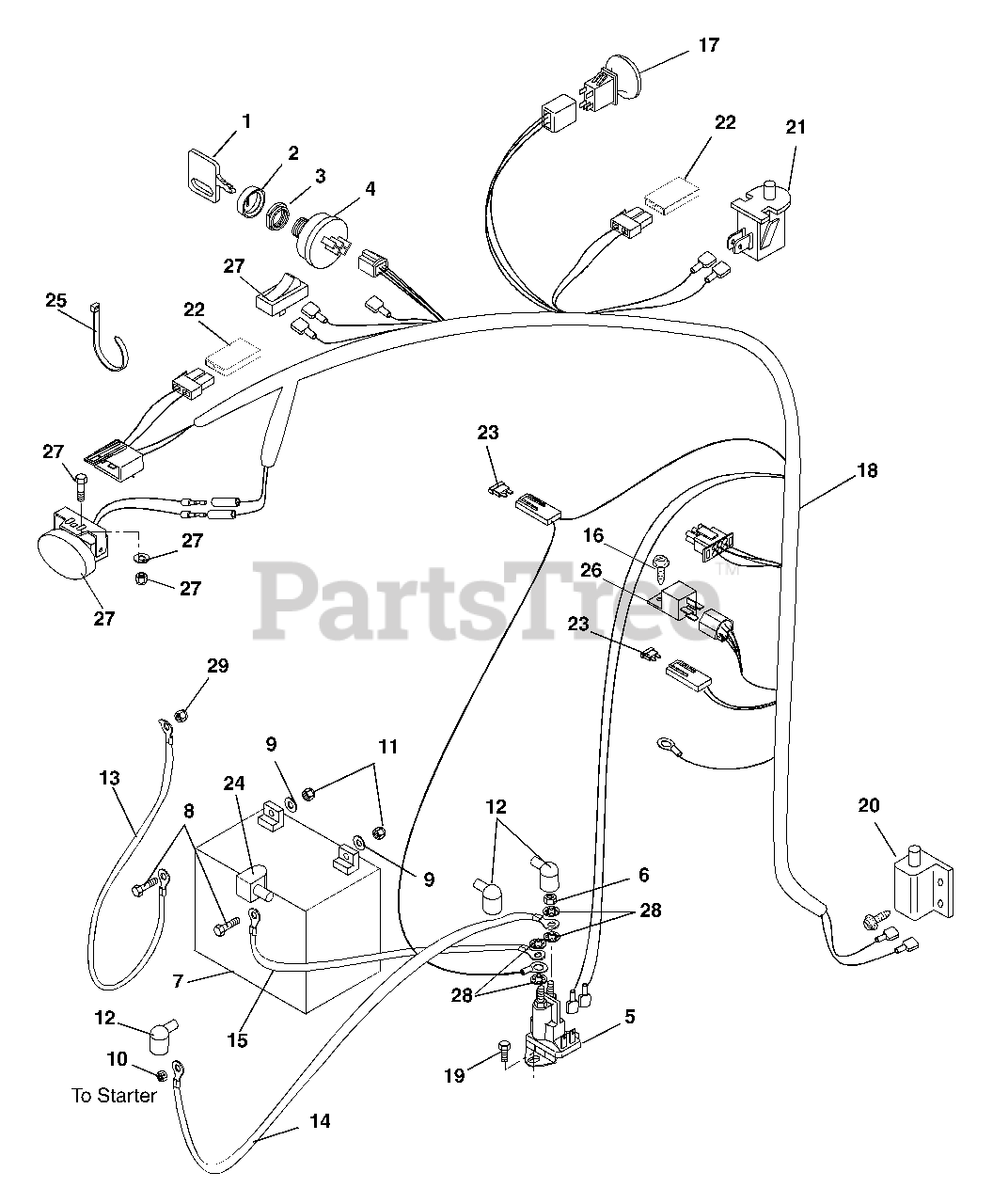

915032 (Sport ZT 1440) - Gravely 40" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 000101 - 009999) Electrical System Parts Diagram

40" Zero-Turn Mower, 14hp Briggs & Stratton

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

Key, with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

3

Gravely 045489

Nut, Panel .625-32
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

4

Gravely 01563700

Key Switch

$34.99

$

In Stock, only 1 left!

0

5

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

7

Battery, Sealed Maintenace Free U1-330

Battery, Sealed Maintenace Free U1-330

Note: (See Local Battery Supplier)

$

$

Not available

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 2 left!

0

13

Gravely 050383

Cable, Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 02727200

Starter Cable 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

15

Gravely 02727900

Starter Cable 16"

$35.99

$

In Stock, only 1 left!

0

16

Gravely 07414900

Screw, Tapping 10-24 x .375 Pan Head

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

18

Gravely 01597100

Harness, Zoom Sport 6 Pin
(Superseded to 01597101)

$212.99

$

Usually ships in 4-12 days

0

19

Gravely 07411600

Screw, Tapping .25-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 03657100

Switch, Single Pole (N.O.)

Note: (N.O.)

$9.49

$

In Stock, only 1 left!

0

21

Gravely 02754100

Switch, Snap Mounting (N.O.)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

22

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

23

Gravely 09351100

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

24

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

25

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

26

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

27

Gravely 72702700

Light Kit

Note: (Optional)

$

$

Not available

28

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

29

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+
