915032 (Sport ZT 1440) - Gravely 40" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 000101 - 009999) Deck Lift Parts Diagram

40" Zero-Turn Mower, 14hp Briggs & Stratton

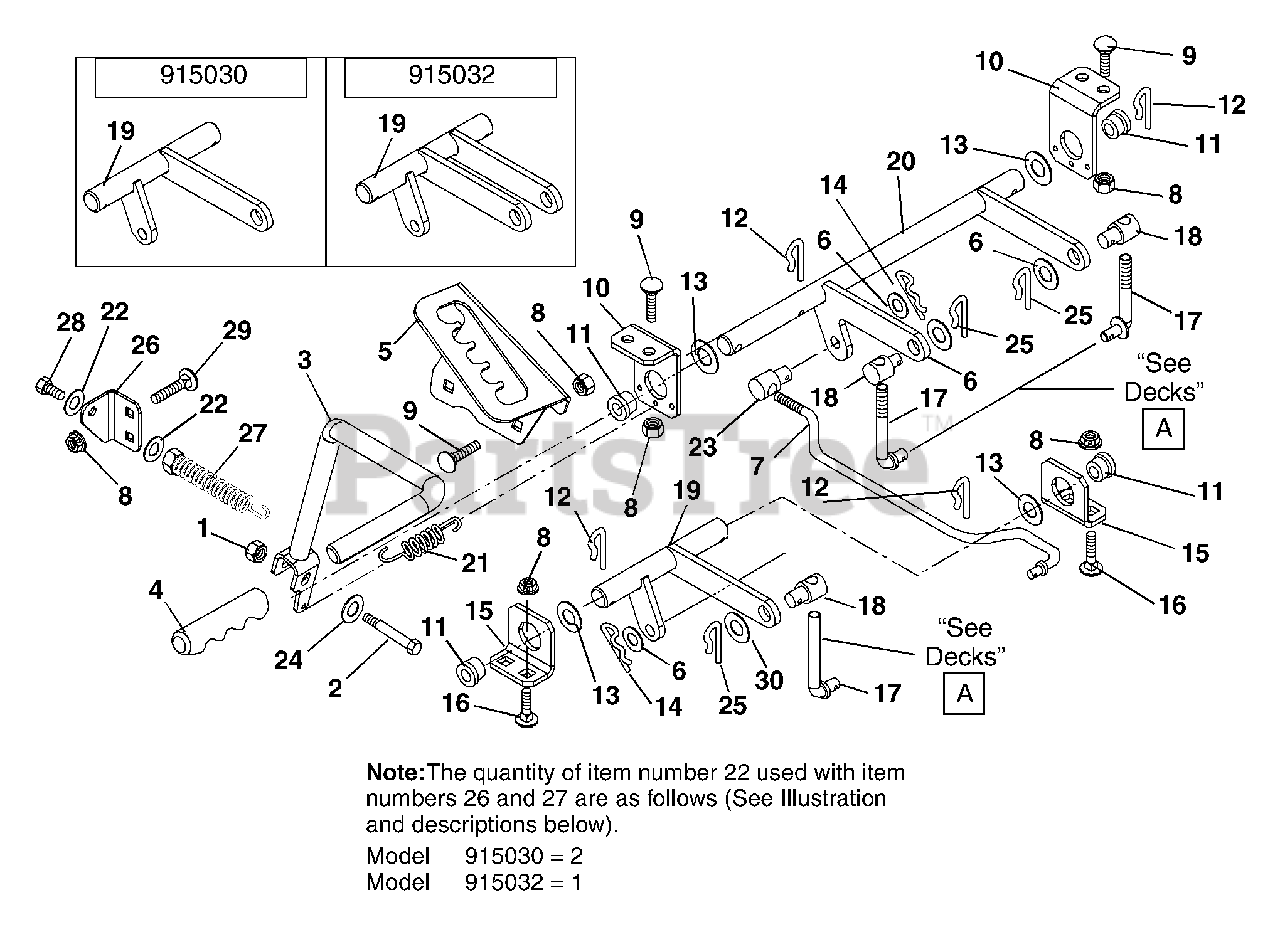

Deck Lift Parts Diagram

  • Title

1

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 05980300

Bolt, 1.25 Socket Shoulder Plain

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 01606851

Weldment, Lift Handle
(Superseded to 01606800)

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 07527500

Grip

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 01607351

Detent Plate

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 02776300

Rod, Deck Lift

$

$

Not available

8

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

10

Gravely 02762800

Bracket, Lift

$

$

Not available

11

Gravely 05503900

Bushing, Flange .75 x 1.00 x .625 x 1.25

$12.99

$

In Stock, Qty 9

0

12

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06439000

Washer-Flat-Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06714900

Pin, Hair #16

$0.99

$

In Stock, Qty 20+

0

15

Gravely 02762700

Bracket, Deck Pivot

$

$

Not available

16

Gravely 06226600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 12

0

17

Gravely 02778100

Rod, Link (030)

Note: (030)

$40.99

$

Usually ships in 4-12 days

0

17

Gravely 02778100

Rod, Link (032)

Note: (032)

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 01590400

Trunnion (030)

Note: (030)

$48.99

$

In Stock, only 4 left!

0

18

Gravely 01590400

Trunnion (032)

Note: (032)

$48.99

$

In Stock, only 4 left!

0

19

Gravely 02762500

Weldment, Front Lift (030)

Note: (030)

$

$

Not available

19

Gravely 02779800

Weldment, Front Lift (032)

Note: (032)

$34.99

$

Usually ships in 4-12 days

0

20

Gravely 02762600

Weldment, Lift

$

$

Not available

21

Gravely 08333900

Spring, Extension

$

$

Not available

22

Gravely 06443800

Washer, Flat Steel .43 x 1.00 x .16 (030)

Note: (030)

$

$

Not available

22

Gravely 06443800

Washer, Flat Steel .43 x 1.00 x .16 (032)

Note: (032)

$

$

Not available

23

Gravely 02779500

Pivot, Rod

$

$

Not available

24

Gravely 06443800

Washer, Flat Steel .43 x 1.00 x .160

$

$

Not available

25

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0

26

Gravely 01606551

Bracket, Spring Anchor

$22.99

$

Usually ships in 4-12 days

0

27

Gravely 08354300

Spring, Tension .195 x 1.15 x 5.50

$39.99

$

Usually ships in 4-12 days

0

28

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

29

Gravely 06227700

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06224100)

$2.49

$

In Stock, only 4 left!

0

30

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0
