915030 (Sport ZT 1232) - Gravely 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 000101 - 009999) Steering And Front Wheels Parts Diagram

32" Zero-Turn Mower, 12hp Briggs & Stratton

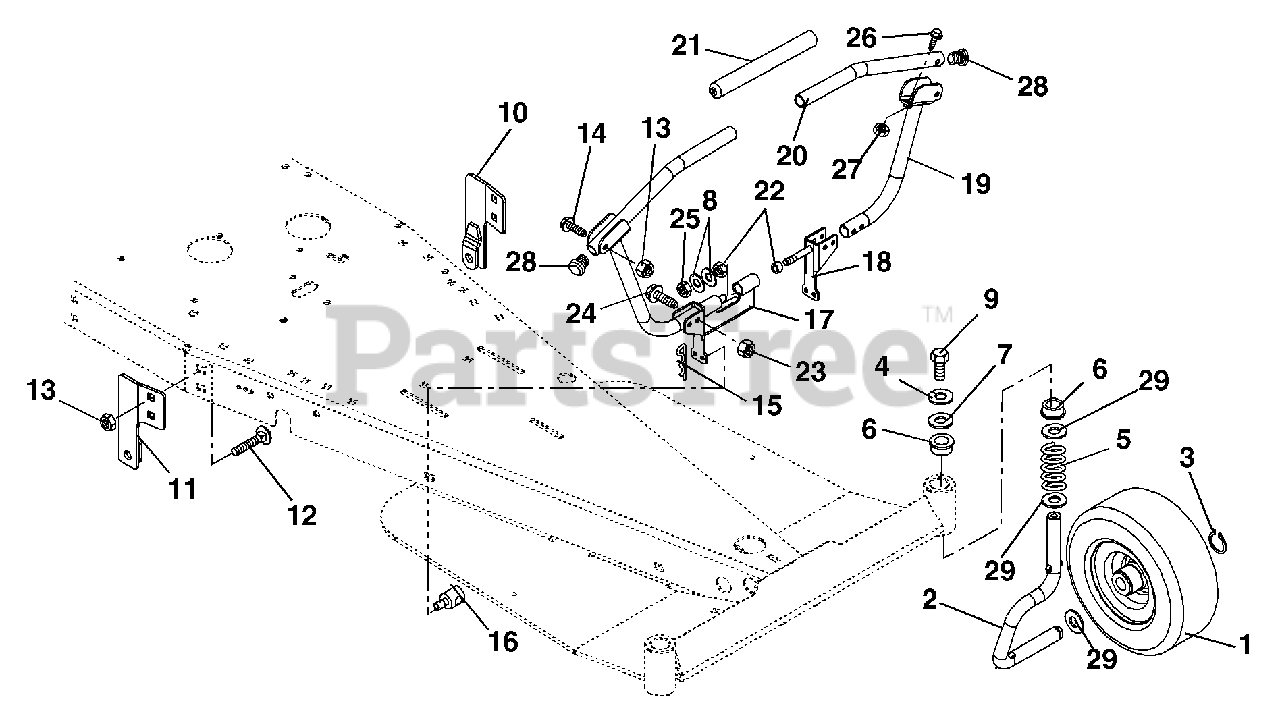

Steering And Front Wheels Parts Diagram

  • Title

1

Gravely 045205

Wheel 9 x 3.50
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

2

Gravely 01594800

Axle, Front Left

$

$

Not available

2

Gravely 01594700

Axle, Front Right

$

$

Not available

3

Gravely 036278

Ring, Retaining External .75 x .05
(Superseded to 05707400)

$2.49

$

In Stock, only 1 left!

0

4

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 02765800

Spring, Suspension

$68.99

$

In Stock, only 1 left!

0

6

Gravely 01591100

Bushing 1.00 x .75 x 1.00

$

$

Not available

7

Gravely 06442400

Washer, Flat Steel .406 x 1.38 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

8

Gravely 06418100

Washer, Hardened Steel .515 x .97 x .062

$3.99

$

In Stock, only 4 left!

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 02773851

Weldment, Deck Link Left Hand

$

$

Not available

11

Gravely 02773751

Weldment, Deck Link Right Hand

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 06226600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 12

0

13

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 01596400

Trunnion, Brake

$51.99

$

Usually ships in 4-12 days

0

17

Gravely 01595600

Weldment Steering Pivot

$

$

Not available

18

Gravely 01595700

Weldment Handlebar Pivot

$

$

Not available

19

Gravely 51511200

Upper/Lower Handlebar Kit (030 SN=101-5669, 032 SN=101-300)

Note: (030 SN=101-5669, 032 SN=101-300)

$

$

Not available

19

Gravely 01607151

Weldment Handlebar (030 SN=5670 & up, 032 SN=301 & up)

Note: (030 SN=5670 & up, 032 SN=301 & up)

$

$

Not available

20

Gravely 01604751

Handle Bar (Upper) (030 SN=101-5669, 032 SN=101-301

Note: (Upper) (030 SN=101-5669, 032 SN=101-301

$

$

Not available

20

Gravely 01607251

Handle Bar (Upper) (030 SN=5670 & up, 032 SN=301 & up)

Note: (Upper) (030 SN=5670 & up, 032 SN=301 & up)

$

$

Not available

21

Gravely 01570000

Grip, Handlebar

$17.99

$

In Stock, only 2 left!

0

22

Gravely 05503100

Bushing, Flange .50 x .75 x .75 x 1.00

$9.99

$

In Stock, only 4 left!

0

23

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

25

Gravely 06544000

Nut, Jam Nyloc .50-20 Grade 2
(Superseded to 06500818)

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 05972700

Screw, Socket Head Button Head .31-18 x 1.50 Grade 8 (030 SN=101-5669, 032 SN=101&up)

Note: (030 SN=101-5669, 032 SN=101&up)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 05980700

Screw-Socket Head .31-18 x 2.00 Grade 8 (030 SN=5670&up, 032 SN=5655&up)

Note: (030 SN=5670&up, 032 SN=5655&up)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 07533300

Plug, Handlebar

$2.49

$

In Stock, only 3 left!

0

29

Gravely 06427600

Washer, Flat Steel .70 x 1.470 x 134

$5.99

$

In Stock, only 1 left!

0
