915030 (Sport ZT 1232) - Gravely 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 000101 - 009999) Rear Wheel And Hydro Drive Parts Diagram

32" Zero-Turn Mower, 12hp Briggs & Stratton

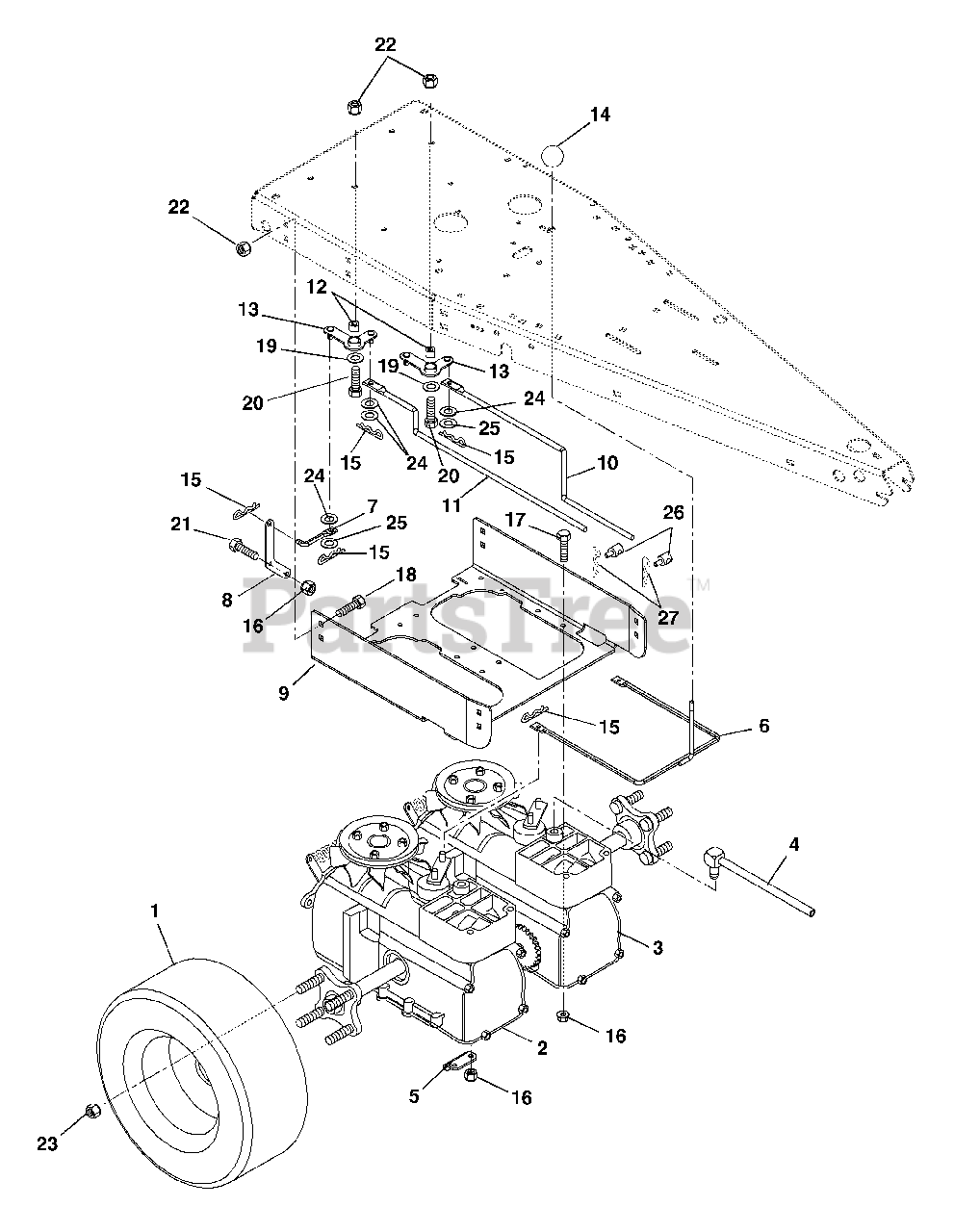

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Gravely 07159600

Tire/Wheel Assembly 18 x 6.50-8 2 Ply (032)

Note: (032)

$172.99

$

In Stock, only 1 left!

0

1

Gravely 07159800

Tire/Wheel Assembly 18 x 6.50-8 2 Ply (030)
(Superseded to 07100310)

Note: (030)

$113.99

$

Usually ships in 4-12 days

0

2

Gravely 01597800

Transaxle, Hydro Gear

$

$

Not available

3

Gravely 01597900

Transaxle, Hydro Gear

$

$

Not available

4

Gravely 01598200

Assembly, Breather

$

$

Not available

5

Gravely 01598051

Bracket, Axle Support

$

$

Not available

6

Gravely 01598100

Weldment, Dump Rod

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 01594600

Rod, Bell Crank

$

$

Not available

8

Gravely 01595900

Bracket

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 01595851

Cradle, Transmission

$131.99

$

Usually ships in 4-12 days

0

10

Gravely 01594500

Rod, Steering Left Hand

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 01594400

Rod, Steering Right Hand

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

13

Gravely 01595500

Weldment, Bell Crank

$54.99

$

Usually ships in 4-12 days

0

14

Gravely 07515900

Knob

$21.99

$

In Stock, only 2 left!

0

15

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

25

Gravely 06444300

Washer, Flat Steel .39 x .75 x .125

$7.99

$

In Stock, Qty 8

0

26

Gravely 01596400

Trunnion, Brake

$51.99

$

Usually ships in 4-12 days

0

27

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0
