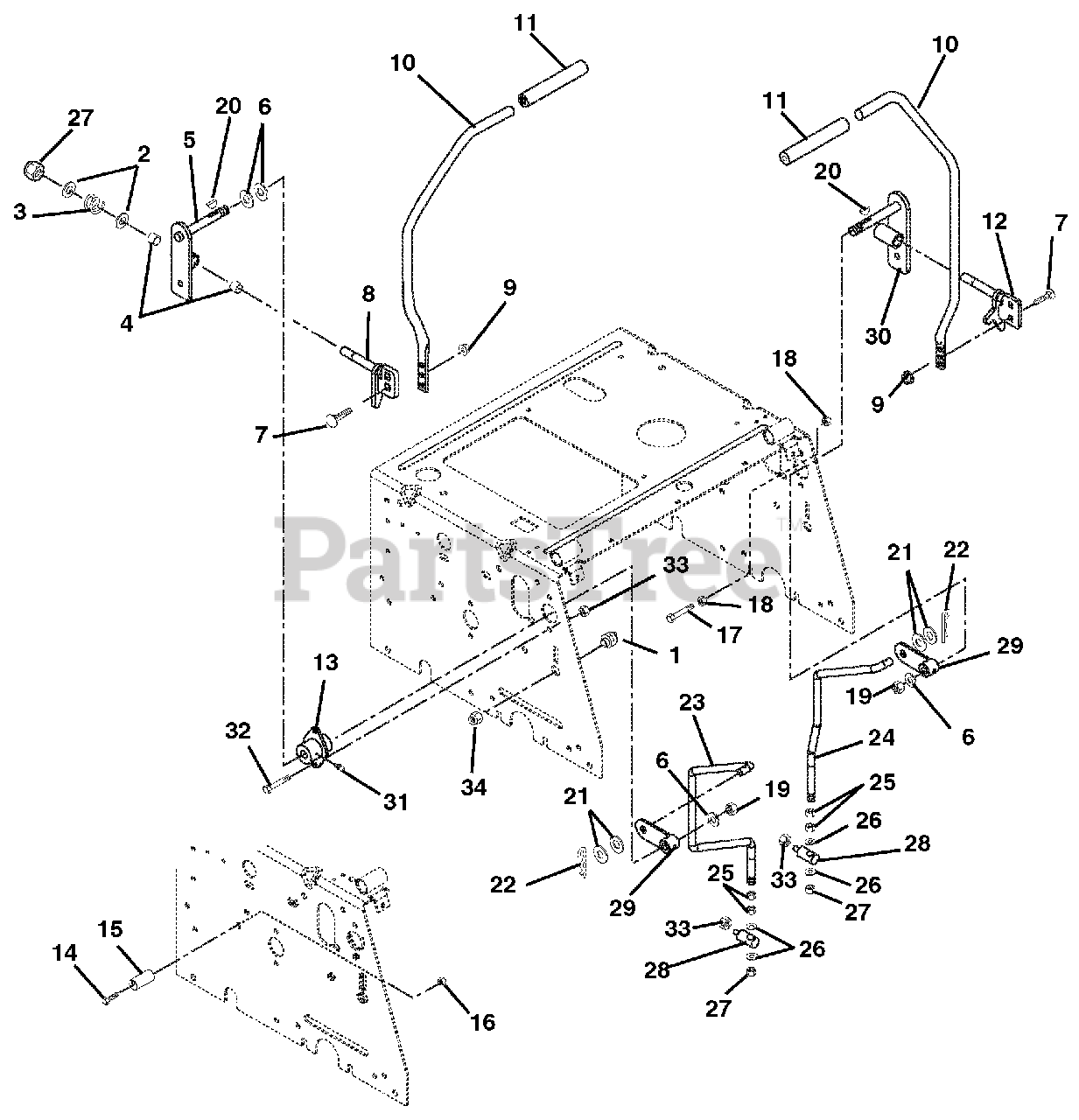

915026 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Controls S/N 001000 and up Parts Diagram

40" Zero-Turn Mower, 17hp Briggs & Stratton

Controls S/N 001000 and up Parts Diagram

  • Title

1

Gravely 02913100

Switch-Neutral

$45.99

$

In Stock, Qty 7

0

2

Gravely 00515700

Washer-Plastic .12 x .53 x 1.12

$

$

Not available

3

Gravely 00516200

Spring-Compression

$

$

Not available

4

Gravely 00510500

Bushing-Nylon .5 x .625 x .5

$

$

Not available

5

Gravely 01568100

Control Weldment Right Hand

$180.99

$

Usually ships in 4-12 days

0

6

Gravely 06442000

Washer-Flat, Steel .563 x 1.375 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 06209500

Bolt-Round Head Square Neck .31-18 x .88 Grade 5

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 01572100

Weldment-Lever Right Hand

$107.99

$

In Stock, only 1 left!

0

9

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 01569900

Handlebar-Large Frame

$

$

Not available

11

Gravely 01570000

Grip-Handlebar

$17.99

$

In Stock, only 2 left!

0

12

Gravely 01572200

Weldment-Lever Left Hand

$

$

Not available

13

Gravely 01522000

Bushing-Flanged

$34.99

$

In Stock, only 1 left!

0

14

Gravely 05962500

Bolt-Hex .31-18 x 3.00 Grade 5
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

15

Gravely 01556900

Eccentric

$

$

Not available

16

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06544000

Nut-Jam-Locking-Nylon .50-20 Grade 2
(Superseded to 06500818)

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 122547

Key-Woodruff .13 x .75

$

$

Not available

21

Gravely 415543

Washer-Flat-Steel .531 x 1.25 x .10
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

22

Gravely 06713500

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 01568700

Rod-Transaxle Right Hand

$

$

Not available

24

Gravely 01568800

Rod-Transaxle Left Hand

$68.99

$

Usually ships in 4-12 days

0

25

Gravely 06529300

Nut-Jam .50-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436600

Washer-Flat Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06535100

Nut-Locking Nylock Thin .50-13

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 01568600

Rod-Pivot

$51.99

$

Usually ships in 4-12 days

0

29

Gravely 01568300

Weldment-Pump

$

$

Not available

30

Gravely 01568200

Control Weldment Left Hand

$180.99

$

Usually ships in 4-12 days

0

31

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

32

Gravely 07049600

Bolt-Serrated Hex Flange Washer Head .31-18 x .75

$2.99

$

In Stock, Qty 5

0

33

Gravely 06543100

Nut-Locking-Center .312-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0
