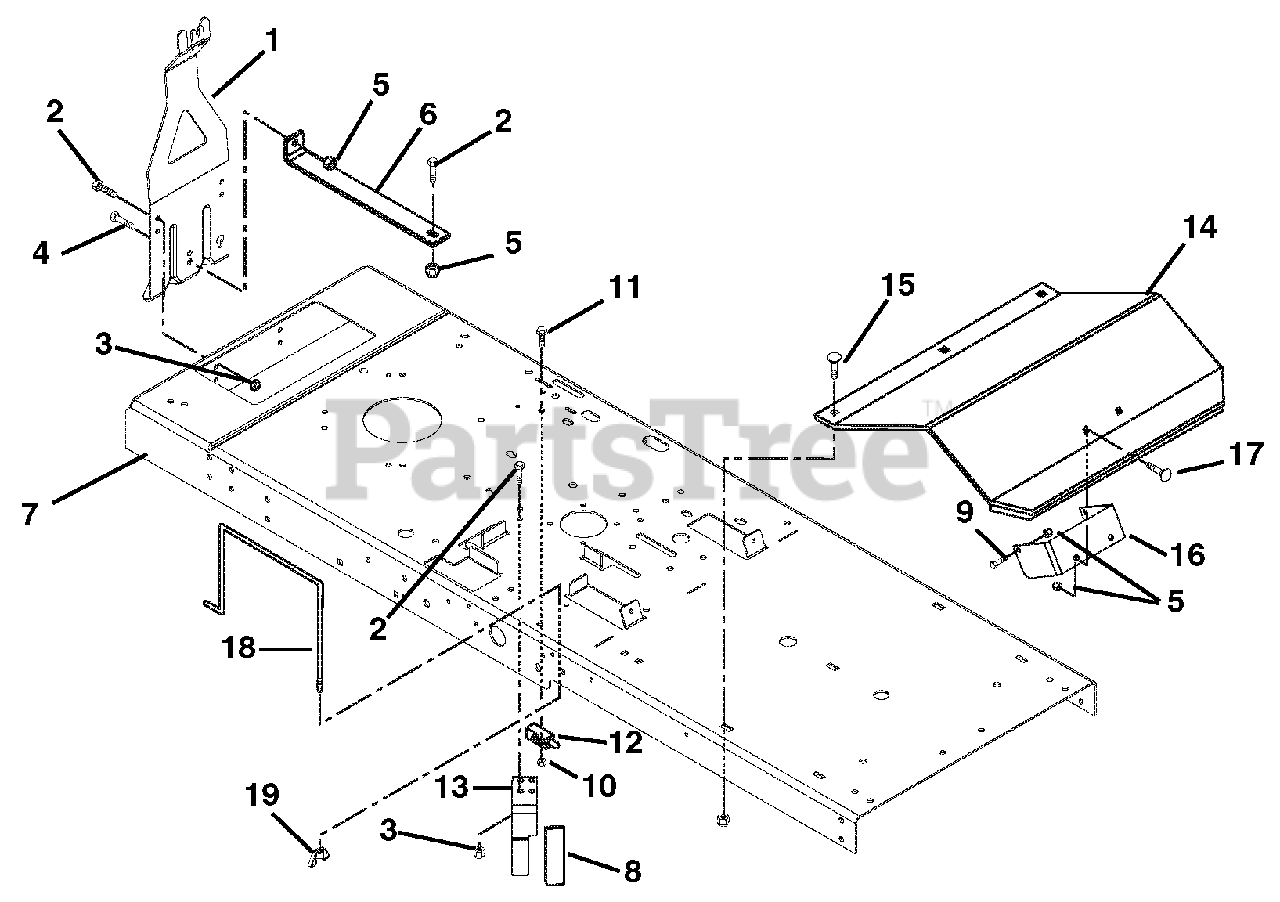

915025 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

Frame Parts Diagram

  • Title

1

Gravely 01553551

Hitch-Trailer

$

$

Not available

2

Gravely 07047100

Bolt Serrated Hex Flange Washer Head .31-18 x .62 Grade 5

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 07049900

Bolt-Serrated Hex Flange Washer Head .375-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01541200

Brace

Note: (024, 025, 026)

$

$

Not available

7

Gravely 01567851

Frame

$

$

Not available

8

Gravely 045374

Grip
(Superseded to 07509400)

$

$

Not available

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07049200

Bolt-Hex 10-24 x .75 Flat Washer Head

$

$

Not available

12

Gravely 03657100

Switch-Single Pole N.O.

$9.49

$

In Stock, only 2 left!

0

13

Gravely 01557851

Clutch Stop

$

$

Not available

14

Gravely 015380583

Footrest

$

$

Not available

15

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

16

Gravely 01526751

Bracket-Footrest

$18.99

$

Usually ships in 4-12 days

0

17

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 01533400

Rod-Battery

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0
