915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Transaxle And Wheels Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

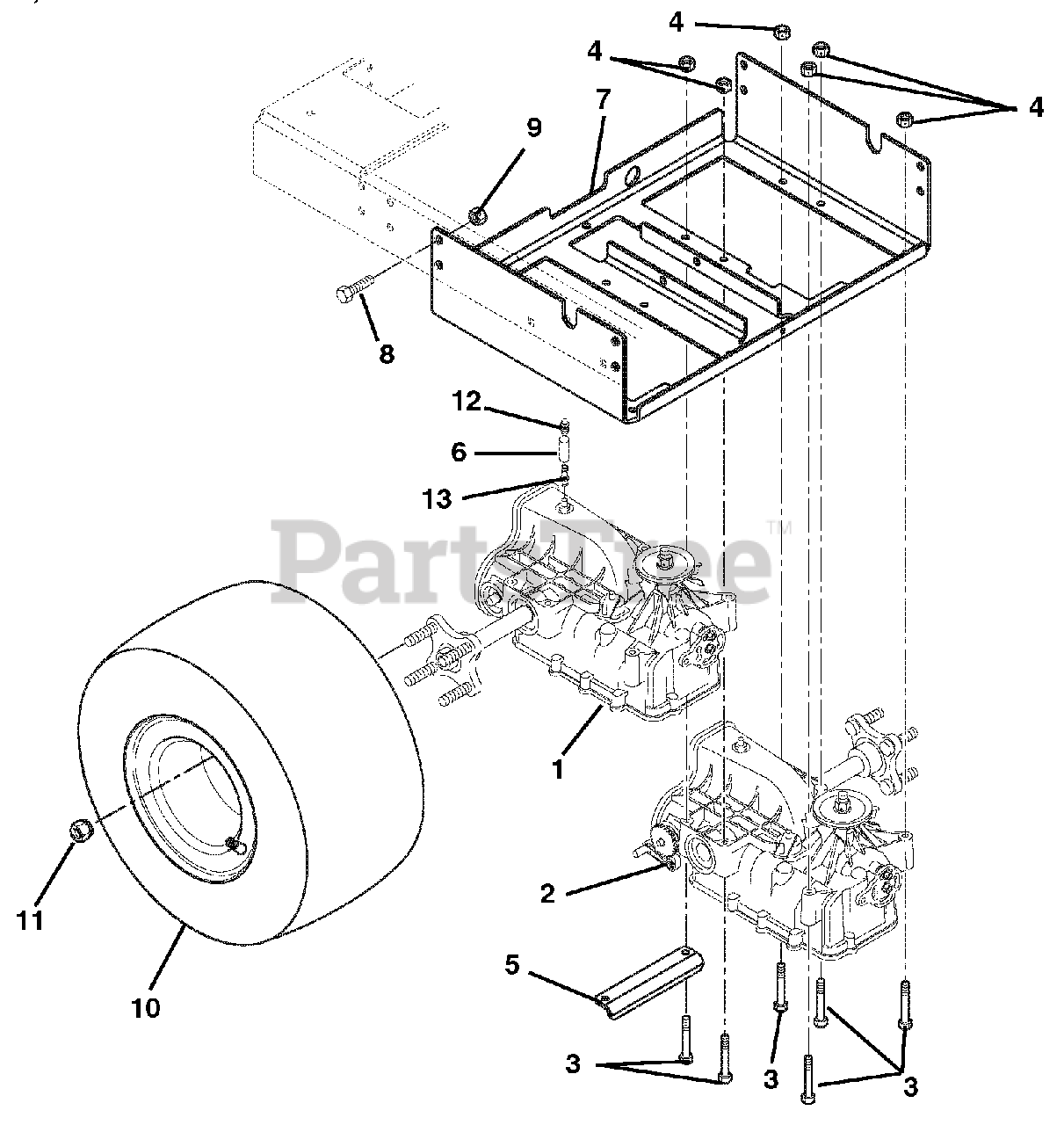

Transaxle And Wheels Parts Diagram

  • Title

1

Gravely 01568000

Transaxle Hydro-Gear Right Hand (S/N 001000 & up)

Note: (S/N 001000 & up)

$

$

Not available

1

Gravely 01560600

Transaxle Hydro-Gear Right Hand (S/N 000101 - 000999)
(Superseded to 51507400)

Note: (S/N 000101 - 000999)

$

$

Not available

2

Gravely 01567900

Transaxle Hydro-Gear Left Hand (S/N 001000 & up)

Note: (S/N 001000 & up)

$

$

Not available

2

Gravely 01561800

Transaxle Hydro-Gear Left Hand (S/N 000101 - 000999)
(Superseded to 51507300)

Note: (S/N 000101 - 000999)

$

$

Not available

3

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 01543951

Transaxle Bracket

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 01543100

Hose-Vent

$9.49

$

In Stock, only 2 left!

0

7

Gravely 01540951

Transmission Cradle

$

$

Not available

8

Gravely 07047100

Bolt Serrated Hex Flange Washer Head .31-18 x .62 Grade 5

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07144600

Tire/Wheel 18 x 8.50-8

$

$

Not available

10

Gravely 07144900

Rim for 18 x 8.50-8 Tire

$

$

Not available

10

Gravely 07145100

Tire 18 x 8.50-8
(Superseded to 07101220)

$113.99

$

In Stock, only 1 left!

0

11

Gravely 06535000

Nut-Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07026400

Cap-Vent 1/2" Hydro-Gear

$14.99

$

In Stock, only 2 left!

0

13

Gravely 07026300

Fitting-Straight 1/2" O-Ring Hydro-Gear

$23.99

$

In Stock, only 2 left!

0
