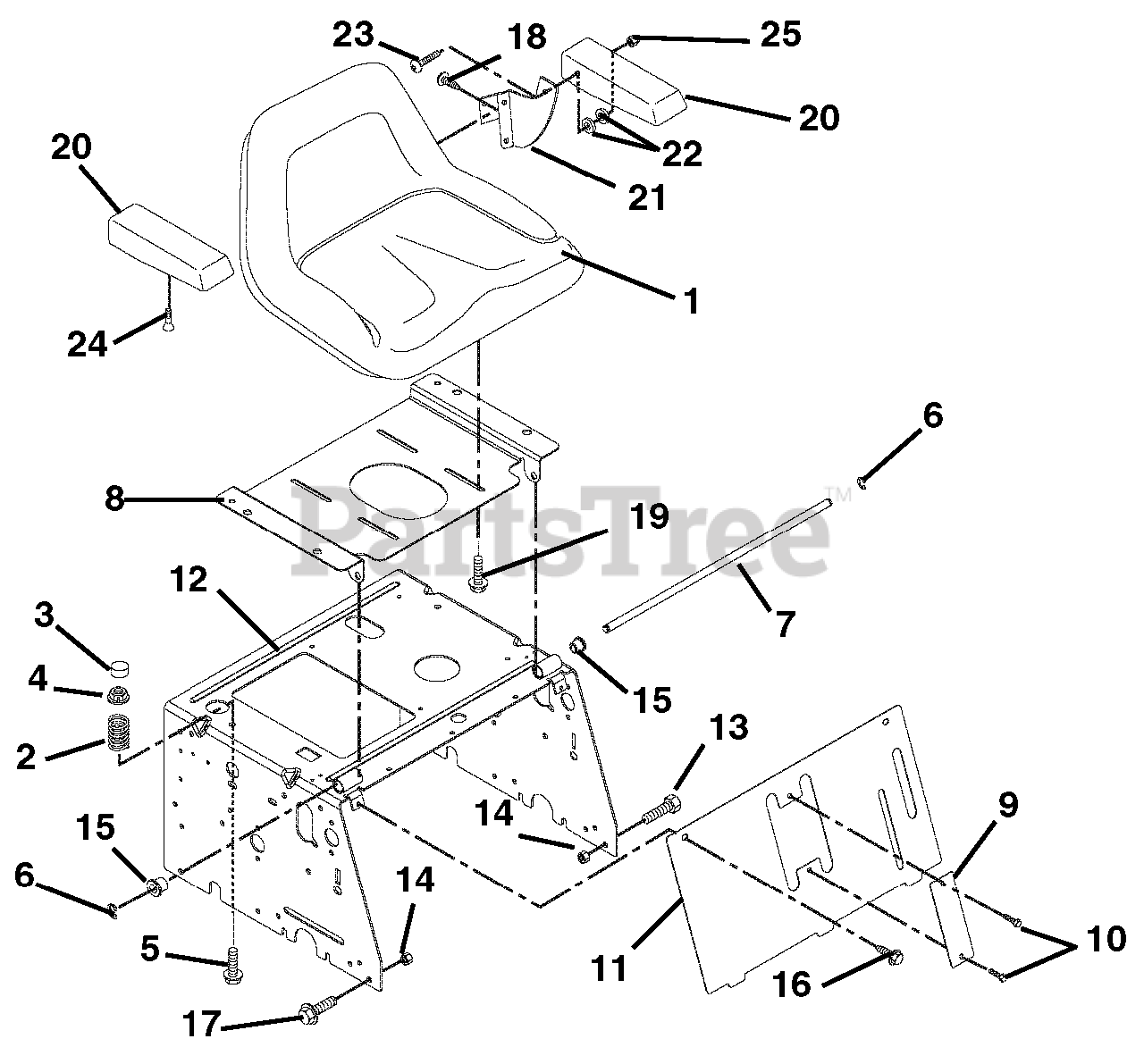

915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Seat And Support Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

Seat And Support Parts Diagram

  • Title

$

$

Not available

2

Gravely 00571600

Spring-Compression 2.9L x 2.02 OD

$

$

Not available

3

Gravely 00571500

Boot-Seat Spring

$

$

Not available

4

Gravely 06534800

Nut-Locking, Flange .375-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07028500

Bolt-Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05710200

Ring-Retaining-External .500 x .042

$0.99

$

In Stock, Qty 20+

0

7

Gravely 01168900

Axle-Front

$64.99

$

Usually ships in 4-12 days

0

8

Gravely 01554451

Plate-Seat

$

$

Not available

$

$

Not available

10

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 01556253

Panel-Weldment

$92.99

$

Usually ships in 4-12 days

0

12

Gravely 01567751

Support-Seat Weldment

$

$

Not available

13

Gravely 07028500

Bolt-Screw Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 034738

Bushing-Flange
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 07411500

Screw, Tapping .31-18 x .75
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07049900

Bolt-Serrated Hex Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 07416500

Screw-Round Head Socket Tapping .31-18 x .62 Grade 8

$

$

Not available

19

Gravely 07047100

Bolt Serrated Hex Flange Washer Head .31-18 x .62 Grade 5

$1.49

$

Usually ships in 4-12 days

0

20

Gravely 01552900

Arm Rest

$

$

Not available

21

Gravely 01553100

Bracket-Left Hand Armrest

$

$

Not available

21

Gravely 01553000

Bracket-Right Hand Armrest

$

$

Not available

22

$

$

Not available

23

Gravely 05977500

Bolt, Round Head Socket .38-16 x 1.50 Grade 8

$

$

Not available

24

Gravely 05977600

Bolt-Socket Flat Head .38-16 x .50

$

$

Not available

25

Gravely 06543800

Nut, .38-16 Low Crown Lock Acorn
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0
