915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Hydrostatic Transaxle - Left S/N 001000 and up Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

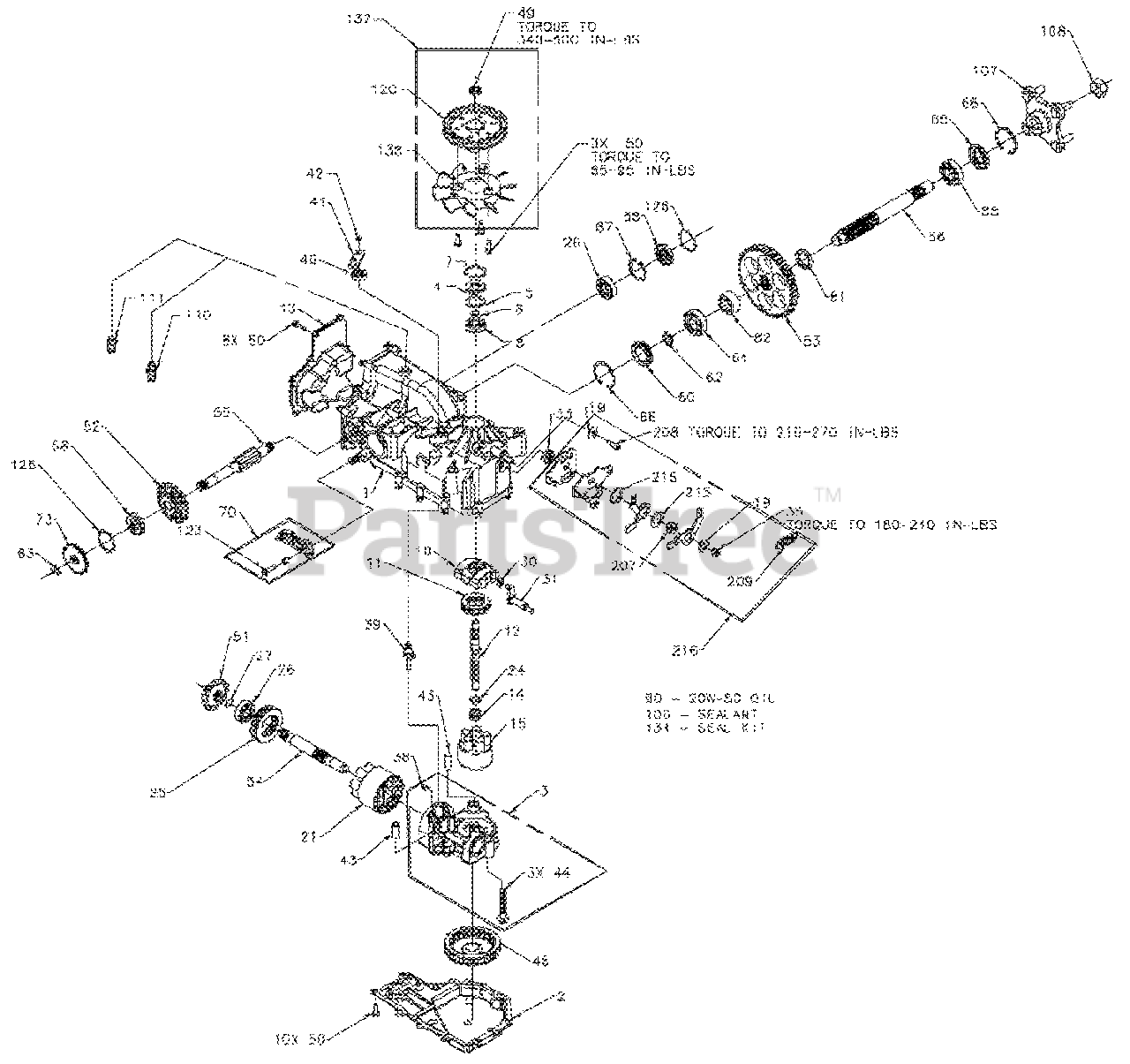

Hydrostatic Transaxle - Left S/N 001000 and up Parts Diagram

  • Title

1

Gravely N/A

Kit, Housing - Main

Note: Hydro-Gear p/n 51185

$

$

Currently unavailable

3

Gravely 21543917

Kit, Center Section

Note: Hydro-Gear p/n 70679

$

$

Not available

4

Gravely 21543998

Lip Seal

Note: Hydro-Gear p/n 9008000-0128

$

$

Not available

5

Gravely 21543964

Spacer

Note: Hydro-Gear p/n 2003018

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 08613300

Wire Retaining Ring

Note: Hydro-Gear p/n 2003016

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 08608800

Retaining Ring

Note: Hydro-Gear p/n 2003052

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 08613200

Ball Bearing

Note: Hydro-Gear p/n 2003043

$

$

Not available

10

Gravely 08609000

Variable Swashplate

Note: Hydro-Gear p/n 2003087

$

$

Not available

11

Gravely 08611000

Thrust Bearing .30 x .52 x .13

Note: Hydro-Gear p/n 50551

$

$

Not available

12

Gravely 21543719

Input Shaft

Note: Hydro-Gear p/n 50005

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 21543984

Cover, Back

Note: Hydro-Gear p/n 50891RM

$

$

Not available

14

Gravely 08621500

Spring, Block

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

18

Gravely 21543889

10 cc Cylinder Block

Note: Hydro-Gear p/n 70331

$101.99

$

Usually ships in 4-12 days

0

19

Gravely 08611200

Washer

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

21

Gravely N/A

21 cc Cylinder Block Assembly

Note: Hydro-Gear p/n 70082

$

$

Currently unavailable

24

Gravely 08609400

Washer, Block Thrust

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

25

Gravely 08611000

Thrust Bearing .42 x .68 x .15

Note: Hydro-Gear p/n 50552

$

$

Not available

26

Gravely 21543738

Ball Bearing

Note: Hydro-Gear p/n 50315

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 21543960

Wire Retaining Ring

Note: Hydro-Gear p/n 2000022

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 08610700

Slot Guide

Note: Hydro-Gear p/n 2000015

$

$

Not available

31

Gravely 08610800

Trunnion Arm

Note: Hydro-Gear p/n 50807

$57.99

$

Usually ships in 4-12 days

0

33

Gravely 21543997

Lip Seal

Note: Hydro-Gear p/n 9008000-0126

$

$

Not available

35

Gravely 21543740

Nut

Note: Hydro-Gear p/n 50317

$

$

Not available

38

Gravely 21543918

Kit, Bypass Plate

Note: Hydro-Gear p/n 70680

$

$

Not available

39

Gravely 08609800

Bypass Actuator

Note: Hydro-Gear p/n 2003555

$

$

Not available

40

Gravely 08613800

Lip Seal

Note: Hydro-Gear p/n 45074

$4.49

$

Usually ships in 4-12 days

0

41

Gravely 08611100

Bypass Arm

Note: Hydro-Gear p/n 50270

$

$

Not available

42

Gravely 08611400

Retaining Ring

Note: Hydro-Gear p/n 44870

$

$

Not available

43

Gravely 21543718

Pin

Note: Hydro-Gear p/n 50002

$

$

Not available

44

Gravely 21543721

Screw

Note: Hydro-Gear p/n 50016

$

$

Not available

46

Gravely 21543779

Filter

Note: Hydro-Gear p/n 50990

$71.99

$

Usually ships in 4-12 days

0

49

Gravely N/A

Nut, Hex Lock .50-20 with Nylon Insert

Note: Hydro-Gear p/n 51244

$

$

Currently unavailable

50

Gravely 21543759

Screw, .25-20 with Nylon Insert

Note: Hydro-Gear p/n 50752

$

$

Not available

51

Gravely 21543754

14 Teeth Bevel Gear

Note: Hydro-Gear p/n 50744

$

$

Not available

52

Gravely 21543755

19 Teeth Bevel Gear

Note: Hydro-Gear p/n 50745

$

$

Not available

53

Gravely 21543756

53 Teeth Spur Gear

Note: Hydro-Gear p/n 50746

$

$

Not available

54

Gravely 21543761

Motor Shaft

Note: Hydro-Gear p/n 50757

$67.99

$

Usually ships in 4-12 days

0

55

Gravely 21543827

Brake Shaft

Note: Hydro-Gear p/n 51298

$

$

Not available

56

Gravely 21543757

Axle Shaft

Note: Hydro-Gear p/n 50748

$156.99

$

In Stock, only 1 left!

0

57

Gravely 21543816

Seal, Lip 17 x 40 x 70

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

60

Gravely 21543780

Seal Plug - Side

Note: Hydro-Gear p/n 50995

$7.99

$

Usually ships in 4-12 days

0

62

Gravely 21543762

Retaining Ring - Axle

Note: Hydro-Gear p/n 50759

$

$

Not available

63

Gravely 21543800

Retaining Ring Kit

Note: Hydro-Gear p/n 51109

$2.49

$

Usually ships in 4-12 days

0

64

Gravely 21543752

Bearing - Ball 20 x 47 x 14 (6204)

Note: Hydro-Gear p/n 50740

$27.99

$

In Stock, only 1 left!

0

65

Gravely 21543752

Bearing - Ball 25 x 47 x 12 (6005)

Note: Hydro-Gear p/n 50740

$27.99

$

In Stock, only 1 left!

0

66

Gravely 21543758

Seal

Note: Hydro-Gear p/n 50751

$6.99

$

In Stock, only 1 left!

0

67

Gravely 21543741

Retaining Ring

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

68

Gravely 21543763

Retaining Ring - Axle

Note: Hydro-Gear p/n 50760

$3.49

$

In Stock, only 1 left!

0

70

Gravely 00372000

Brake Arm Service Assembly - Left Hand
(Superseded to 51514200)

Note: Hydro-Gear p/n 70391

$55.99

$

In Stock, only 1 left!

0

73

Gravely N/A

Brake Disc

Note: Hydro-Gear p/n 50314

$

$

Currently unavailable

80

Gravely N/A

20W - 50 Oil

Note: N/A

$

$

Currently unavailable

81

Gravely N/A

Axle Bushing

Note: Hydro-Gear p/n 50942-2

$

$

Currently unavailable

82

Gravely N/A

Axle Bushing

Note: Hydro-Gear p/n 50942-1

$

$

Currently unavailable

100

Gravely 21543771

Sealant

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

107

Gravely N/A

Hub Assembly

Note: Hydro-Gear p/n 70314

$

$

Currently unavailable

108

Gravely N/A

Nut, Hex .75-16

Note: Hydro-Gear p/n 50863

$

$

Currently unavailable

110

Gravely 07026300

Fitting, O-Ring Assembly

Note: Hydro-Gear p/n 70110

$23.99

$

In Stock, only 2 left!

0

111

Gravely 07026400

Cap Vent Assembly

Note: Hydro-Gear p/n 70109

$14.99

$

In Stock, only 2 left!

0

120

Gravely N/A

Kit, Seal

Note: Hydro-Gear p/n 50302

$

$

Currently unavailable

123

Gravely 21543791

Screw, Hex Washer Head .25-20 x .875

Note: Hydro-Gear p/n 51076

$3.49

$

Usually ships in 4-12 days

0

126

Gravely 21543828

Retaining Ring

Note: Hydro-Gear p/n 51316

$

$

Not available

134

Gravely 21543905

Kit, Seal

Note: Hydro-Gear p/n 70553

$

$

Not available

137

Gravely N/A

Kit, Fan /Pulley

Note: Hydro-Gear p/n 01569100

$

$

Currently unavailable

207

Gravely N/A

Spacer, RTN

Note: Hydro-Gear p/n 51396

$

$

Currently unavailable

208

Gravely 21543832

Screw, .938-24 x .75 (Patch)

Note: Hydro-Gear p/n 51400

$

$

Not available

209

Gravely N/A

Spring, Extension

Note: Hydro-Gear p/n 51399

$

$

Currently unavailable

215

Gravely 21543834

Washer, Nylon

Note: Hydro-Gear p/n 51408

$

$

Not available

216

Gravely 21543910

Kit, RTN

Note: Hydro-Gear p/n 70609

$

$

Not available
