915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Hydrostatic Transaxle - Left S/N 000101 - 000999 Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

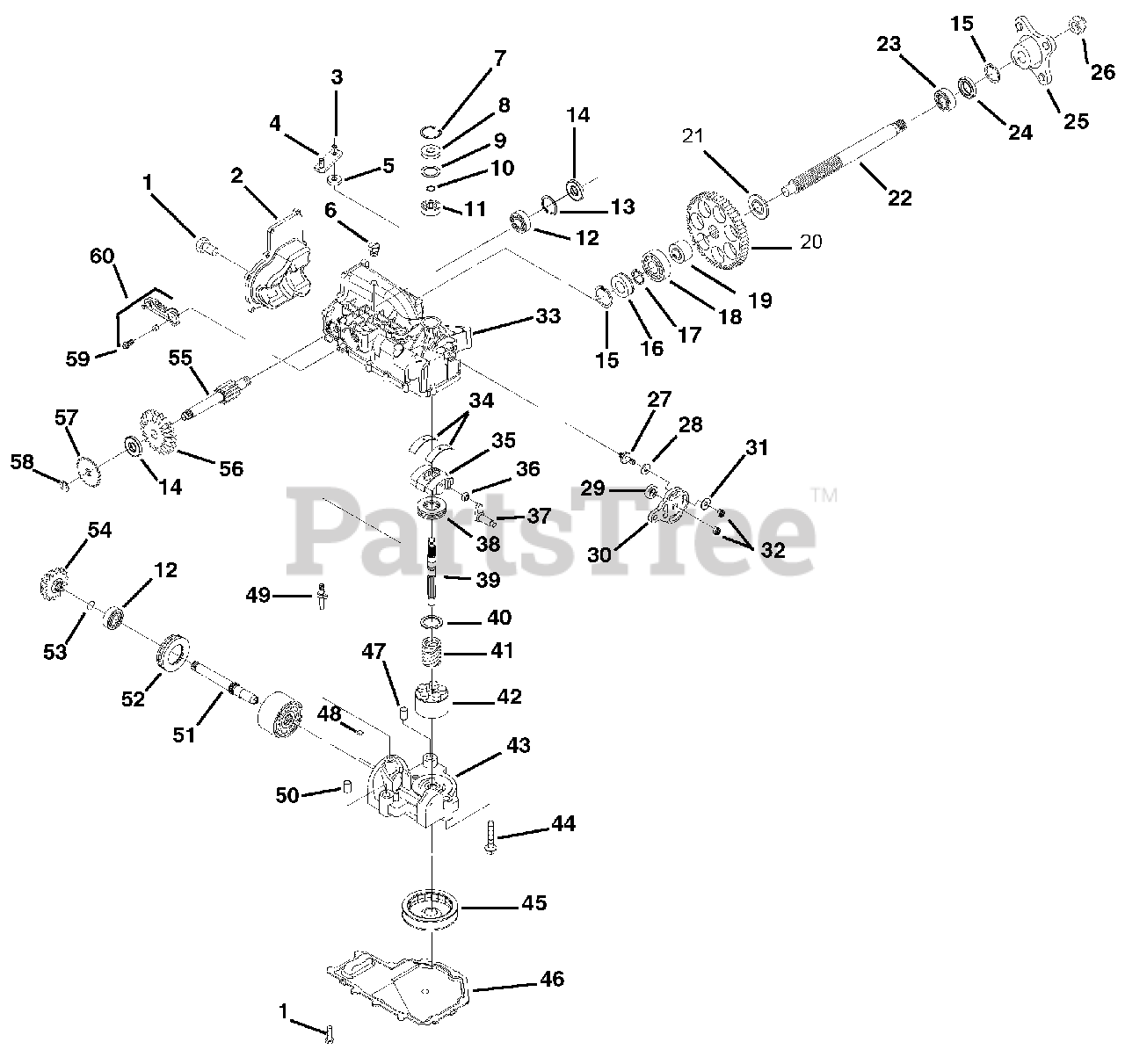

Hydrostatic Transaxle - Left S/N 000101 - 000999 Parts Diagram

  • Title

1

Gravely N/A

Screw .25-20 x .75

Note: Hydro-Gear p/n 50437

$

$

Currently unavailable

2

Gravely 21543984

Cover-Back

Note: Hydro-Gear p/n 50891RM

$

$

Not available

3

Gravely 08611400

Ring-Retaining

Note: Hydro-Gear p/n 44870

$

$

Not available

4

Gravely 08611100

Arm-Bypass

Note: Hydro-Gear p/n 50270

$

$

Not available

5

Gravely 08613800

Seal-Lip

Note: Hydro-Gear p/n 45074

$4.49

$

Usually ships in 4-12 days

0

6

Gravely N/A

Plug-Plastic

Note: Hydro-Gear p/n 9005200-5600

$

$

Currently unavailable

7

Gravely 08608800

Ring-Retaining

Note: Hydro-Gear p/n 2003052

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 21543998

Seal-Lip

Note: Hydro-Gear p/n 9008000-0128

$

$

Not available

9

Gravely 21543964

Spacer

Note: Hydro-Gear p/n 2003018

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 08613300

Ring-Wire Retaining

Note: Hydro-Gear p/n 2003016

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 08613200

Bearing-Ball

Note: Hydro-Gear p/n 2003043

$

$

Not available

12

Gravely 21543738

Bearing-Ball

Note: Hydro-Gear p/n 50315

$19.99

$

Usually ships in 4-12 days

0

13

Gravely 21543741

Ring-Retaining

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

14

Gravely N/A

Seal-Brake Shaft

Note: Hydro-Gear p/n 50735

$

$

Currently unavailable

15

Gravely 21543763

Ring-Retaining - Axle

Note: Hydro-Gear p/n 50760

$3.49

$

In Stock, only 1 left!

0

16

Gravely 21543780

Seal-Plug - Side

Note: Hydro-Gear p/n 50995

$7.99

$

Usually ships in 4-12 days

0

17

Gravely 21543762

Ring-Retaining - Axle

Note: Hydro-Gear p/n 50759

$

$

Not available

18

Gravely 21543753

Bearing-Ball 20 x 47 x 14

Note: Hydro-Gear p/n 50743

$

$

Not available

19

Gravely N/A

Bushing-Axle

Note: Hydro-Gear p/n 50942-1

$

$

Currently unavailable

20

Gravely 21543756

Gear-Spur 53T

Note: Hydro-Gear p/n 50746

$

$

Not available

21

Gravely N/A

Bushing-Axle

Note: Hydro-Gear p/n 50942-2

$

$

Currently unavailable

22

Gravely 21543757

Shaft-Axle

Note: Hydro-Gear p/n 50748

$156.99

$

In Stock, only 1 left!

0

23

Gravely 21543752

Bearing-Ball 25 x 47 x 12

Note: Hydro-Gear p/n 50740

$27.99

$

In Stock, only 1 left!

0

24

Gravely 21543758

Seal

Note: Hydro-Gear p/n 50751

$6.99

$

In Stock, only 1 left!

0

25

Gravely N/A

Assembly-Hub

Note: Hydro-Gear p/n 70314

$

$

Currently unavailable

26

Gravely N/A

Nut-Hex 3/4-16

Note: Hydro-Gear p/n 50863

$

$

Currently unavailable

27

Gravely 08611000

Stud-Short 5/16-24

Note: Hydro-Gear p/n 50426

$

$

Not available

28

Gravely 08613000

Friction Puck

Note: Hydro-Gear p/n 50281

$

$

Not available

29

Gravely N/A

Seal, Lip

Note: Hydro-Gear p/n 90080000-0126

$

$

Currently unavailable

30

Gravely N/A

Arm-Control

Note: Hydro-Gear p/n 50749

$

$

Currently unavailable

31

Gravely 08611200

Washer

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 21543740

Nut

Note: Hydro-Gear p/n 50317

$

$

Not available

33

Gravely N/A

Assembly-Upper Housing

Note: Hydro-Gear p/n 70329

$

$

Currently unavailable

34

Gravely N/A

Bearing-Cradle

Note: Hydro-Gear p/n 2003023

$

$

Currently unavailable

35

Gravely 08609000

Variable Swashplate

Note: Hydro-Gear p/n 2003087

$

$

Not available

36

Gravely 08610700

Slot Guide

Note: Hydro-Gear p/n 2000015

$

$

Not available

37

Gravely 08610800

Arm-Trunnion

Note: Hydro-Gear p/n 50807

$57.99

$

Usually ships in 4-12 days

0

38

Gravely 08611000

Bearing-Thrust 30 x 52 x 13

Note: Hydro-Gear p/n 50551

$

$

Not available

39

Gravely 21543719

Shaft-Input

Note: Hydro-Gear p/n 50005

$90.99

$

Usually ships in 4-12 days

0

40

Gravely 08609400

Washer-Block Thrust

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

41

Gravely 08621500

Spring-Block

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

42

Gravely 21543889

Assembly-Cylinder Block 10cc

Note: Hydro-Gear p/n 70331

$101.99

$

Usually ships in 4-12 days

0

43

Gravely N/A

Assembly-Center Section

Note: Hydro-Gear p/n 70340

$

$

Currently unavailable

44

Gravely 21543721

Screw

Note: Hydro-Gear p/n 50016

$

$

Not available

45

Gravely 21543779

Filter

Note: Hydro-Gear p/n 50990

$71.99

$

Usually ships in 4-12 days

0

46

Gravely 21543983

Housing-Lower

Note: Hydro-Gear p/n 50890RM

$

$

Not available

47

Gravely 21543718

Pin-Alignment

Note: Hydro-Gear p/n 50002

$

$

Not available

48

Gravely N/A

Bypass Plate

Note: Hydro-Gear p/n 2003554

$

$

Currently unavailable

49

Gravely 08609800

Bypass Actuator

Note: Hydro-Gear p/n 2003555

$

$

Not available

50

Gravely N/A

Assembly-Cylinder Block 21cc

Note: Hydro-Gear p/n 70082

$

$

Currently unavailable

51

Gravely 21543761

Shaft-Motor

Note: Hydro-Gear p/n 50757

$67.99

$

Usually ships in 4-12 days

0

52

Gravely 08611000

Bearing-Thrust 42 x 68 x 16

Note: Hydro-Gear p/n 50552

$

$

Not available

53

Gravely 21543960

Ring-Wire Retaining

Note: Hydro-Gear p/n 2000022

$1.99

$

Usually ships in 4-12 days

0

54

Gravely 21543754

Gear-Bevel 14T

Note: Hydro-Gear p/n 50744

$

$

Not available

55

Gravely N/A

Kit, Brake Shaft

Note: Hydro-Gear p/n 70393

$

$

Currently unavailable

56

Gravely 21543755

Gear-Bevel 19T

Note: Hydro-Gear p/n 50745

$

$

Not available

57

Gravely 21543760

Brake Disc

Note: Hydro-Gear p/n 50754

$

$

Not available

58

Gravely N/A

Ring-Retaining

Note: Hydro-Gear p/n 70394

$

$

Currently unavailable

59

Gravely 21543791

Screw-He-Washer-Head .25-20 x .875

Note: Hydro-Gear p/n 51076

$3.49

$

Usually ships in 4-12 days

0

60

Gravely 00372000

Assembly-Left Hand Brake Arm
(Superseded to 51514200)

Note: Hydro-Gear p/n 70391

$55.99

$

In Stock, only 1 left!

0
