915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust And Belts Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

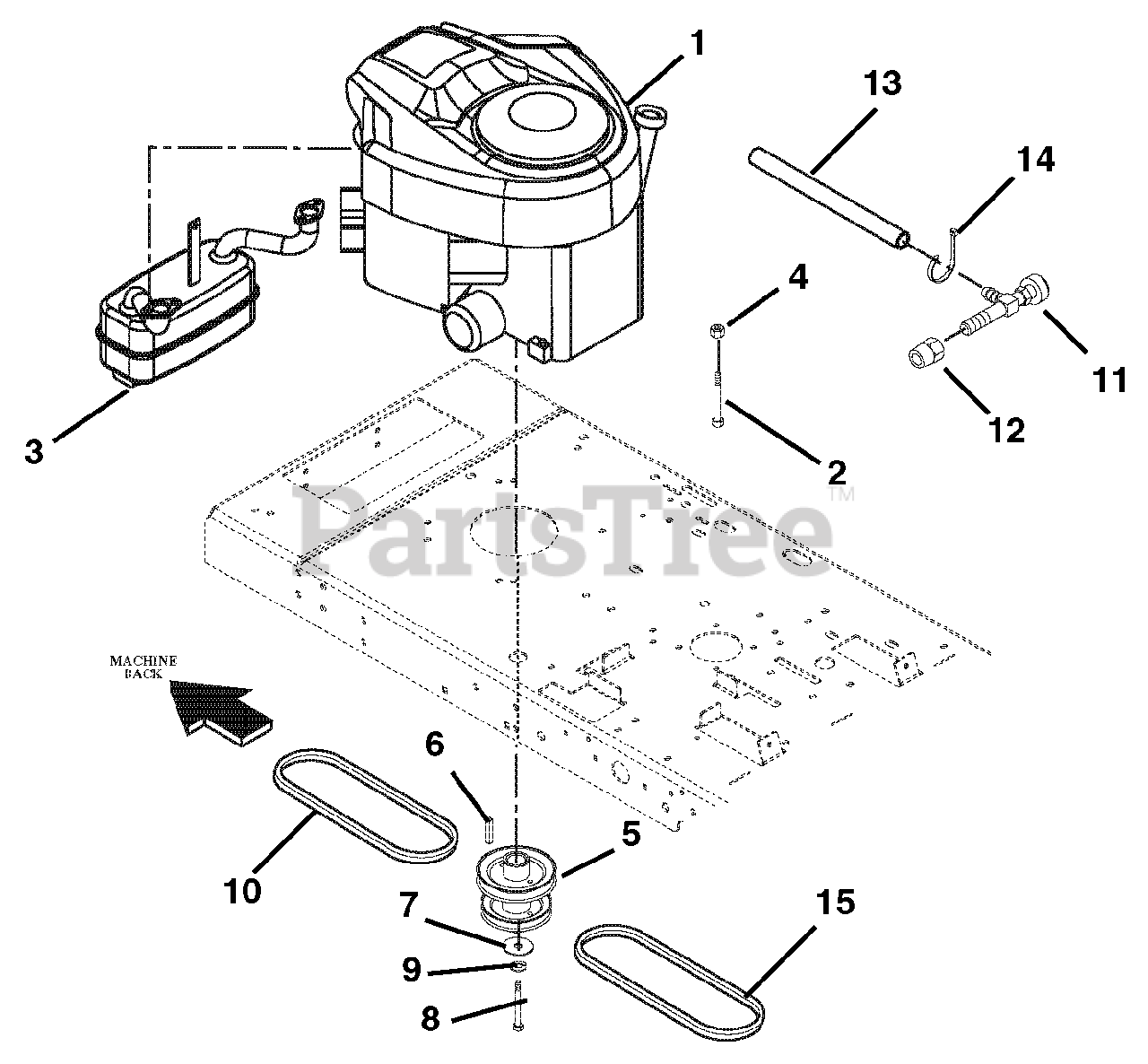

Engine, Exhaust And Belts Parts Diagram

  • Title

1

Gravely 51507100

Engine Group - 20HP Gravely

Note: (025)

$

$

Not available

1

Gravely 51506900

Engine Group - 17HP Gravely

Note: (024)

$

$

Not available

2

Gravely 07415300

Screw-Tapping .31-18 x 1.50 Hex Washer Head

$

$

Not available

3

Gravely 01557000

Muffler Assembly

$155.99

$

Usually ships in 4-12 days

0

4

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 01557700

Engine Sheave 4.50

$104.99

$

In Stock, only 2 left!

0

6

Gravely 06602600

Key-Square .25 x 2.50 x .25

$5.99

$

In Stock, only 3 left!

0

7

Gravely 06443600

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

8

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

9

Gravely 06309300

Washer-Lock .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

10

Gravely 07213600

V-Belt, Transmission Drive

$38.99

$

In Stock, only 1 left!

0

11

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

12

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 01523400

Tube, Oil Drain

$

$

Not available

14

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

15

Gravely 07235700

Belt-5L x 47.1 Engine to Jackshaft

$51.99

$

Usually ships in 4-12 days

0
