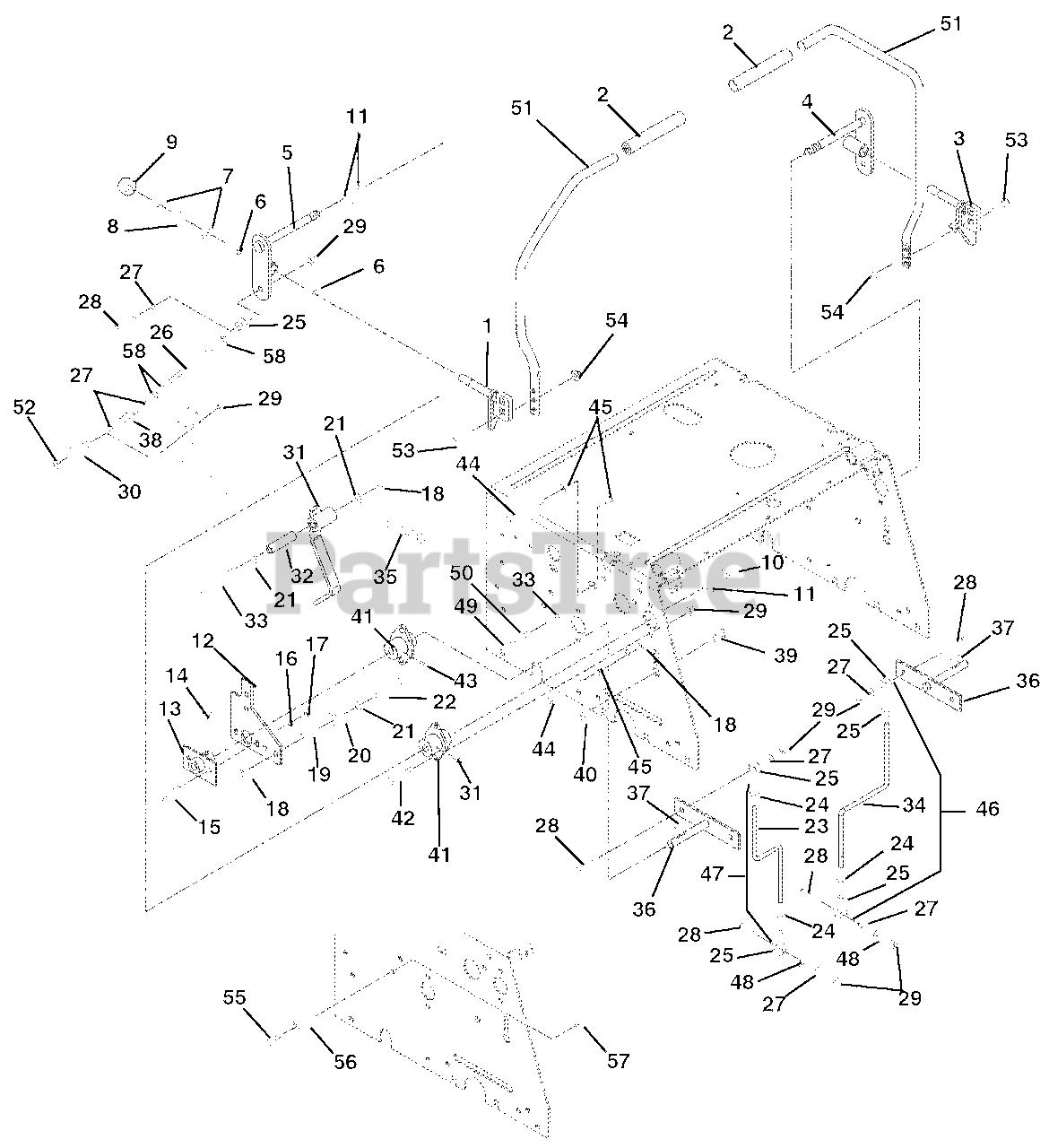

915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Controls S/N 000101 - 000999 Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

Controls S/N 000101 - 000999 Parts Diagram

  • Title

1

Gravely 01547200

Weldment-Lever Right Hand
(Superseded to 01572100)

$107.99

$

In Stock, only 1 left!

0

2

Gravely 01568500

Grip-Handlebar

$

$

Not available

3

Gravely 01547300

Weldment-Lever Left Hand
(Superseded to 01572200)

$

$

Not available

4

Gravely 01538900

Weldment-Rod Left Hand

$

$

Not available

5

Gravely 01538800

Weldment-Tube Right Hand

$

$

Not available

6

Gravely 00510500

Bushing-Nylon .5 x .625 x .5

$

$

Not available

7

Gravely 00515700

Washer-Plastic .12 x .53 x 1.12

$

$

Not available

8

Gravely 00516200

Spring-Compression

$

$

Not available

9

Gravely 06528200

Nut-Locking Cone .50-13

$3.99

$

In Stock, only 3 left!

0

10

Gravely 06530000

Nut-Locking-Center .50-20

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06442000

Washer-Flat, Steel .563 x 1.375 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 01539700

Arm-Speed Control

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 01525500

Arm-Speed Control

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06437300

Washer-Flat Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09107200

Hub-Bearing Mount

$

$

Not available

20

Gravely 05408000

Bearing-Ball .500 x 1.375 x .437

$5.99

$

In Stock, only 4 left!

0

21

Gravely 06436200

Washer-Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

23

Gravely 01539900

Rod-Transaxle Right Hand
(Superseded to 01542800)

$

$

Not available

24

Gravely 06536700

Nut-Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

25

Gravely 01542600

Rod-End-Female .312
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

26

Gravely 01542500

Rod

$

$

Not available

27

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 01539000

Rod-Pivot

$

$

Not available

31

Gravely 09107400

Weldment-Neutral Detent

$

$

Not available

32

Gravely 08831500

Bushing-Sleeve .385 x .610 x 1.80

$5.99

$

In Stock, only 2 left!

0

33

Gravely 05961400

Bolt-Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

34

Gravely 01539800

Rod-Transaxle Left Hand
(Superseded to 01542700)

$

$

Not available

35

Gravely 08320200

Spring, Tension .085 x .60 x 5.13

$13.99

$

Usually ships in 4-12 days

0

36

Gravely 01541100

Weldment-Pump

$6.99

$

Usually ships in 4-12 days

0

37

Gravely 06608600

Key-Woodruff .13 x .75

$2.99

$

Usually ships in 4-12 days

0

38

Gravely 08333400

Spring

$

$

Not available

39

Gravely 02913100

Switch-Neutral Start

$45.99

$

In Stock, Qty 7

0

40

Gravely 07015100

Nut-Stamped .56-18

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 01522000

Bushing-Flanged

$34.99

$

In Stock, only 1 left!

0

42

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

44

Gravely 05957800

Bolt-Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

45

Gravely 06529400

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 01542800

Rod Assembly-Transaxle Right Hand

Note: (Contains Item 23 & two each of Items 25 & 25)

$

$

Not available

47

Gravely 01542700

Rod Assembly-Transaxle Left Hand

Note: (Contains Item 24 & two each of Items 25 & 25)

$

$

Not available

48

Gravely 06446900

Washer-Flat-Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

49

Gravely 05957400

Bolt-Hex .31-18 x .75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

50

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

51

Gravely 00568700

Handlebar-Large Frame

$

$

Not available

52

Gravely 06439100

Washer-Flat-Steel .38 x 87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

53

Gravely 06209500

Bolt-Round Head Square Neck .31-18 x .88 Grade 5

$2.99

$

Usually ships in 4-12 days

0

54

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

55

Gravely 05960600

Bolt-Hex .31-18 x 2.75 Grade 5
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

56

Gravely 01556900

Eccentric

$

$

Not available

57

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

58

Gravely 06529500

Nut-Hex .31-24
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0
