915024 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Attachment Lift Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

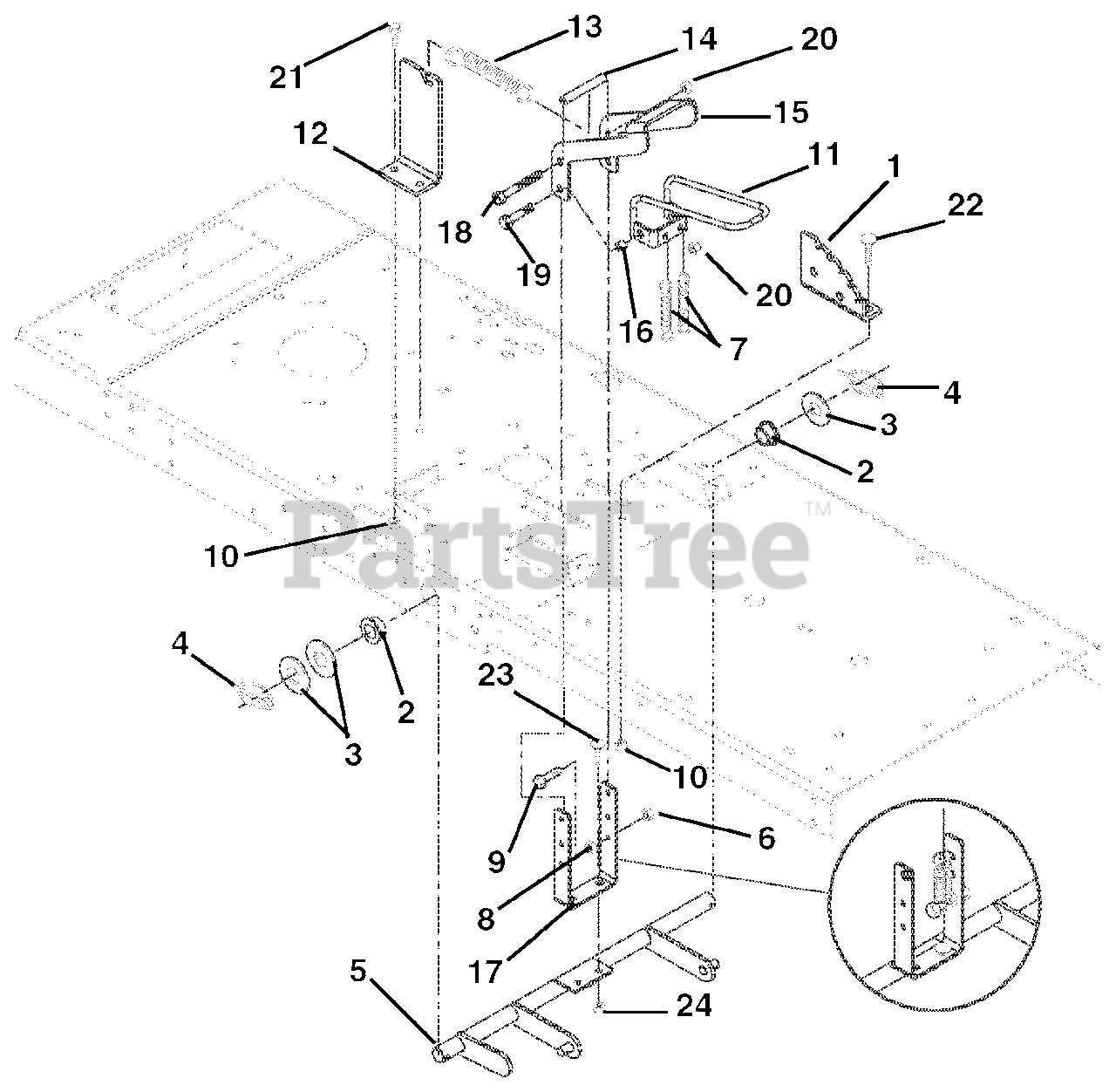

Attachment Lift Parts Diagram

  • Title
1

Gravely 01556500

Detent Plate

$37.99

$

Usually ships in 4-12 days

0

2

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

3

Gravely 06443000

Washer-Flat-Steel 1.062 x 2.000 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

5

Gravely 01558651

Lift Lever Weldment

Note: (025, 026)

$

$

Not available

5

Gravely 01556151

Lift Lever Weldment

Note: (024)

$148.99

$

Usually ships in 4-12 days

0

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 08309900

Spring-Tension .092 x .69 x 1.75

$

$

Not available

8

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

9

Gravely 05967100

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01554700

Weldment-Release

$62.99

$

Usually ships in 4-12 days

0

12

Gravely 01554251

Bracket-Lift

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 036558

Spring-Tension
(Superseded to 08313300)

$45.99

$

In Stock, only 2 left!

0

14

Gravely 01554500

Spacer .328 x .462 x 3.14

$

$

Not available

15

Gravely 01566800

Handle-Deck Lift
(Superseded to 01556451)

$

$

Not available

16

Gravely 01554600

Spacer .328 x .462 x .41

$

$

Not available

17

Gravely 01556351

Bracket-Handle

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 05973900

Bolt-Hex .312-18 x 4.50 Grade 5

$

$

Not available

19

Gravely 05947500

Bolt-Hex .312-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

20

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07028500

Bolt-Screw Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06223900

Bolt-Round Head Square Neck .375-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 06223600

Bolt-Round Head Square Neck .375-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

24

Gravely 06542000

Nut-Locking-Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
