915023 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Hanger Arm (40" & 48" Decks Only) Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

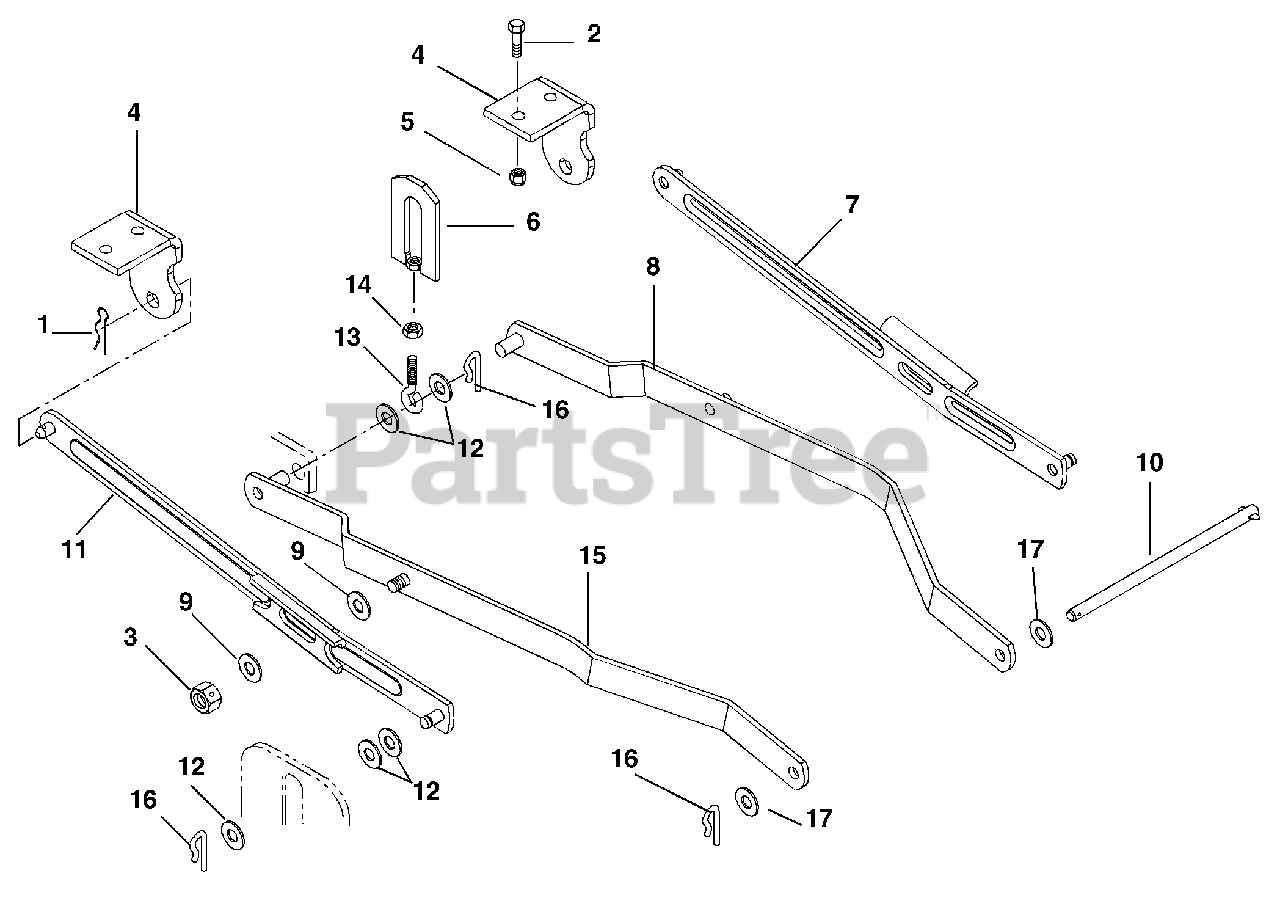

Hanger Arm (40" & 48" Decks Only) Parts Diagram

  • Title

1

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

2

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 01519551

REAR HANGER

$

$

Not available

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 03486400

LINK, ADJUSTMENT

Note: (020, 021)

$43.99

$

Usually ships in 4-12 days

0

Ariens 01563300

WELDMENT, ADJUSTMENT LINK

Note: (023)

$51.99

$

Usually ships in 4-12 days

0

7

Ariens 01587451

HANGER, REAR LH

$

$

Not available

8

Ariens 01587251

ARM, LIFT LH

$

$

Not available

9

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 01535900

PIN

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 01587551

HANGER, REAR RH

$

$

Not available

12

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

14

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01587351

ARM, LIFT RH

$

$

Not available

16

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0
