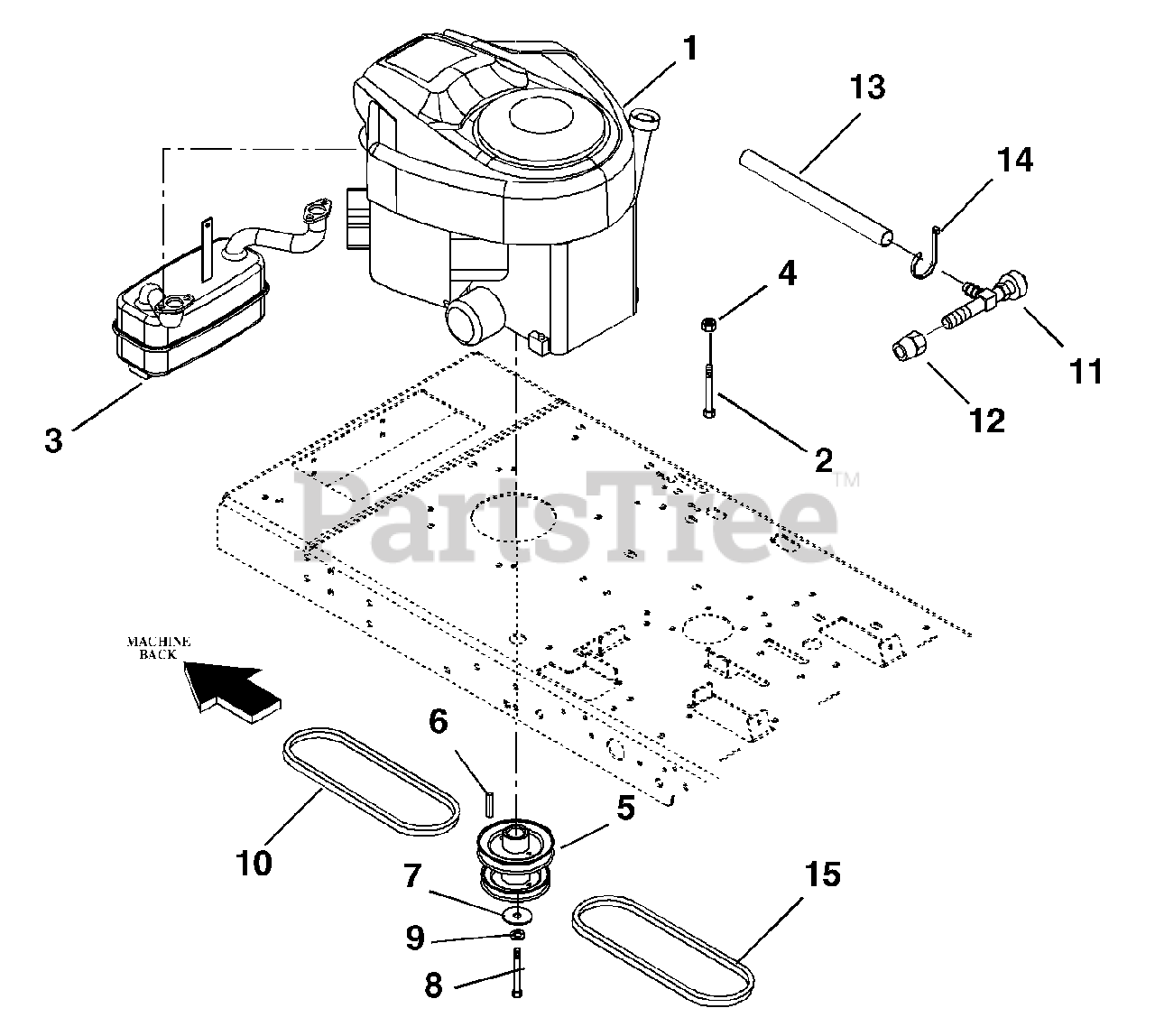

915023 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Engine, Exhaust And Belts Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

Engine, Exhaust And Belts Parts Diagram

  • Title

1

Ariens 51507000

ENGINE GROUP - 20HP ARIENS

Note: (023)

$

$

Not available

Ariens 51506800

ENGINE GROUP - 17HP ARIENS

Note: (022)

$

$

Not available

2

Ariens 07415300

@SCR-TAP .31-18X1.50 HWH TR YZ

$

$

Not available

3

Ariens 01557000

MUFFLER ASSEMBLY

$155.99

$

Usually ships in 4-12 days

0

4

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 01557700

ENGINE SHEAVE 4.50

$104.99

$

In Stock, only 2 left!

0

6

Ariens 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$5.99

$

In Stock, only 3 left!

0

7

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

8

Ariens 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

9

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

10

Ariens 07213600

V-BELT, HA-WRAPPED

$38.99

$

In Stock, only 1 left!

0

11

Ariens 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

12

Ariens 03493100

ADAPTER, OIL DRAIN

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 01523400

TUBE OIL DRAIN

$

$

Not available

14

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

15

Ariens 07235700

V-BELT, HB-WRAPPED

$51.99

$

Usually ships in 4-12 days

0
