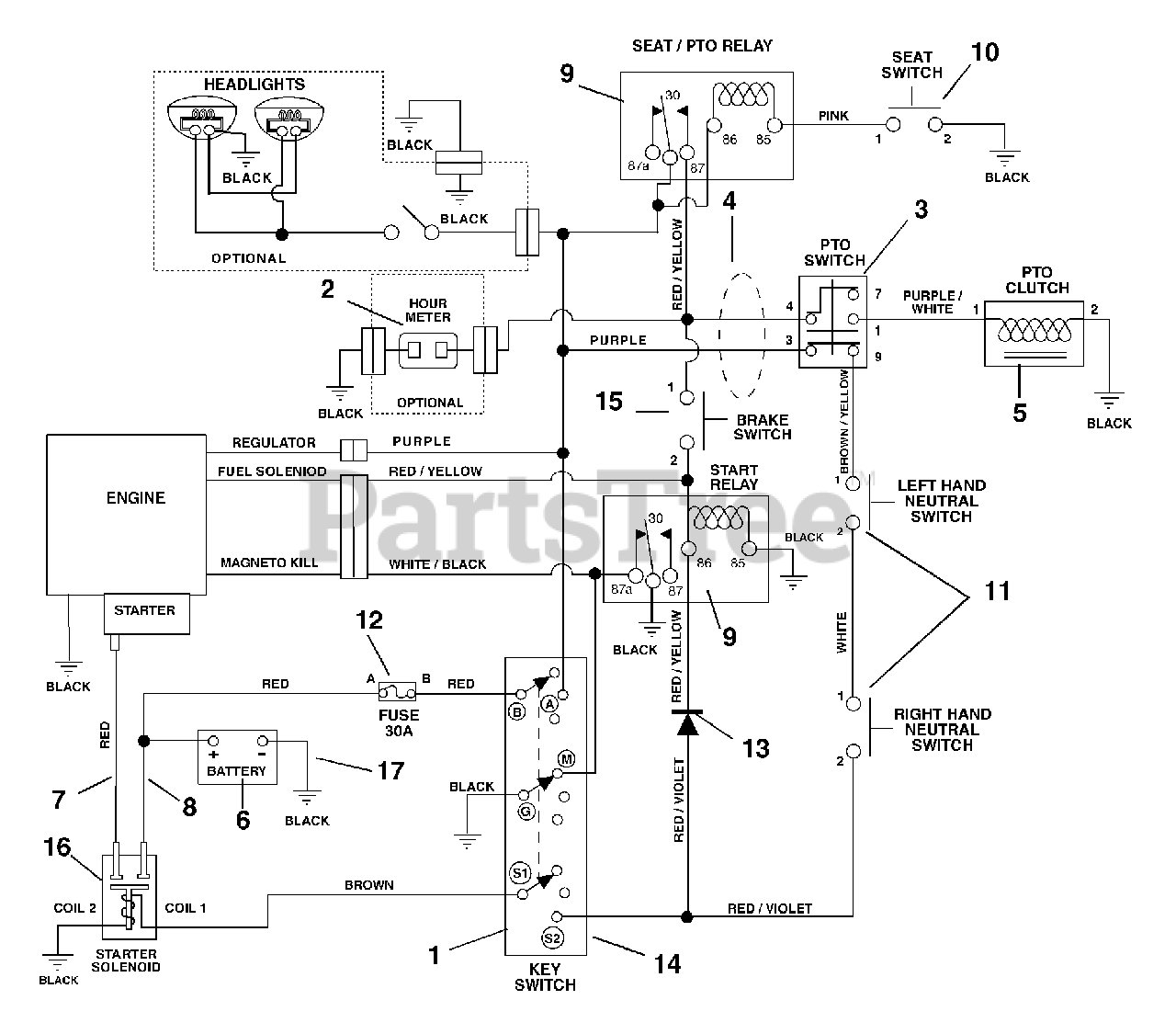

915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Wiring Diagram Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

Wiring Diagram Parts Diagram

  • Title

1

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

2

Gravely 038256

Hour Meter
(Superseded to 09497400)

Note: (Optional)

$23.99

$

In Stock, only 3 left!

0

3

Gravely 01545600

Switch-Clutch

$25.99

$

In Stock, Qty 20+

0

4

Gravely 01563200

Harness-Wiring

$

$

Not available

5

Gravely 03357900

Clutch / Brake-Electric

Note: (Model 016)

$491.99

$

In Stock, only 1 left!

0

5

Gravely 03643100

Clutch / Brake-Electric

Note: (Model 019)

$296.99

$

Usually ships in 4-12 days

0

6

Gravely 01554800

Battery with Tube

Note: (Models 016, 019)

$

$

Not available

7

Gravely 02743300

Start Cable
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

8

Gravely 02727900

Starter Cable

$35.99

$

In Stock, only 1 left!

0

9

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

10

Gravely 03654200

Switch-Seat

$

$

Not available

11

Gravely 01526100

Switch-Neutral

$55.99

$

In Stock, only 1 left!

0

12

05246000

30 AMP Fuse

$

$

Not available

13

Gravely 03081700

Plug-Molded Diode

$26.99

$

Usually ships in 4-12 days

0

14

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 03657100

Switch-Brake

$9.49

$

In Stock, only 2 left!

0

16

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

17

Gravely 03111100

Ground Cable
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0
