915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Transaxle And Wheels Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

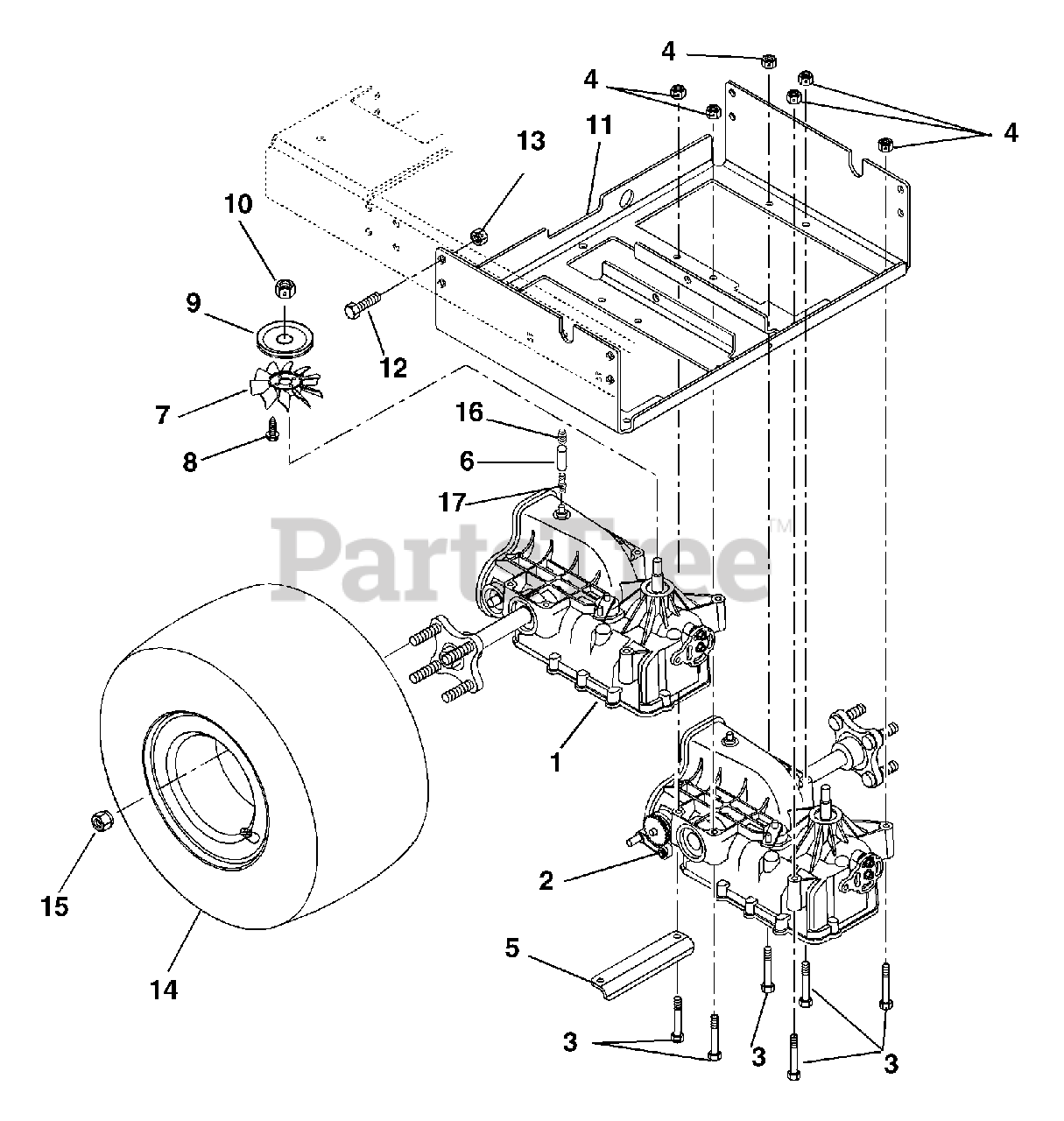

Transaxle And Wheels Parts Diagram

  • Title

1

Gravely 01540300

Transaxle Hydro-Gear Right Hand
(Superseded to 51507400)

$

$

Not available

2

Gravely 01540400

Transaxle Hydro-Gear Left Hand
(Superseded to 51507300)

$

$

Not available

3

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 01543900

Transaxle Bracket
(Superseded to 01543951)

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 01543100

Hose-Vent

$9.49

$

In Stock, only 2 left!

0

7

Gravely 045321

Fan
(Superseded to 03570000)

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 07413000

Screw-Tapping 10-24 x .75 Hex Washer Head
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

9

Gravely 07321400

Sheave-Transaxle
(Superseded to 01569100)

$56.99

$

In Stock, only 1 left!

0

10

Gravely 06517200

Nut-Locking-Top .50-20

$

$

Not available

11

Gravely 01540900

Transmission Cradle

$

$

Not available

12

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07144600

Tire/Wheel 18 x 8.50-8

$

$

Not available

14

Gravely 07144900

Rim for 18 x 8.50-8 Tire

$

$

Not available

14

Gravely 07145100

Tire 18 x 8.50-8
(Superseded to 07101220)

$113.99

$

In Stock, only 1 left!

0

15

Gravely 06535000

Nut-Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07026400

Cap-Vent 1/2" Hydro-Gear

$14.99

$

In Stock, only 2 left!

0

17

Gravely 07026300

Fitting-Straight 1/2" O-Ring Hydro-Gear

$23.99

$

In Stock, only 2 left!

0
