915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Idlers Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

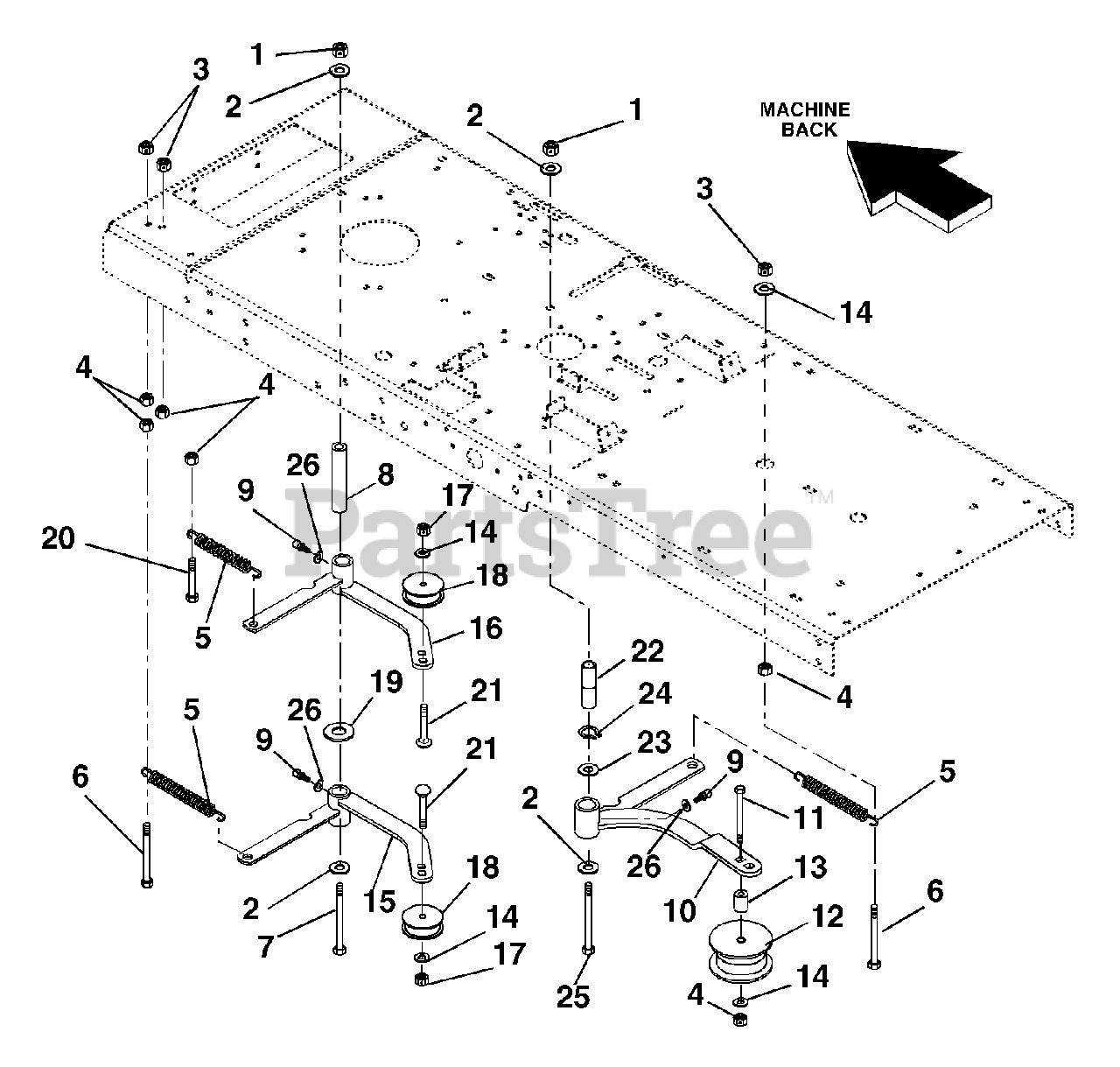

Idlers Parts Diagram

  • Title

1

Gravely 06536300

Nut-Locking, Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 06442000

Washer-Flat, Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

3

Gravely 06529600

Nut-Locking, Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 08336100

Spring-Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

6

Gravely 05965400

Bolt-Hex .38-16 x 4.00 Grade 5

$3.99

$

In Stock, only 1 left!

0

7

Gravely 05964100

Bolt-Hex .50-13 x 5.50 Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 01557200

Spacer-Idler Arm

$

$

Not available

9

Gravely 411027

Fitting-Lube .25-20 x .256
(Superseded to 07012600)

$

$

Not available

10

Gravely 01582700

Weldment-Idler Arm

$165.99

$

Usually ships in 4-12 days

0

11

Gravely 05970400

Bolt-Hex .38-16 x 4.50
(Superseded to 05901938)

Note: (Model 016)

$4.99

$

In Stock, only 2 left!

0

11

Gravely 05958400

Bolt-Hex .38-16 x 2.50
(Superseded to 05901812)

Note: (Model 019)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 07324700

Idler-4.0 inch Diameter

$83.99

$

In Stock, only 3 left!

0

13

Gravely 01544100

Spacer-Idler 48 inch

Note: (Model 016)

$37.99

$

In Stock, only 1 left!

0

14

Gravely 06436200

Washer-Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01557300

Idler Arm Weldment Transaxle

$

$

Not available

16

Gravely 01557400

Weldment-Jackshaft Idler Arm

$165.99

$

Usually ships in 4-12 days

0

17

Gravely 06537200

Nut-Jam Lock .38-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07324600

Idler-3.5 inch Diameter

$

$

Not available

19

Gravely 06445500

Washer-Hardened

$5.99

$

In Stock, only 1 left!

0

20

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06215300

Bolt-Round Head Square Shank .38-16 x 1.50
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 01548400

Spacer-Idler

$

$

Not available

23

Gravely 06436900

Washer-Flat-Steel .88 x 1.25 x .62

$2.49

$

In Stock, Qty 11

0

24

Gravely 05702600

Ring-Retaining External .875 x .042

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 05962300

Bolt-Hex .50-13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

26

Gravely 06442300

Washer-Flat-Steel .250 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0
