915019 (ZT 1842) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 & Above) Bumpers Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

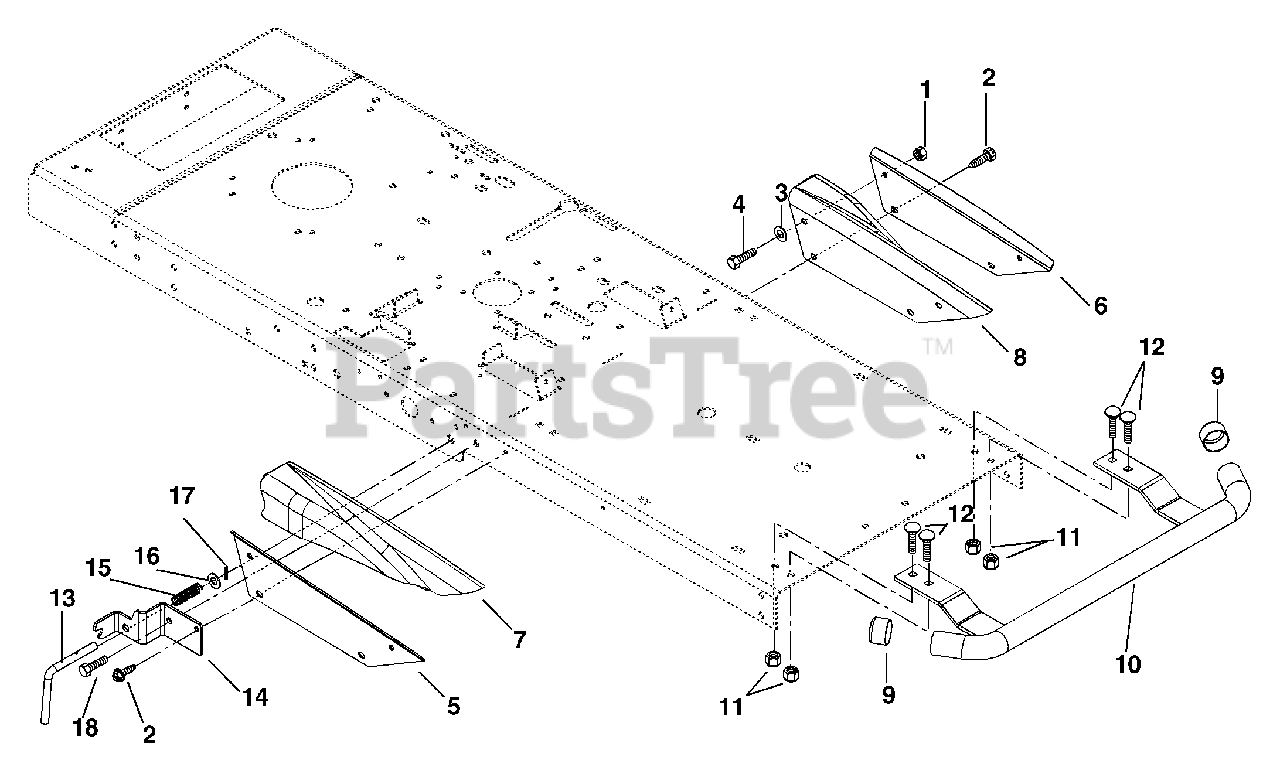

Bumpers Parts Diagram

  • Title

1

Gravely 06530200

Nut-Locking-Nylon .312-18 Grade 5
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 07414400

Screw-Tapping .312-18 x .75 Grade 5
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

3

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05947000

Bolt-Hex .312-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 01555553

Bracket-Rail Support-Right Hand

Note: (Model 019)

$

$

Not available

6

Gravely 01554153

Bracket-Rail Support-Left Hand

Note: (Model 019)

$

$

Not available

7

Gravely 01552753

Rail-Side-Right Hand

Note: (Model 019)

$

$

Not available

8

Gravely 01551453

Rail-Side-Left Hand

Note: (Model 019)

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 01555100

Cap-Sleeve

Note: (Model 019)

$

$

Not available

10

Gravely 01555751

Weldment-Bumper

Note: (Model 019)

$

$

Not available

11

Gravely 06535800

Nut-Locking-Nylon .375-16 Grade 5
(Superseded to 06500831)

Note: (Model 019)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06223600

Bolt-Round Head Square Neck .375-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (Model 019)

$2.49

$

In Stock, Qty 10

0

13

Gravely 01558800

Pin-Index

$

$

Not available

14

Gravely 01558751

Bracket-Stop

$

$

Not available

15

Gravely 051650

Spring-Compression
(Superseded to 08325900)

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05802900

Pin-Roll .156 x 1.00

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
