915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000620 & Above) Hanger Arm (48" Decks Only) Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

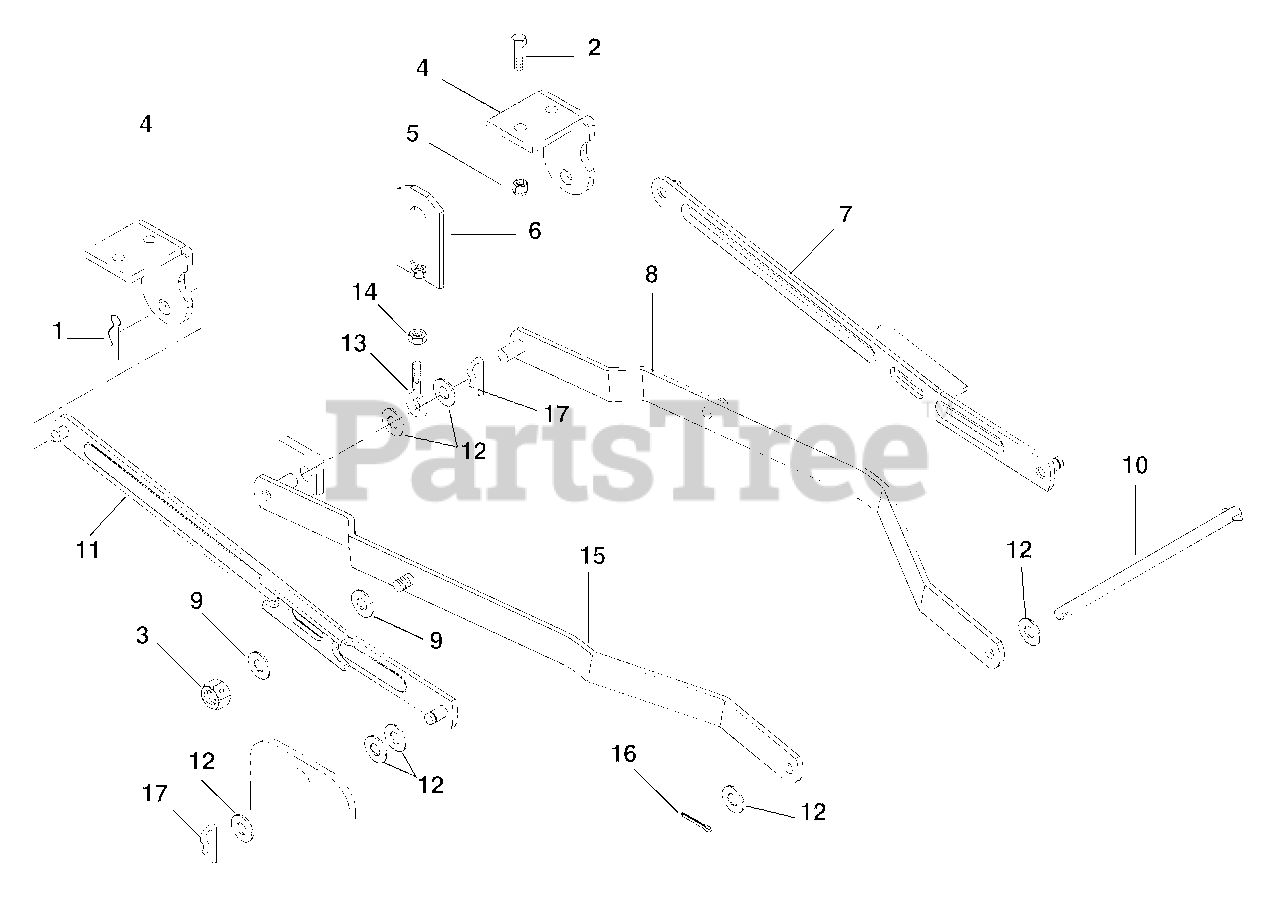

Hanger Arm (48" Decks Only) Parts Diagram

  • Title

1

Gravely 06711900

Pin-Hair External .12 x .31 x 2.37

$2.99

$

In Stock, only 2 left!

0

2

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06535300

Nut-Locking-Center .625-11

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 01519500

Rear Hanger
(Superseded to 01519551)

$

$

Not available

5

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01563300

Weldment, Adjustment Link

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 01587451

Hanger, Rear Left Hand

$

$

Not available

8

Gravely 01587251

Arm, Lift Left Hand

$

$

Not available

9

Gravely 06442800

Washer-Flat-Steel .656 x .31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 01535900

Pin

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 01587551

Hanger, Rear Right Hand

$

$

Not available

12

Gravely 06430200

Washer-Flat-Steel .531 x 1.25 x .10
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 07030000

Hanger

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 06535900

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01587351

Arm, Lift Right Hand

$

$

Not available

16

Gravely 06712300

Pin-Cotter .16 x 1.00

$2.49

$

In Stock, Qty 5

0

17

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, Qty 20+

0
