915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000620 & Above) 48" Mower Spindle Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

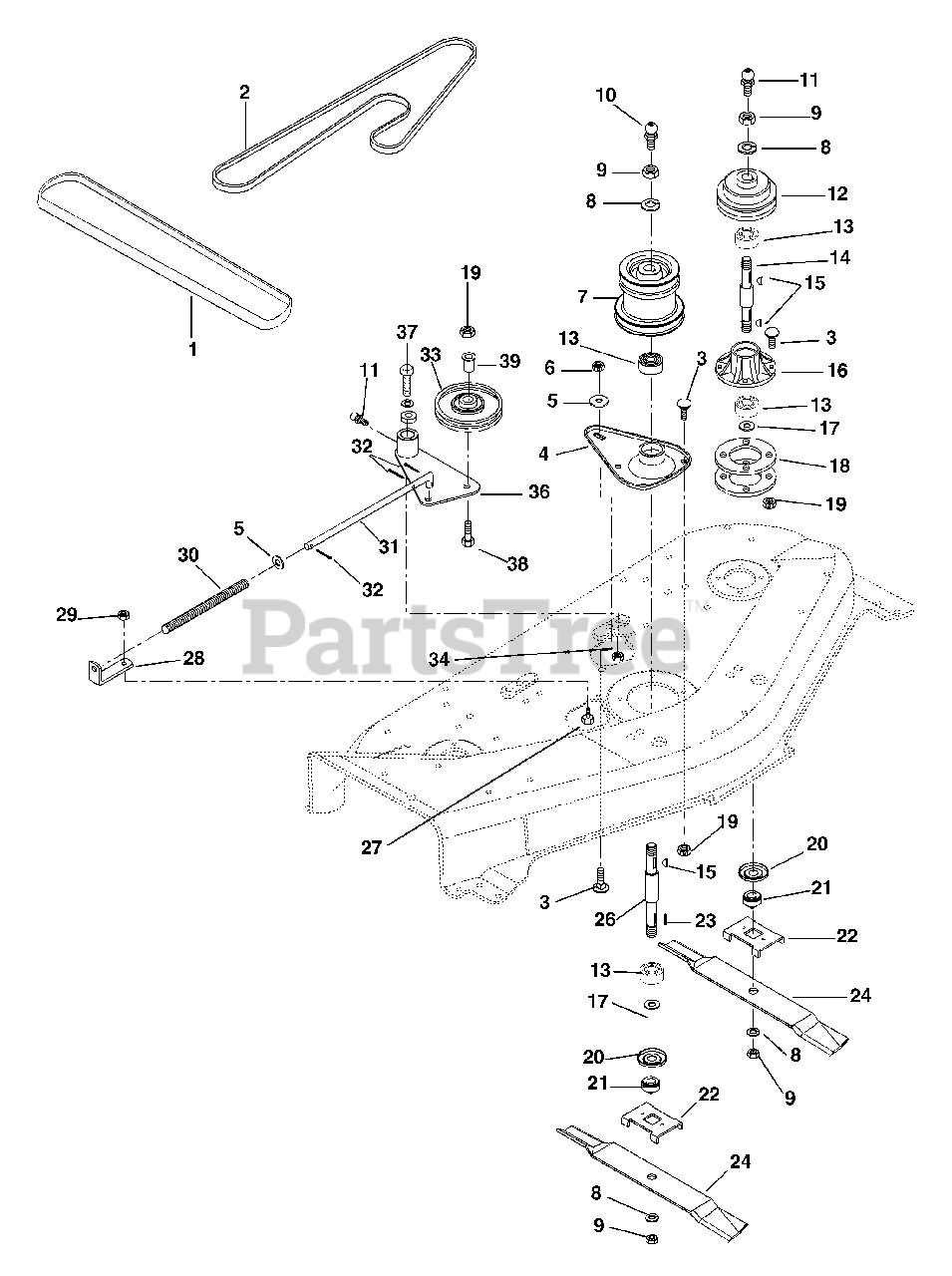

48" Mower Spindle Parts Diagram

  • Title

1

Gravely 07234500

Belt, 48" Clutch to Deck

$39.99

$

In Stock, only 1 left!

0

2

Gravely 07234400

Belt, 48" Deck

$96.99

$

In Stock, only 3 left!

0

3

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

4

Gravely 03434951

Housing, Spindle

$

$

Not available

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 01543300

Sheave, 48" Deck

$262.99

$

Usually ships in 4-12 days

0

8

Gravely 06310300

Washer-Lock .750 x .188

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06537700

Nut-Jam .75-10

$2.49

$

In Stock, only 2 left!

0

10

Gravely 411010

Fitting, Lube .125
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 411027

Fitting, Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

12

Gravely 03401800

Sheave

$187.99

$

Usually ships in 4-12 days

0

13

Gravely 035925

Bearing-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

14

Gravely 039552

Spindle Shaft w/Zerk
(Superseded to 53115100)

$74.99

$

In Stock, only 1 left!

0

15

Gravely 06601400

Key-Woodruff .188 x .62 x .25

$2.49

$

In Stock, Qty 6

0

16

Gravely 039595

Spindle Housing
(Superseded to 03433500)

$

$

Not available

17

Gravely 06444100

Washer-Flat-Steel .754 x 1.000 x .032

$2.99

$

In Stock, Qty 17

0

18

Gravely 039596

Spacer, Spindle
(Superseded to 03433600)

$

$

Not available

19

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00341900

Bearing Slinger

$22.99

$

In Stock, only 2 left!

0

21

Gravely 039559

Retainer Hub
(Superseded to 03037500)

$71.99

$

In Stock, only 2 left!

0

22

Gravely 03485500

Blade Tray 48

$20.99

$

In Stock, only 1 left!

0

23

Gravely 035893

Key-Square .188 x .625 x .188
(Superseded to 06601700)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 03123700

Blade

$23.99

$

Usually ships in 4-12 days

0

25

Gravely 06444200

Washer-Flat-Steel .755 x 1.250 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

26

Gravely 53402400

Spindle Shaft with Zerk & Key

$79.99

$

In Stock, only 1 left!

0

27

Gravely 05947200

Bolt-Hex .31-18 x .50 Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

28

Gravely 03418851

Bracket

$77.99

$

Usually ships in 4-12 days

0

29

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 039609

Spring-Compression .106 x .63 x 12.0
(Superseded to 08301800)

$14.99

$

Usually ships in 4-12 days

0

31

Gravely 039599

Rod-Idler Spring
(Superseded to 03433900)

$96.99

$

Usually ships in 4-12 days

0

32

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

33

Gravely 00542700

Idler-Plastic 4.75 OD x .50 ID

$37.99

$

In Stock, only 1 left!

0

34

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 06436600

Washer-Flat-Steel .505 x .880 x .072
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 03433751

Idler Arm w/Zerk
(Superseded to 53401000)

$102.99

$

In Stock, Qty 6

0

37

Gravely 05966600

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

38

Gravely 039451

Bolt-Button Head .38-16 x 1.25 Grade 5
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 036849

Spacer-Flanged .390 x .500 x .781 x .875
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

40

Gravely 039598

Spacer, Pivot
(Superseded to 03433800)

$

$

Not available
