915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000620 & Above) 48" Mower Pan Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

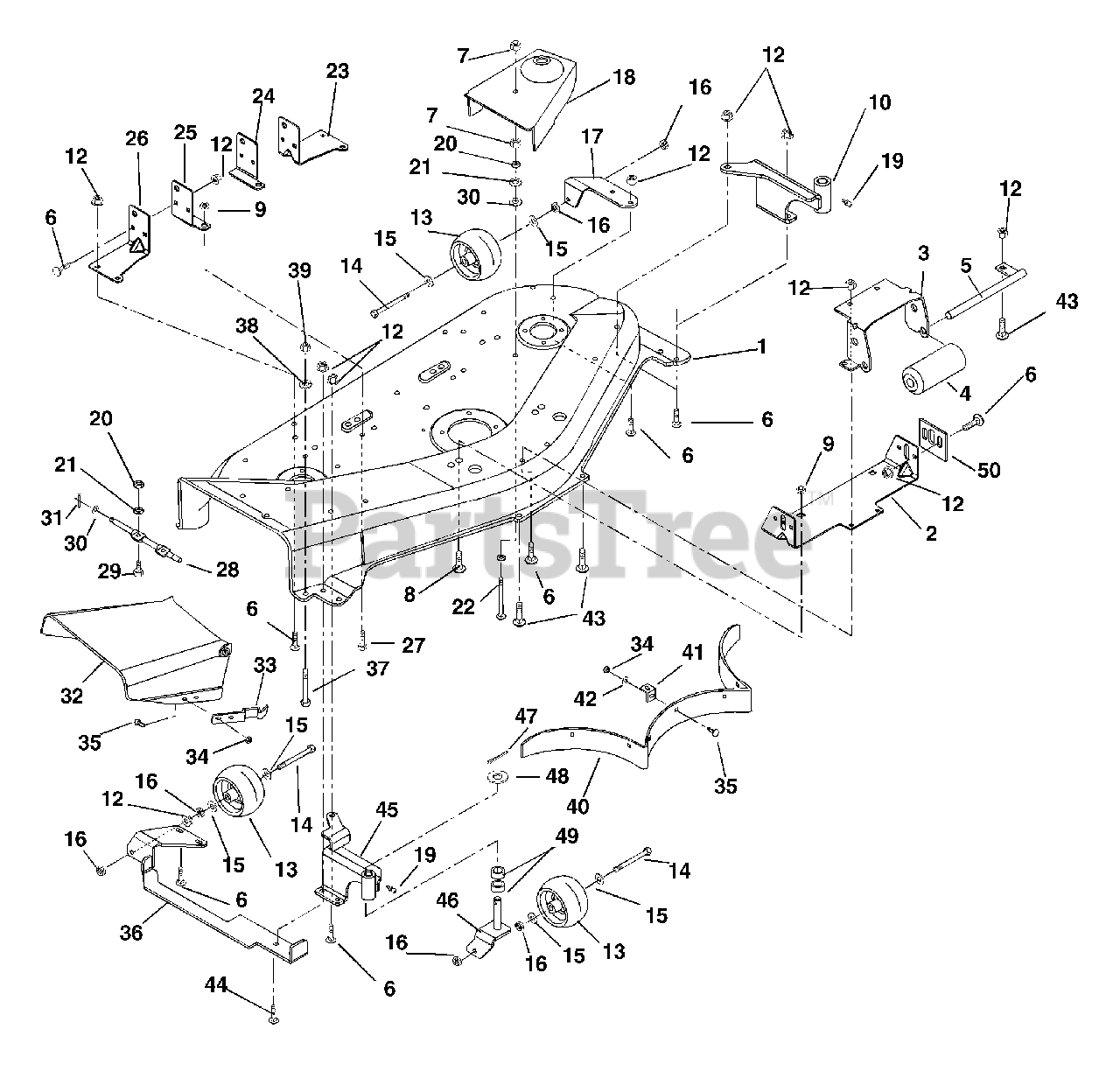

48" Mower Pan Parts Diagram

  • Title

1

Gravely 51503400

Mower Pan Head w/Decals 48"

Note: (Model 016)

$

$

Not available

2

Gravely 01521251

Front Hanger

$45.99

$

Usually ships in 4-12 days

0

3

Gravely 03435151

Bracket, Roller

$81.99

$

Usually ships in 4-12 days

0

4

Gravely 039563

Roller
(Superseded to 03114100)

$22.99

$

In Stock, Qty 20+

0

5

Gravely 039601

Roller Shaft
(Superseded to 03435200)

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06224600

Bolt-Round Head Square Neck .50-13 x .75 - Short Neck
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

9

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 01535653

Weldment-Left Front

$

$

Not available

11

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 050825

Roller
(Superseded to 02745400)

$15.99

$

In Stock, Qty 20+

0

14

Gravely 05960900

Bolt-Hex .38-16 x 3.50 Grade 5
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 01535353

Bracket-Left Rear

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 03095853

Belt Cover Right Hand 48"
(Superseded to 03095851)

$71.99

$

Usually ships in 4-12 days

0

18

Gravely 03095953

Belt Cover Left Hand 48"

$

$

Not available

19

Gravely 411027

Fitting-Lube .25-20 x .256
(Superseded to 07012600)

$

$

Not available

20

Gravely 06529200

Nut-Locking .312-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

21

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06223500

Bolt-Round Head Square Neck .31-18 x 3.25

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 01535851

Left Hand Rear Hanger

$38.99

$

Usually ships in 4-12 days

0

24

Gravely 01521651

Left Hand Rear Hanger Support

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 01521451

Right Hand Rear Hanger Support

$46.99

$

Usually ships in 4-12 days

0

26

Gravely 01535751

Right Hand Rear Hanger
(Superseded to 01535700)

$56.99

$

Usually ships in 4-12 days

0

27

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Gravely 03405800

Hinge Pin

$46.99

$

Usually ships in 4-12 days

0

29

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

32

Gravely 03034953

Chute Extension

$

$

Not available

33

Gravely 00318553

Flat Spring

$

$

Not available

34

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06220600

Bolt-Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 01535453

Weldment-Right Rear

$25.99

$

Usually ships in 4-12 days

0

37

Gravely 06224400

Bolt-Round Head Square Neck .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

38

Gravely 06306500

Washer-Lock .375 x .155
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

39

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 03434251

Baffle
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

41

Gravely 03434351

Baffle Tab

$

$

Not available

42

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

44

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 01535553

Weldment-Right Front
(Superseded to 01563653)

$176.99

$

Usually ships in 4-12 days

0

46

Gravely 01534653

Caster Fork Weldment

$71.99

$

Usually ships in 4-12 days

0

47

Gravely 06712700

Pin-Cotter .18 x 1.25

$1.99

$

In Stock, only 3 left!

0

48

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 05504700

Bushing-Sleeve .625 x .750 x .500

$11.99

$

In Stock, only 1 left!

0

50

Gravely 01528751

Mower Adjustment Tab

$

$

Not available
