915016 (ZT 2048) - Gravely 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 - 000619) Parking Brake And Dump Valves Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

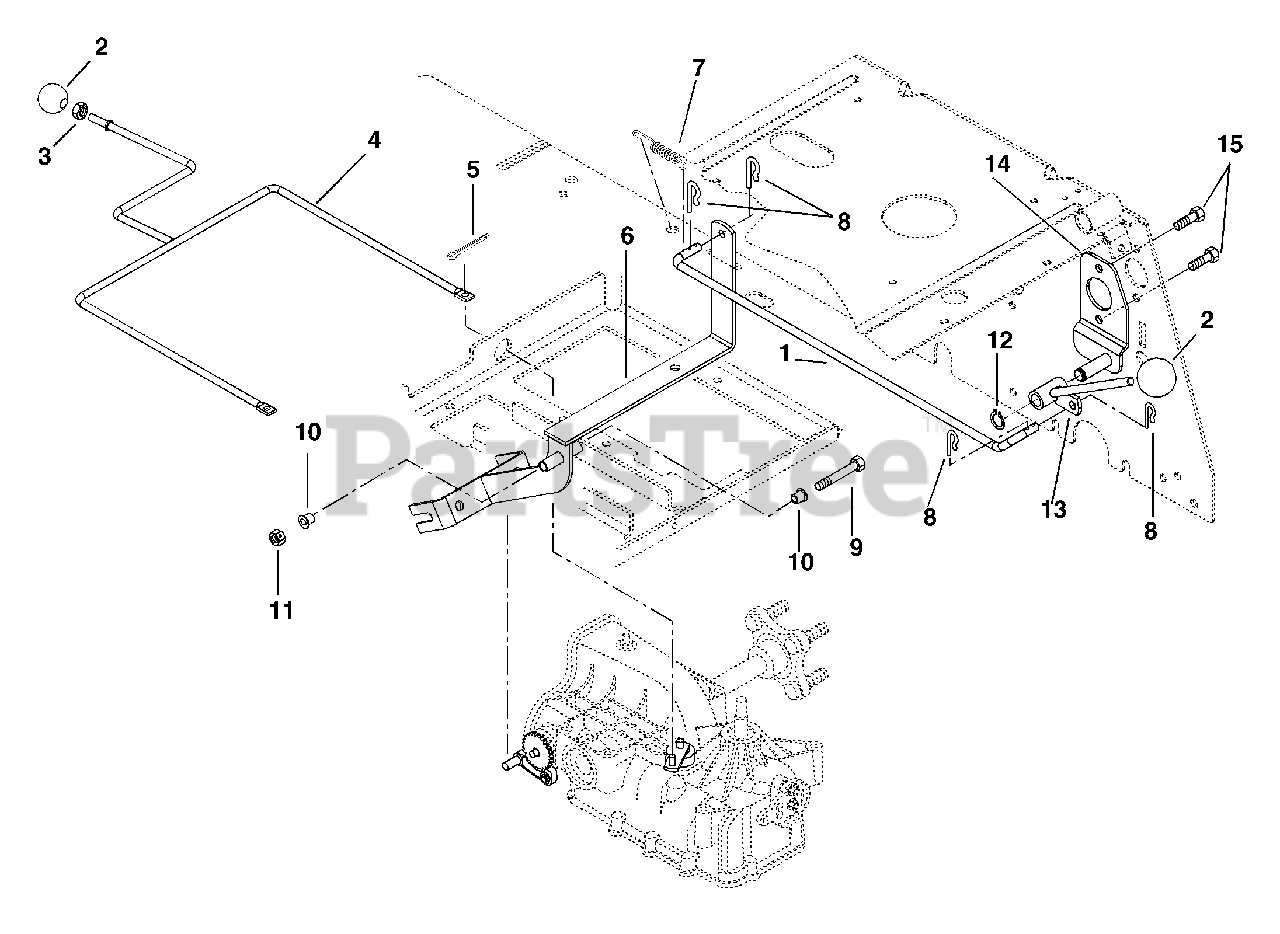

Parking Brake And Dump Valves Parts Diagram

  • Title

1

Gravely 01555600

Rod-Brake

$

$

Not available

2

Gravely 07515900

Knob

$21.99

$

In Stock, only 2 left!

0

3

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

4

Gravely 01540100

Dump Valve Weldment

$

$

Not available

5

Gravely 06713500

Pin-Cotter .09 x .75
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01545300

Brake Arm Weldment
(Superseded to 01560551)

$73.99

$

In Stock, only 1 left!

0

7

Gravely 08325200

Spring-Tension .051 x .60 x 2.25

$5.99

$

In Stock, only 1 left!

0

8

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05966300

Bolt-Hex .25-20 x 3.00
(Superseded to 05902128)

$

$

Not available

10

Gravely 041244

Bushing-Flange .257 x .38 x 1.080
(Superseded to 05521000)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05717100

Ring-Retaining External

$2.49

$

In Stock, Qty 8

0

13

Gravely 01555951

Lever-Brake
(Superseded to 01555900)

$

$

Not available

14

Gravely 01555800

Pivot-Brake Lever

$

$

Not available

15

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0
