915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Front Axle Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

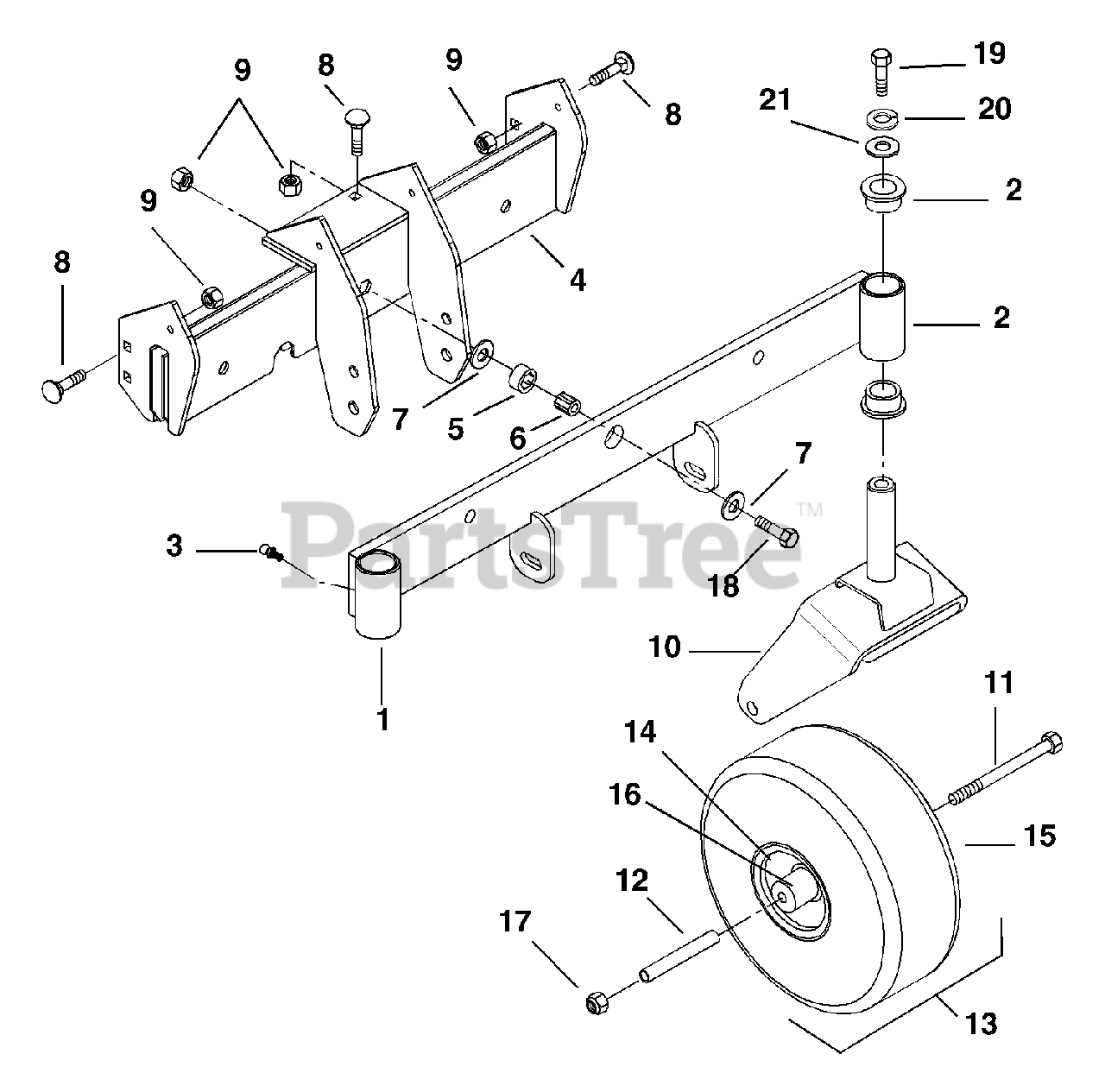

Front Axle Parts Diagram

  • Title
1

Gravely 01542953

Axle Weldment
(Superseded to 01542951)

$

$

Not available

2

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

3

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

4

Gravely 01584953

Axle Frame Weldment (42" Decks)

Note: (Model 015)

$

$

Not available

4

01538153

Axle Frame Weldment (48" Decks)

Note: (Model 016)

$

$

Not available

5

Gravely 05522000

Bushing-Sleeve .626 x 1.000 x .524

$90.99

$

Usually ships in 4-12 days

0

6

Gravely 05522700

Bushing-Sleeve .377 x .623 x .775

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 06443400

Washer-Flat-Steel .38 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

8

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

9

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 01547053

Fork-Caster

$91.99

$

Usually ships in 4-12 days

0

11

Gravely 05964400

Bolt-Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

12

Gravely 09105200

Bushing-Caster Fork

$37.99

$

In Stock, only 3 left!

0

13

Gravely 07144100

Wheel & Tire 11 x 4.00-5 (Includes 14 - 16)
(Superseded to 07100124)

Note: (Includes 14 - 16)

$74.99

$

In Stock, Qty 20+

0

14

Gravely 07145200

Rim Assembly

$68.99

$

Usually ships in 4-12 days

0

15

Gravely 07145300

Tire
(Superseded to 07101235)

$51.99

$

Usually ships in 4-12 days

0

16

Gravely 07145400

Bearing
(Superseded to 05434900)

$13.99

$

In Stock, Qty 20+

0

17

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 05957900

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

19

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06308800

Washer-Lock 038 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06441700

Washer-Flat-Steel .38 x 1.50 x .125

$3.99

$

In Stock, only 1 left!

0
