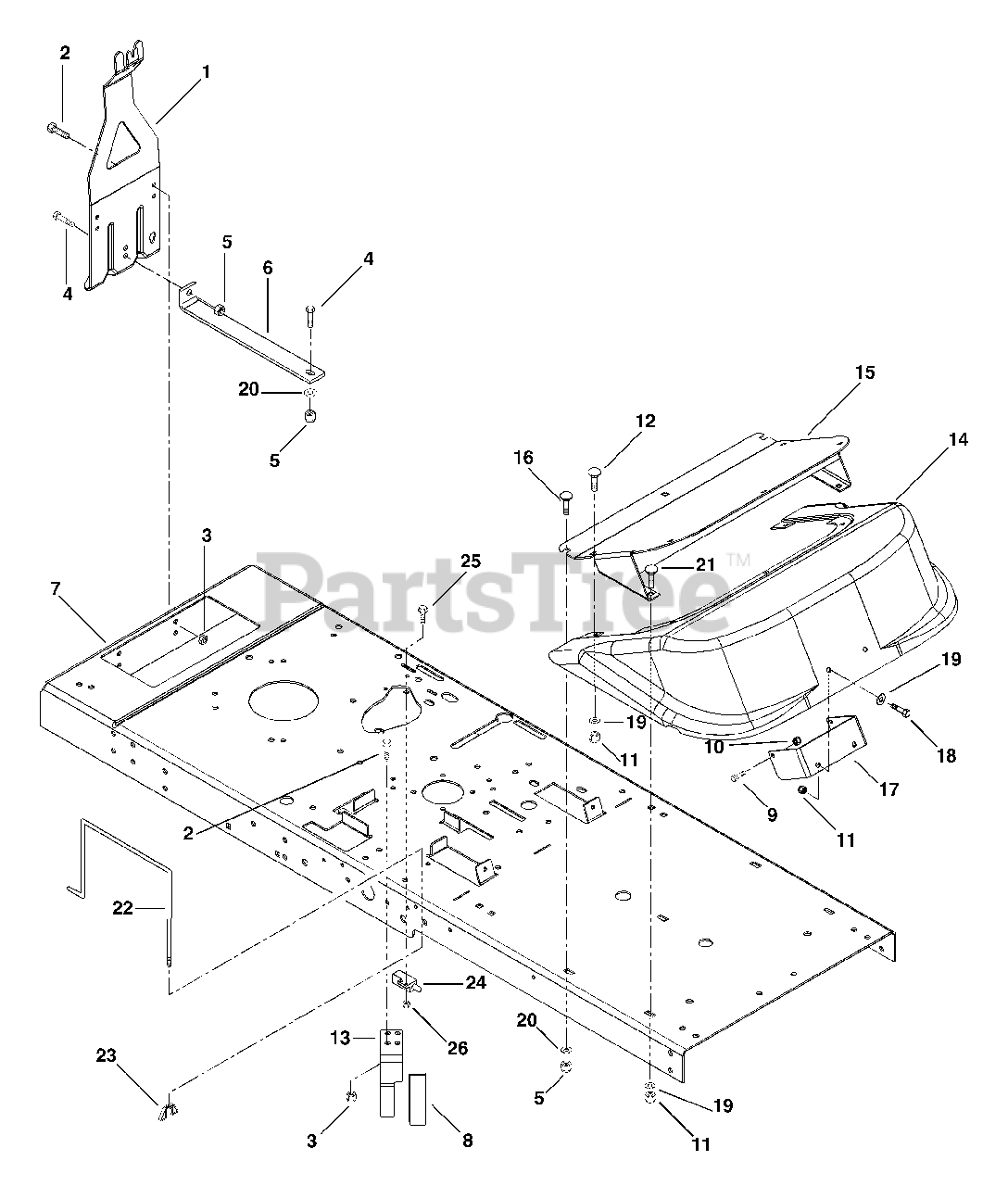

915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

Frame Parts Diagram

  • Title
1

Gravely 01553553

Hitch-Trailer
(Superseded to 01553551)

$

$

Not available

2

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06529800

Nut-Locking-Center .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

$

$

Not available

$

$

Not available

8

Gravely 045374

Grip
(Superseded to 07509400)

$

$

Not available

9

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06531000

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 06530200

Nut-Locking-Nylon .312-18 Grade 5
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06220800

Bolt-Round Head Square Short Neck .312-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 01557851

Clutch Stop

$

$

Not available

14

Gravely 01550053

Shroud-Footrest

$82.99

$

Usually ships in 4-12 days

0

15

Gravely 01552851

Weldment-Footrest

$45.99

$

Usually ships in 4-12 days

0

16

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 01554351

Bracket-Footrest

$14.99

$

Usually ships in 4-12 days

0

18

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06435700

Washer-Flat-Steel .375 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06216100

Bolt-Round Head Square Neck .312-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 01533400

Rod-Battery

$25.99

$

Usually ships in 4-12 days

0

23

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 13

0

24

Gravely 03657100

Switch-Single Pole N.O.

$9.49

$

In Stock, only 1 left!

0

25

Gravely 07049200

Bolt-Hex #10-24 Flat Washer Head

$

$

Not available

26

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
