915015 (ZT 1742) - Gravely 42" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) 42" Motor Spindle Parts Diagram

42" Zero-Turn Mower, 17hp Briggs & Stratton

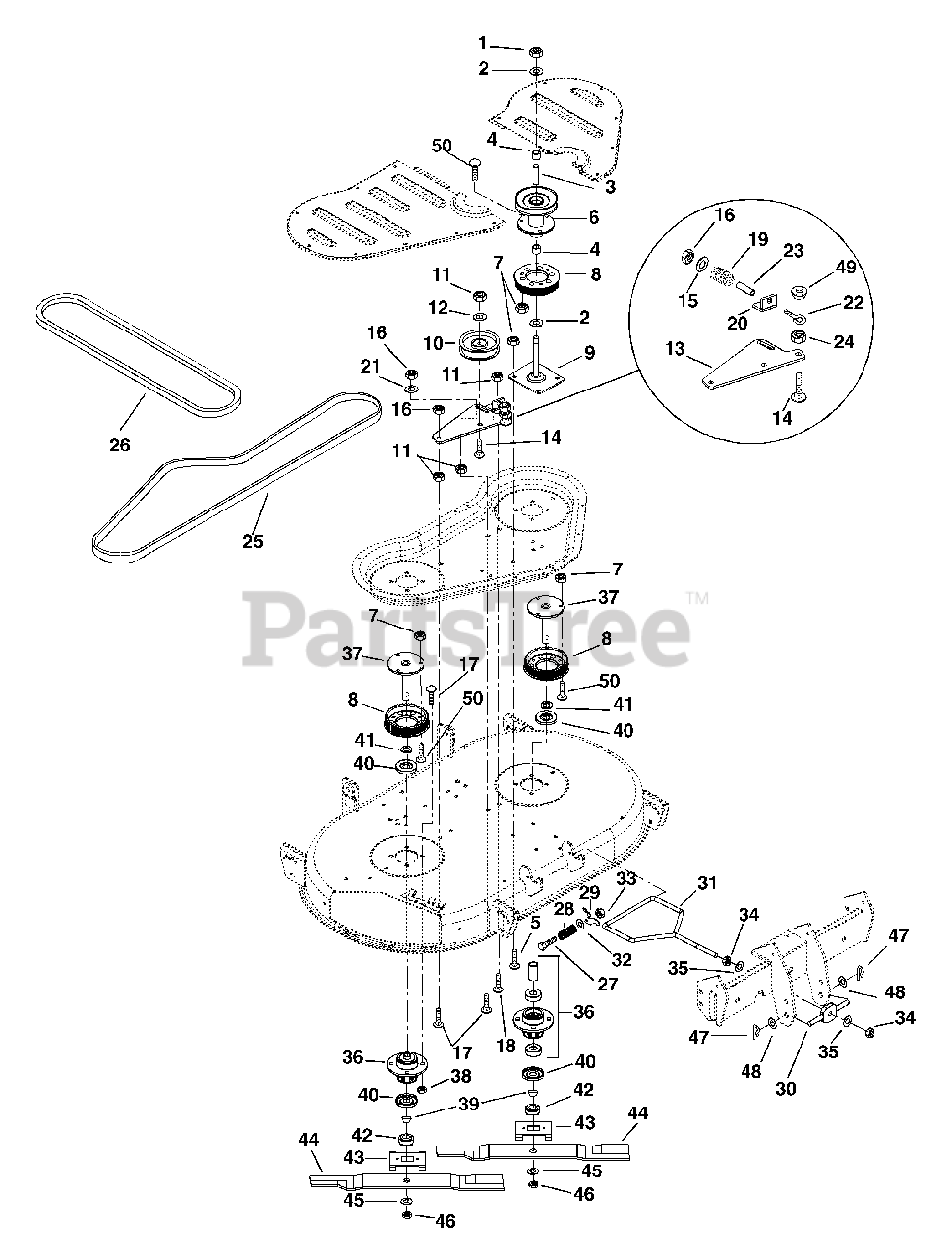

42" Motor Spindle Parts Diagram

  • Title

1

Gravely 06530300

Nut-Locking-Nylon .625-18
(Superseded to 06500936)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 06436100

Washer-Flat-Steel .630 x 1.00 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 01583100

Spacer .64 x .88 x 3.38

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 05435100

Bearing .625 x 1.37 x .43

$14.99

$

In Stock, Qty 20+

0

5

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 01584700

Jackshaft
(Superseded to 07331467)

$155.99

$

Usually ships in 4-12 days

0

7

Gravely 06529800

Nut-Locking-Center.31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01583700

Sprocket-Drive

$90.99

$

Usually ships in 4-12 days

0

9

Gravely 01582951

Weldment-Plate Mount

$77.99

$

Usually ships in 4-12 days

0

10

Gravely 053125

Assembly-Idler Pulley
(Superseded to 07320800)

$34.99

$

In Stock, Qty 12

0

11

Gravely 06537200

Nut-Locking-Jam-Center .38-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 01583200

Arm-Idler

$65.99

$

Usually ships in 4-12 days

0

14

Gravely 06224200

Bolt Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06224100

Bolt-Round-Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 06223900

Bolt-Round-Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 08335700

Spring-Compression .125 x .78 x 1.25

$9.49

$

In Stock, only 1 left!

0

20

Gravely 01583300

Bracket-Belt Adjustment

$

$

Not available

21

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07030000

Bolt-Eye .375-16 x 2.50

$7.99

$

Usually ships in 4-12 days

0

23

Gravely 01584800

Spacer .39 x .50 x .88

$

$

Not available

24

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 07237500

Belt-Cog

$63.99

$

In Stock, only 1 left!

0

26

Gravely 07237400

Belt-V A-RMA
(Superseded to 07239500)

$51.99

$

In Stock, only 2 left!

0

27

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

28

Gravely 08321700

Spring-Compression .058 x .68 x .75

$9.49

$

Usually ships in 4-12 days

0

29

Gravely 01583500

Retainer-Brace

$

$

Not available

30

Gravely 01586100

Weldment-Front Mount
(Superseded to 01586800)

$

$

Not available

31

Gravely 01584600

Rod Link

$34.99

$

In Stock, only 2 left!

0

32

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

34

Gravely 06536300

Nut-Locking-Center ..50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

36

Gravely 01583800

Assembly-Spindle Housing

$113.99

$

In Stock, only 3 left!

0

37

Gravely 01582400

Weldment-Spindle Shaft

$159.99

$

In Stock, only 1 left!

0

38

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06604200

Key Woodruff .188 x .625 x .31
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 00341900

Bearing-Slinger

$22.99

$

In Stock, only 2 left!

0

41

Gravely 06444200

Washer-Flat-Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

42

Gravely 01582100

Hub-Retainer

$43.99

$

In Stock, only 1 left!

0

43

Gravely 01582200

Tray-Blade

$22.99

$

In Stock, only 3 left!

0

44

Gravely 01584500

Blade-22" (015)

Note: (015)

$31.99

$

In Stock, Qty 12

0

45

Gravely 06310300

Washer-Locking .75 x .188

$1.49

$

In Stock, Qty 20+

0

46

Gravely 06537700

Nut-Jam .75-10

$2.49

$

In Stock, only 2 left!

0

47

Gravely 06944800

Clip-Spring

$0.99

$

In Stock, Qty 20+

0

48

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 06534800

Nut-Locking-Flange Grade.A .375-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 06216100

Bolt-Round-Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0
