915014 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 001103 & Above) Parking Brake And Dump Valves Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

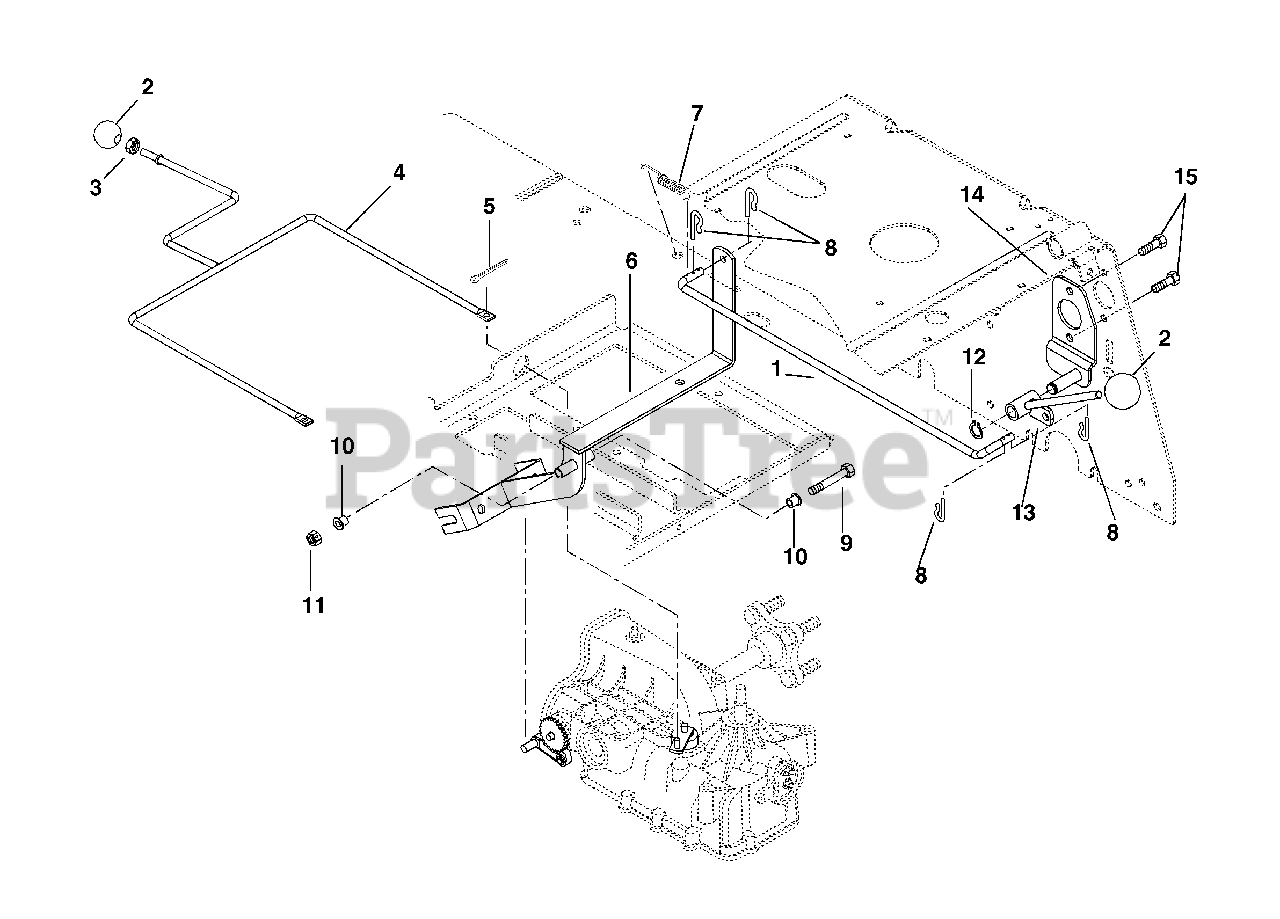

Parking Brake And Dump Valves Parts Diagram

  • Title

1

Ariens 01555600

ROD - BRAKE

$

$

Not available

2

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

$21.99

$

In Stock, only 2 left!

0

3

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

4

Ariens 01540100

DUMP VALVE WELDMENT

$

$

Not available

5

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 01545300

BRAKE WELDMENT
(Superseded to 01560551)

$73.99

$

In Stock, only 1 left!

0

7

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

In Stock, only 1 left!

0

8

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 05966300

@BLT-HEX .25-20X3.00 YWZC
(Superseded to 05902128)

$

$

Not available

10

Ariens 05521000

BSHG-FLG .257X.38X1.080 NYL

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

13

Ariens 01555900

BRAKE LEVER

$

$

Not available

14

Ariens 01555800

PIVOT - BRAKE LEVER

$

$

Not available

15

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0
