915014 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 001103 & Above) Hanger Arm (48" Decks Only) Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

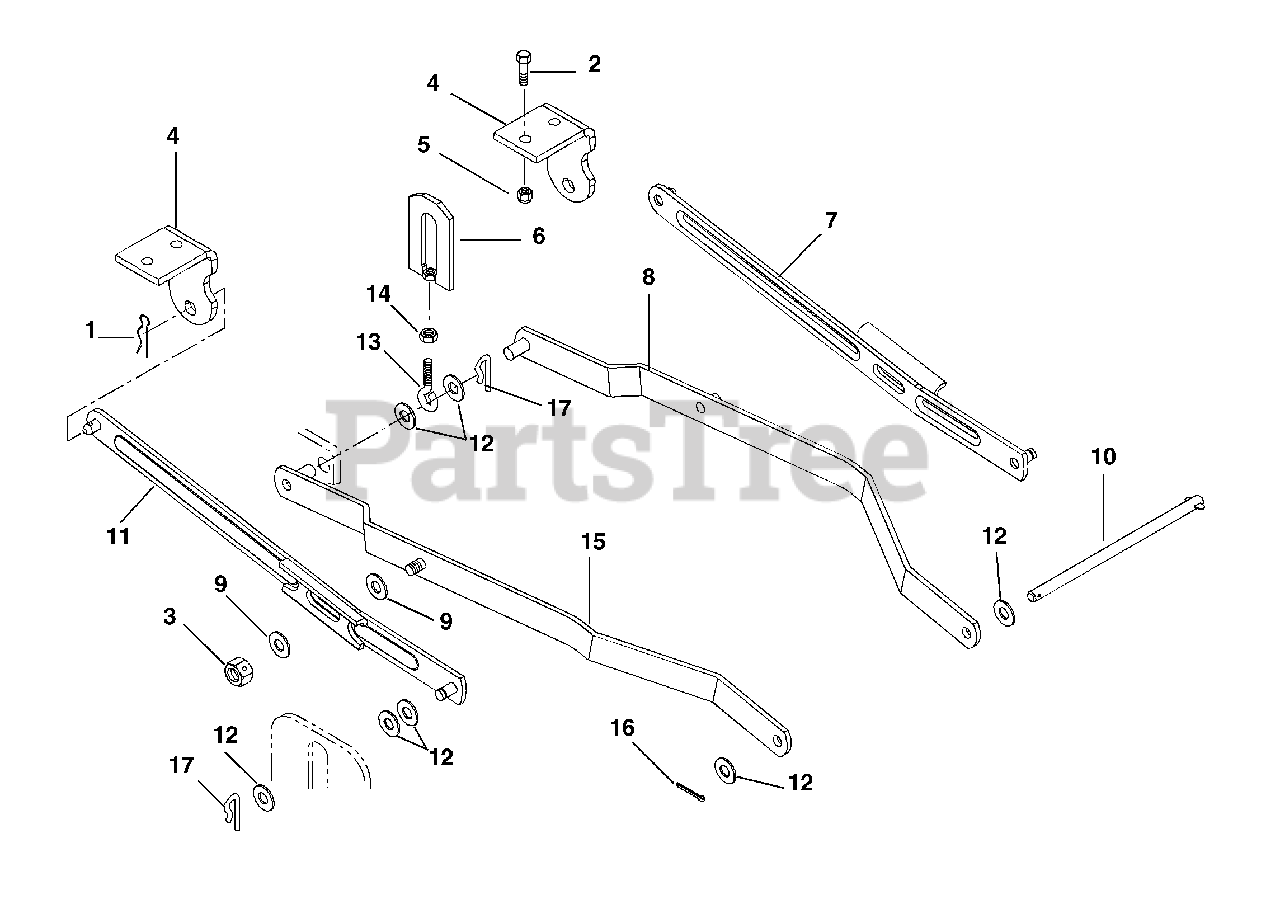

Hanger Arm (48" Decks Only) Parts Diagram

  • Title

1

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

2

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 01519500

REAR HANGER
(Superseded to 01519551)

$

$

Not available

5

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01563300

WELDMENT, ADJUSTMENT LINK

$51.99

$

Usually ships in 4-12 days

0

7

Ariens 01587451

HANGER, REAR LH

$

$

Not available

8

Ariens 01587251

ARM, LIFT LH

$

$

Not available

9

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 01535900

PIN

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 01587551

HANGER, REAR RH

$

$

Not available

12

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

14

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01587351

ARM, LIFT RH

$

$

Not available

16

Ariens 06712300

@PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.49

$

In Stock, Qty 5

0

17

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0
