915014 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 001103 & Above) Bumpers Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

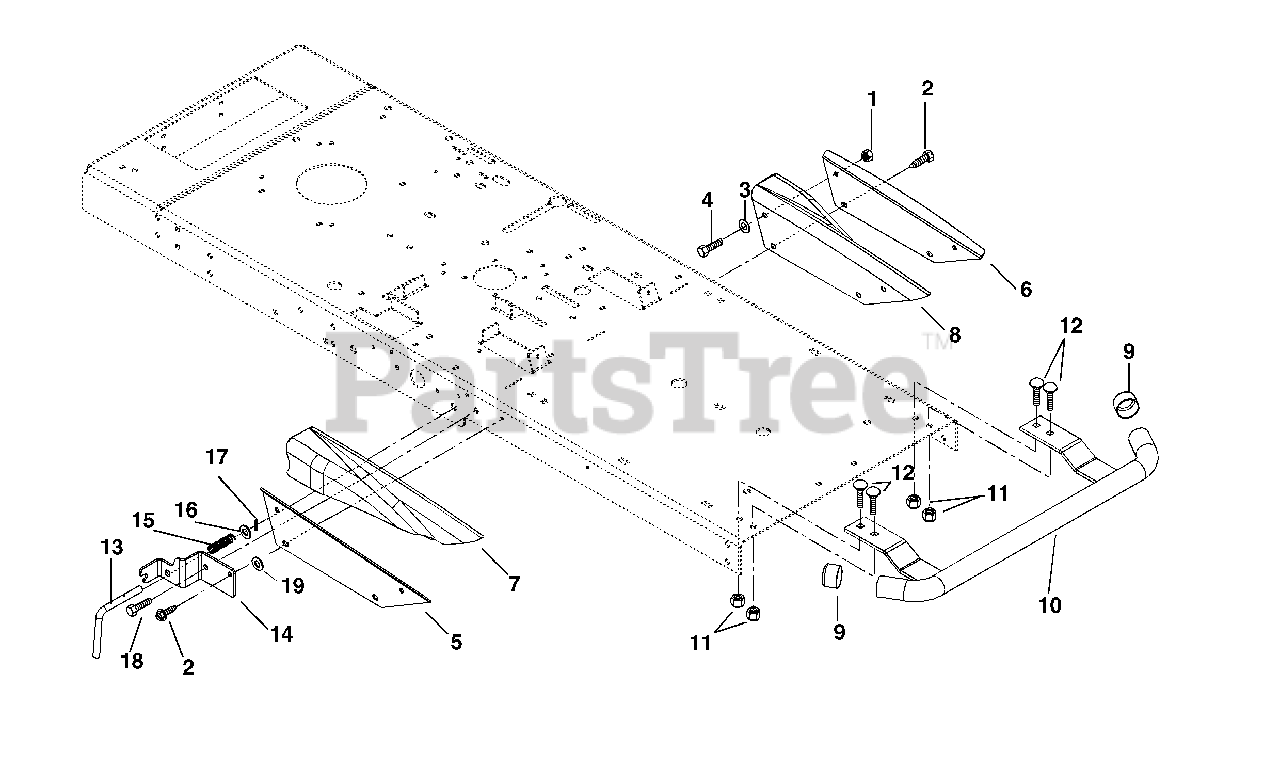

Bumpers Parts Diagram

  • Title

1

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

3

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 01555559

BRACKET, RAIL SUPPORT RH

Note: (Models 014, 018, 307)

$

$

Not available

6

Ariens 01554159

BRACKET, RAIL SUPPORT LH

Note: (Models 014, 018, 307)

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 01552759

RAIL, SIDE RH

Note: (Models 014, 018, 307)

$34.99

$

Usually ships in 4-12 days

0

8

Ariens 01551459

RAIL, SIDE LH

Note: (Models 014, 018, 307)

$34.99

$

Usually ships in 4-12 days

0

9

Ariens 01555100

SLEEVE CAP

Note: (Models 014, 018, 307)

$

$

Not available

10

Ariens 01555751

BUMPER, WLDM'T

Note: Models 014, 018, 307)

$

$

Not available

11

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

Note: (Models 014, 018, 307)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (Models 014, 018, 307)

$2.49

$

In Stock, Qty 10

0

13

Ariens 01558800

PIN-INDEX

$

$

Not available

14

Ariens 01558751

BRACKET-STOP

$

$

Not available

15

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

16

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

Note: (Models 013, 017)

$2.49

$

In Stock, Qty 20+

0
