915014 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 001103 & Above) 48" Mower Pan Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

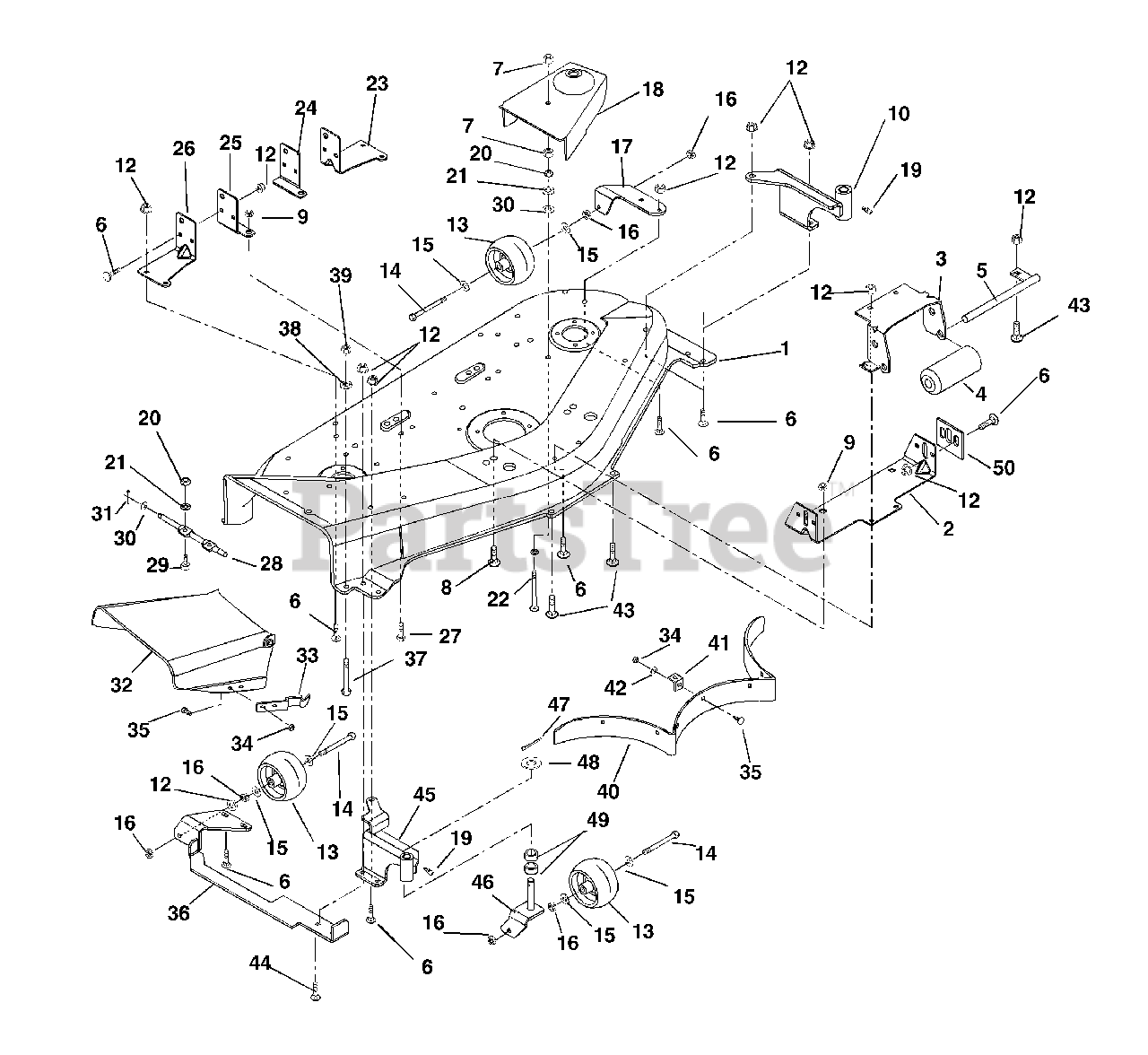

48" Mower Pan Parts Diagram

  • Title

1

Ariens 53401700

MOWER PAN W/DECALS 48"- ORANGE

Note: (Model 014)

$

$

Not available

2

Ariens 01521251

FRONT HANGER

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 03435151

BRACKET, ROLLER

$81.99

$

Usually ships in 4-12 days

0

4

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

5

Ariens 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06224600

@BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

9

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

10

Ariens 01535659

WELDMENT-LEFT FRONT

$

$

Not available

11

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

14

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 01535359

BRACKET-LEFT REAR

$

$

Not available

18

Ariens 03095859

R.H. BELT COVER
(Superseded to 03095851)

$71.99

$

Usually ships in 4-12 days

0

18

Ariens 03095959

COVER, LEFT HAND

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

20

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06223500

BLT-RDHDSQNK .312-18X3.25 YWZC

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 01535851

LH REAR HANGER

$38.99

$

Usually ships in 4-12 days

0

24

Ariens 01521651

LEFT HAND REAR HANGER SUPPORT

$17.99

$

Usually ships in 4-12 days

0

25

Ariens 01521451

RH REAR HANGER SUPPORT

$46.99

$

Usually ships in 4-12 days

0

26

Ariens 01535751

RH REAR HANGER
(Superseded to 01535700)

$56.99

$

Usually ships in 4-12 days

0

27

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

29

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

32

Ariens 03034959

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

Usually ships in 4-12 days

0

33

Ariens 00318559

FLAT SPRING - ORANGE
(Superseded to 01597751)

$20.99

$

Usually ships in 4-12 days

0

34

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 01535459

WELDMENT-RIGHT REAR

$

$

Not available

37

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

38

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

39

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 03434251

BAFFLE
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

41

Ariens 03434351

BAFFLE TAB

$

$

Not available

42

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 01535559

WELDMENT-RIGHT FRONT
(Superseded to 01563659)

$

$

Not available

46

Ariens 01534659

WELDMENT-CASTER FORK

$65.99

$

In Stock, only 2 left!

0

47

Ariens 06712700

@PIN-CTR .18X1.25 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

48

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0

50

Ariens 01528751

MOWER ADJUSTMENT TAB

$

$

Not available
