915010 (EZR 1540) - Ariens 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 & Above) Electrical - 15 HP Kohler Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

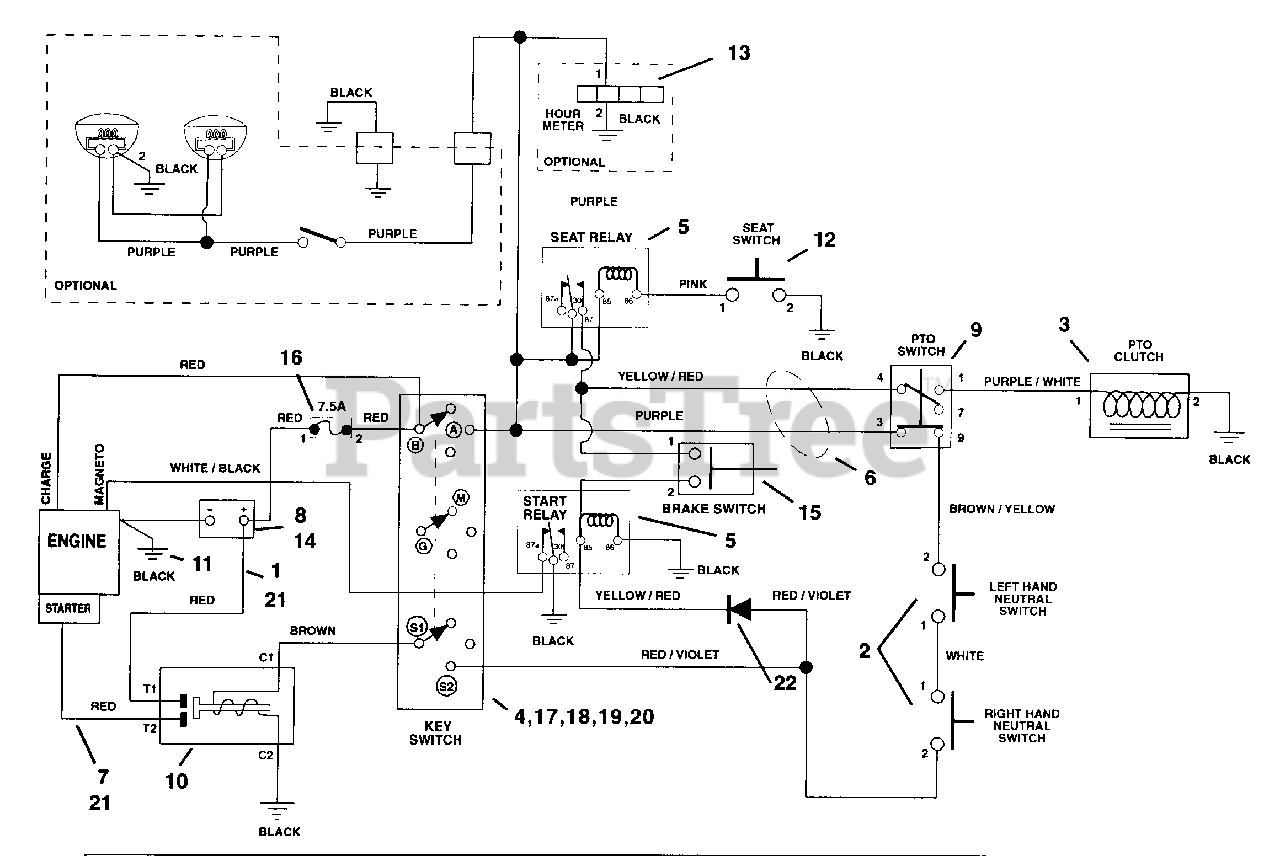

Electrical - 15 HP Kohler Parts Diagram

  • Title

1

Ariens 08987000

CBL,BATTERY TO SOLENOID

$51.99

$

In Stock, only 1 left!

0

2

Ariens 01526100

SWITCH, NEUTRAL START N.O.

$55.99

$

In Stock, only 1 left!

0

3

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

$491.99

$

In Stock, only 1 left!

0

4

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, only 1 left!

0

5

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

6

Ariens 01536600

HARNESS, WIRE - 1540

$

$

Not available

7

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

8

Ariens 03621100

BATTERY W/ TUBE

$

$

Not available

9

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

10

Ariens 03057700

SOLENOID

$

$

Not available

11

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

12

Ariens 03654200

SWITCH- SEAT

$

$

Not available

13

Ariens 03492700

HOUR METER
(Superseded to 09497400)

Note: (Optional)

$23.99

$

In Stock, only 3 left!

0

14

Ariens 02530700

RUBBER PAD

$

$

Not available

15

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

16

30 AMP Fuse

$

$

Not available

17

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

18

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

20

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

21

Ariens 03384700

BOOT, INSULATOR

$

$

Not available

22

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

Usually ships in 4-12 days

0
