915009 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Parking Brake And Dump Valves Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

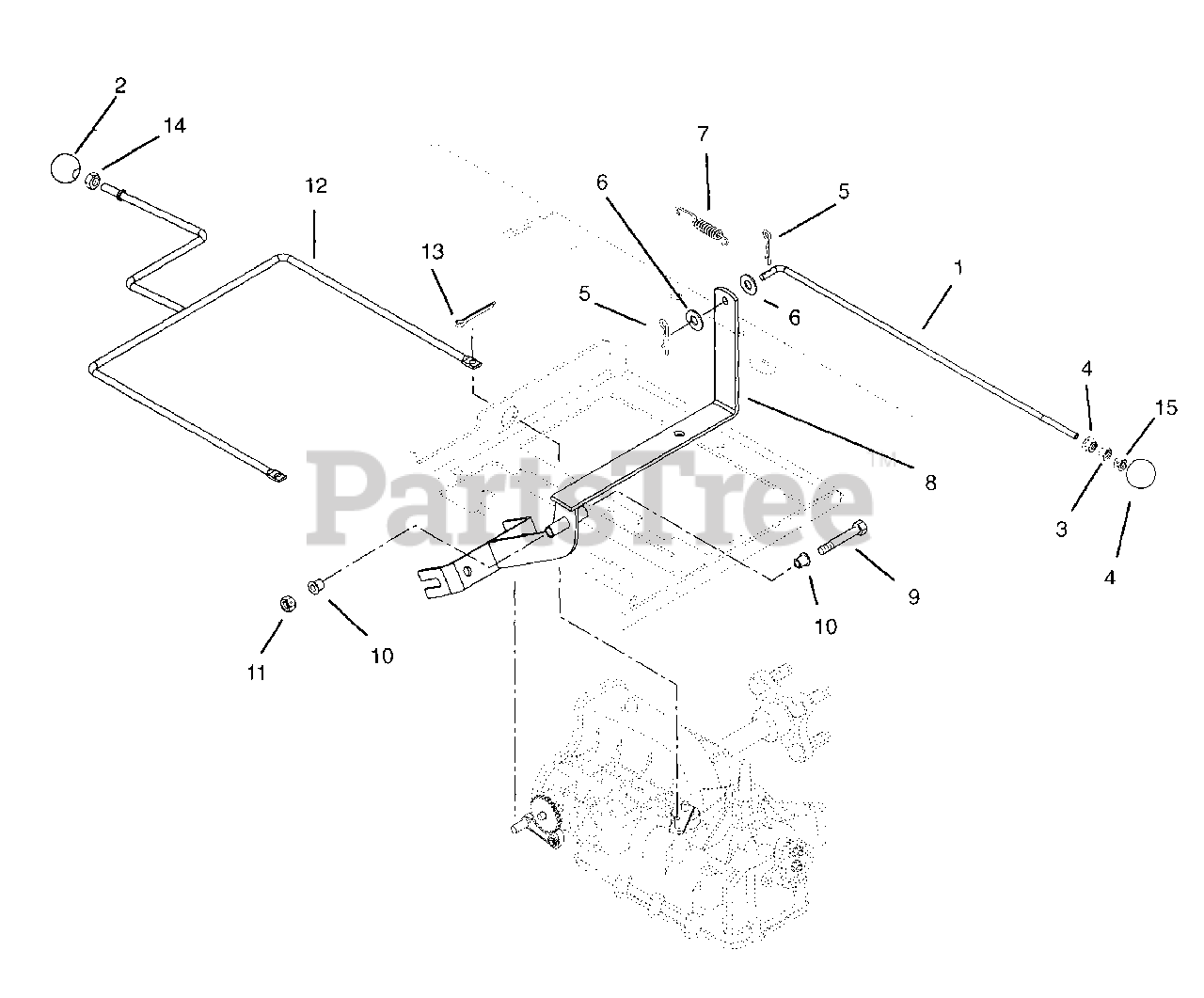

Parking Brake And Dump Valves Parts Diagram

  • Title

1

Ariens 01540200

BRAKE ROD

$

$

Not available

2

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

$21.99

$

In Stock, only 2 left!

0

3

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

4

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

In Stock, only 1 left!

0

8

Ariens 01541300

BRAKE ARM WELDMENT

$12.24

$

Usually ships in 4-12 days

0

9

Ariens 05966300

@BLT-HEX .25-20X3.00 YWZC
(Superseded to 05902128)

$

$

Not available

10

Ariens 05521000

BSHG-FLG .257X.38X1.080 NYL

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 01540100

DUMP VALVE WELDMENT

$

$

Not available

13

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
