915009 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

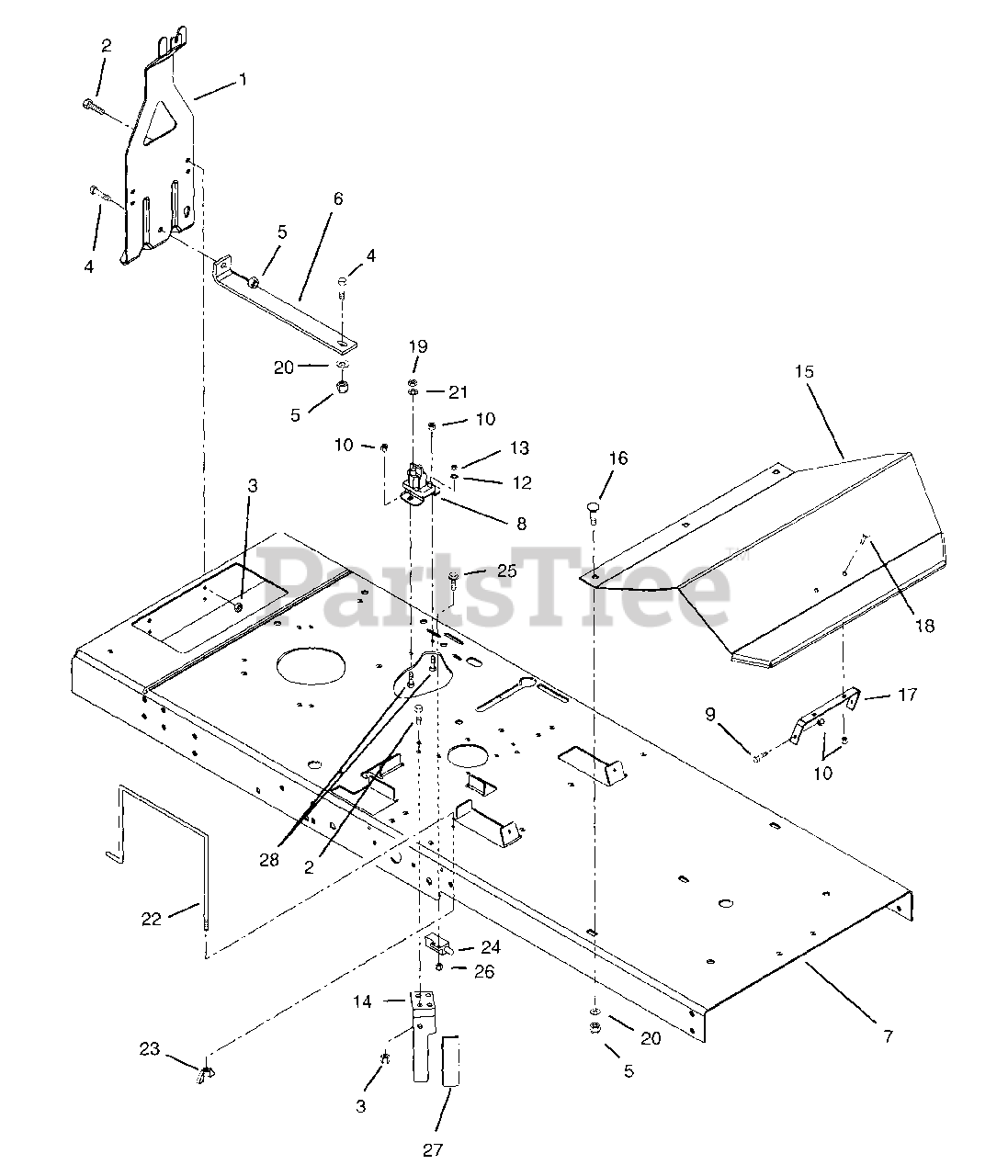

Frame Parts Diagram

  • Title
1

Ariens 01539600

HITCH, TRAILER
(Superseded to 01539659)

$14.99

$

Usually ships in 4-12 days

0

2

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

$

$

Not available

7

Ariens 01540700

FRAME
(Superseded to 01545259)

$

$

Not available

8

Ariens 03057700

SOLENOID

$

$

Not available

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

12

Ariens 06310400

@WSHR-LK-EXT.200X.402X.022YWZC

$1.99

$

In Stock, only 1 left!

0

13

Ariens 06536800

NUT 10-32 YWZC

$1.49

$

In Stock, only 1 left!

0

14

Ariens 01543800

CLUTCH STOP

$

$

Not available

15

Ariens 01538000

FOOTREST

$

$

Not available

16

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 01526700

BRACKET, FOOTREST
(Superseded to 01526751)

$18.99

$

Usually ships in 4-12 days

0

18

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

20

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

22

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

23

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

24

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

25

Ariens 07049200

BLT-HEX FWH #10X.750 YWZC

$

$

Not available

26

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

27

$

$

Not available

28

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0
