915009 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Cover Assembly Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

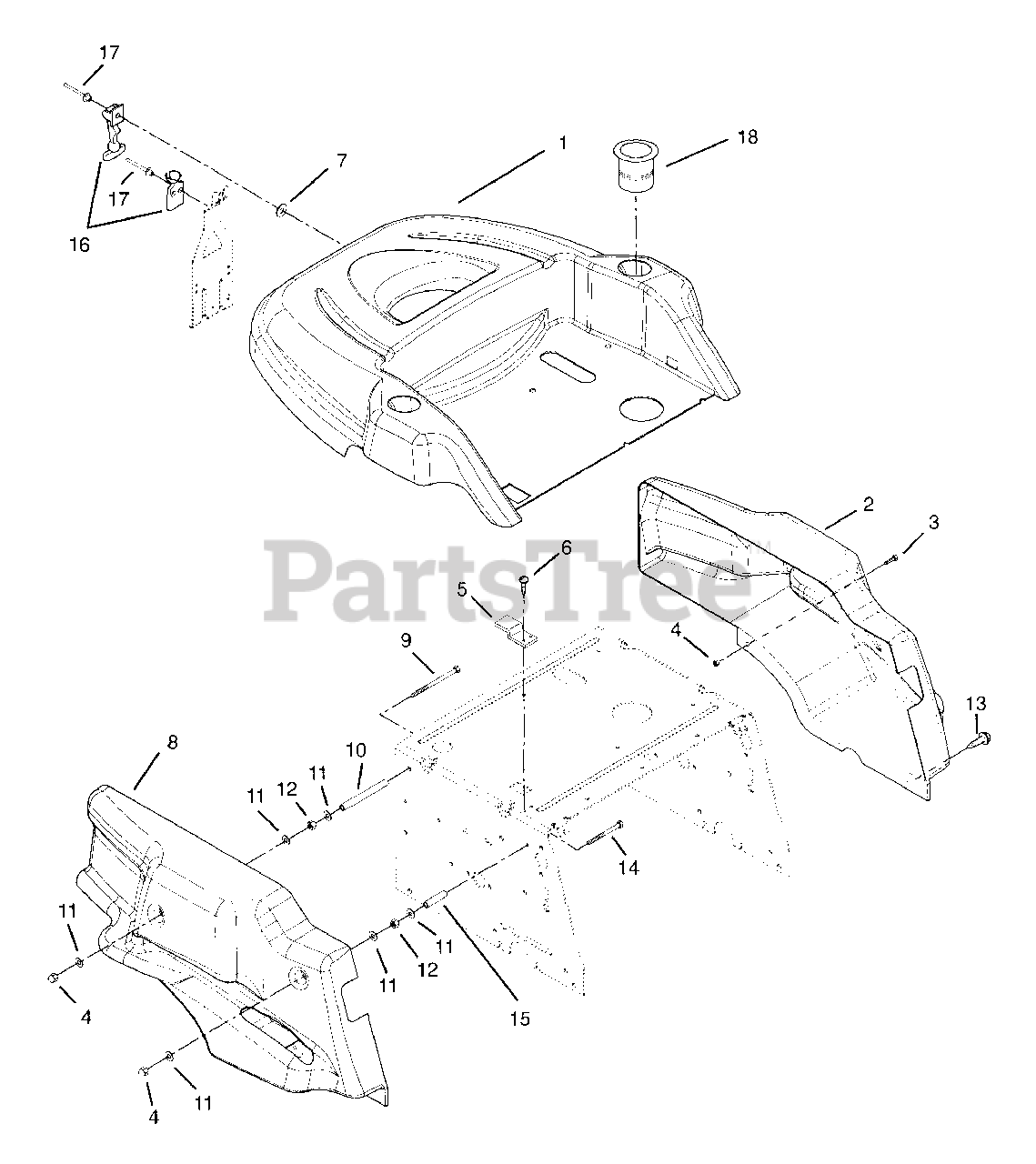

Cover Assembly Parts Diagram

  • Title

1

Ariens 01537200

SHROUD, TOP

$391.99

$

Usually ships in 4-12 days

0

2

Ariens 01537000

SHROUD, SIDE LH
(Superseded to 51502800)

$

$

Not available

3

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 01539400

CLIP YWZC

$

$

Not available

6

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07010500

RVT-BURR .125X.505X.048

$5.49

$

In Stock, only 3 left!

0

8

Ariens 01537100

SHROUD, SIDE RH
(Superseded to 51502800)

$

$

Not available

9

Ariens 05957600

@BLT-HEX .31-18X5.50 GR5 YWZC
(Superseded to 05901926)

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 01539200

SPACER, .328 X .462 X 4.42 YWZ

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

13

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

14

Ariens 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

15

Ariens 01539300

SPACER, .328 X .462 X 1.92 YWZ

$

$

Not available

16

Ariens 08704700

LATCH,FLEXIBLE

$25.99

$

Usually ships in 4-12 days

0

17

Ariens 06813700

ABA46 BLIND RIVET (AB4-6A)

$

$

Not available

18

Ariens 01528500

CUPHOLDER

$15.99

$

In Stock, only 2 left!

0
