915009 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Clutch Shaft - Hydro Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

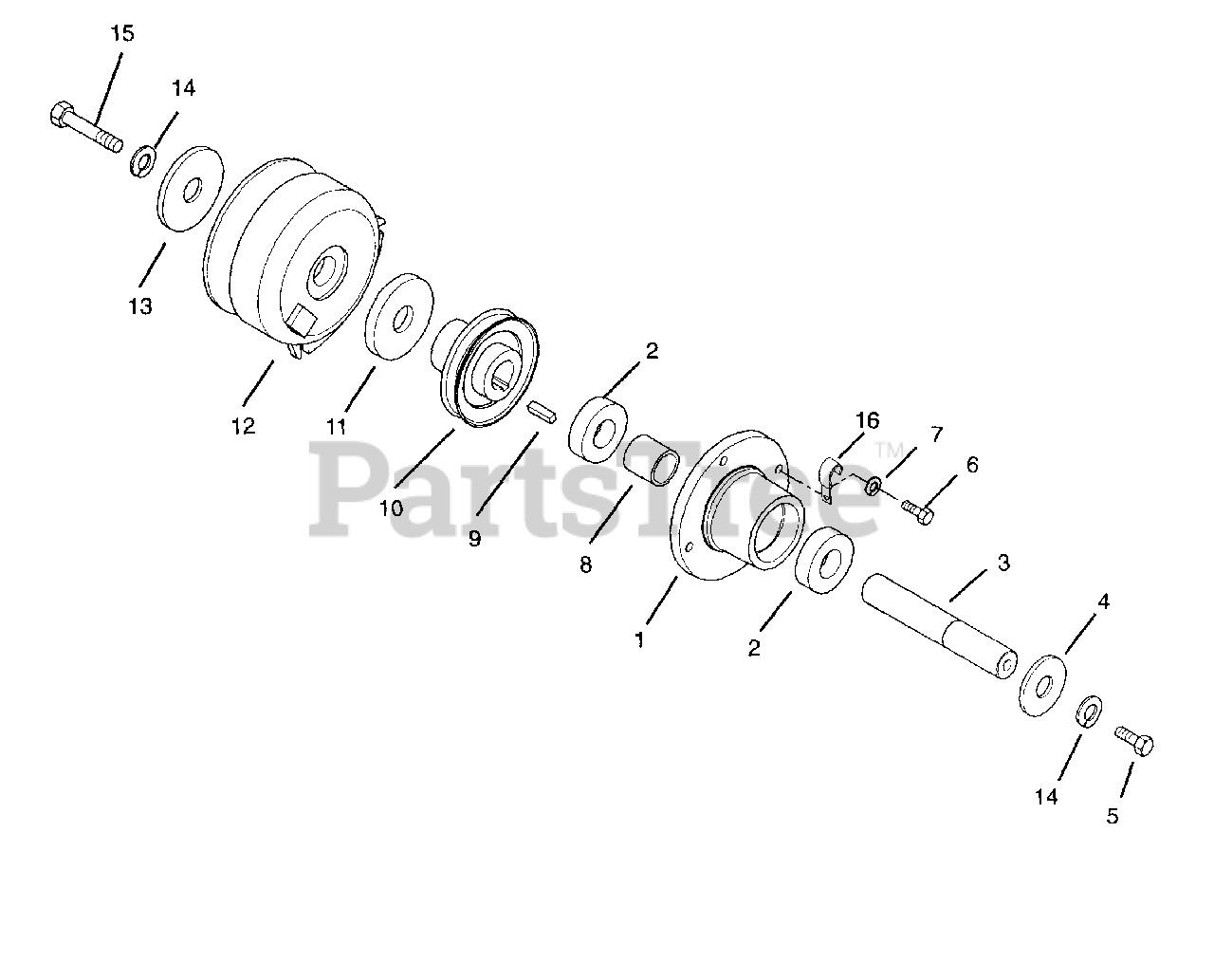

Clutch Shaft - Hydro Parts Diagram

  • Title

1

Ariens 00506751

HOUSING, TRANS SPNDL, BLACK

$184.99

$

Usually ships in 4-12 days

0

2

Ariens 05421500

BRG-BALL .984X2.04X.59

$13.99

$

In Stock, only 3 left!

0

3

Ariens 01531300

SHAFT, JACK

Note: (008,010,304)

$117.99

$

Usually ships in 4-12 days

0

3

Ariens 01532100

SHAFT 1540/1648

Note: (009,305)

$164.99

$

Usually ships in 4-12 days

0

4

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 05964500

BLT-HEX .44-20X1.00 GR5 YWZC

$

$

Not available

6

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 00506800

SPACER 1.0X1.253X1.26

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, only 2 left!

0

10

Ariens 07323600

SHEAVE, JACKSHAFT

$68.99

$

Usually ships in 4-12 days

0

11

Ariens 01531400

SPACER 1.004X1.500X.740

Note: (008,010,304)

$30.99

$

In Stock, only 3 left!

0

11

Ariens 01543700

CLUTCH SPACER - 48"

Note: (009,305)

$

$

Not available

12

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

Note: (008,304,)

$258.99

$

In Stock, only 1 left!

0

12

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

Note: (009,305)

$491.99

$

In Stock, only 1 left!

0

12

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Note: (010)

$296.99

$

Usually ships in 4-12 days

0

13

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

14

Ariens 06310700

WSHR-LK .438X.133 HVY YWZC

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

Note: (008,010,304)

$2.49

$

In Stock, only 1 left!

0

15

Ariens 05958800

BLT-HEX .44-20X1.5 YWZC
(Superseded to 05902004)

Note: (009,305)

$5.99

$

In Stock, Qty 5

0

16

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0
