915009 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Belt Idlers Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

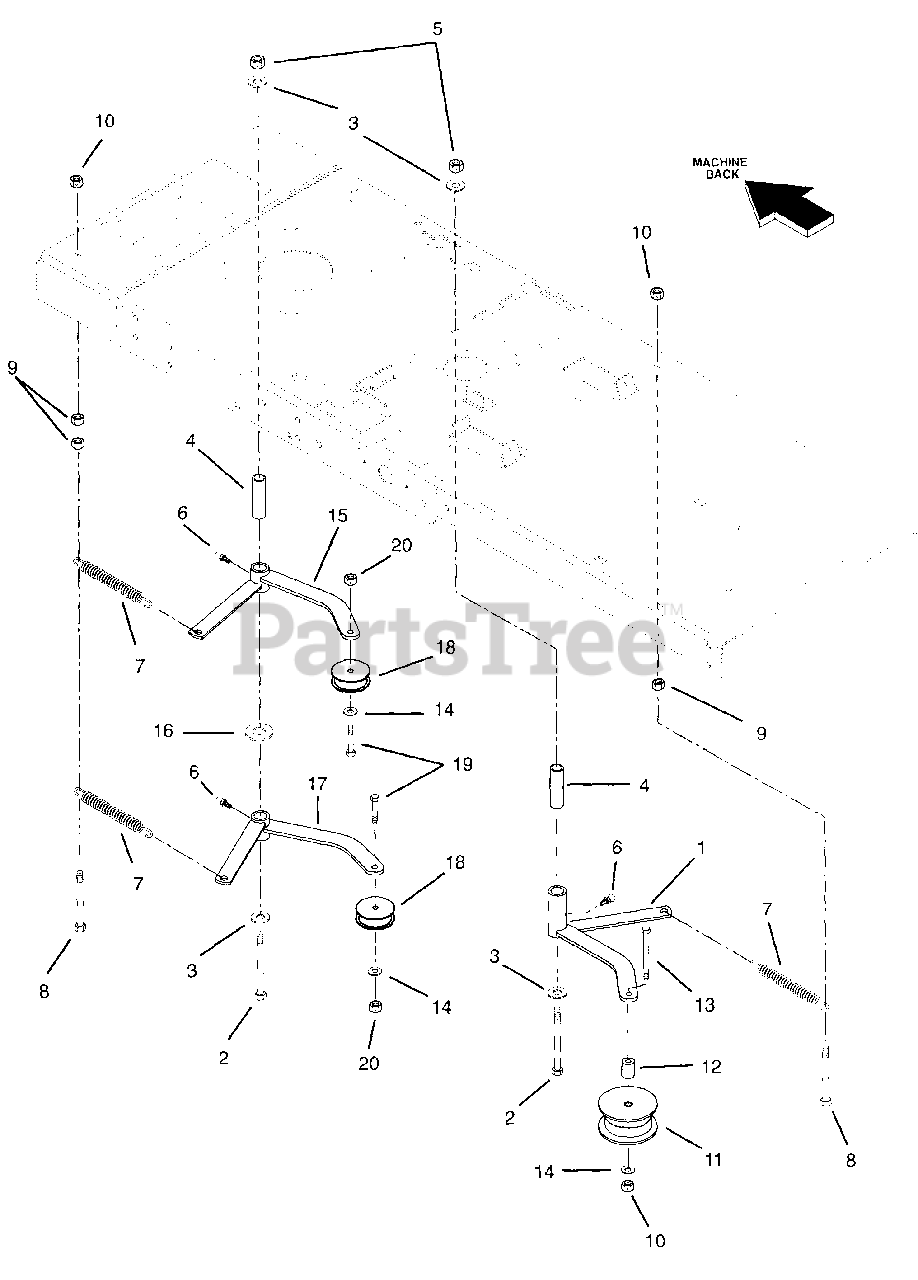

Belt Idlers Parts Diagram

  • Title
1

Ariens 01544900

IDLER ARM, CLUTCH TO DECK

$

$

Not available

2

Ariens 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

3

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

4

Ariens 01544500

IDLER ARM SPACER

$42.99

$

In Stock, only 1 left!

0

5

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

6

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

7

Ariens 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

8

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07324700

IDLER 4.0" DIA

$83.99

$

In Stock, only 3 left!

0

12

Ariens 01544000

SPACER, IDLER - 40"

Note: (models with 40" decks)

$

$

Not available

Ariens 01544100

SPACER, IDLER - 48"

Note: (models with 48" decks)

$37.99

$

In Stock, only 1 left!

0

13

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01543500

IDLER ARM WELD - ENG TO CLUTCH
(Superseded to 01548200)

$165.99

$

Usually ships in 4-12 days

0

16

Ariens 06445500

WASHER, .937 X 2.25 YWZC

$5.99

$

In Stock, only 1 left!

0

17

Ariens 01543400

IDLER ARM WELD. TRANSAXLE

$

$

Not available

18

Ariens 07324600

IDLER 3.5" DIA

$

$

Not available

19

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

20

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0
