915008 (EZR 1540) - Ariens 40" Zero-Turn Mower, 15hp Briggs & Stratton (SN: 000101 & Above) Attachment Lift Parts Diagram

40" Zero-Turn Mower, 15hp Briggs & Stratton

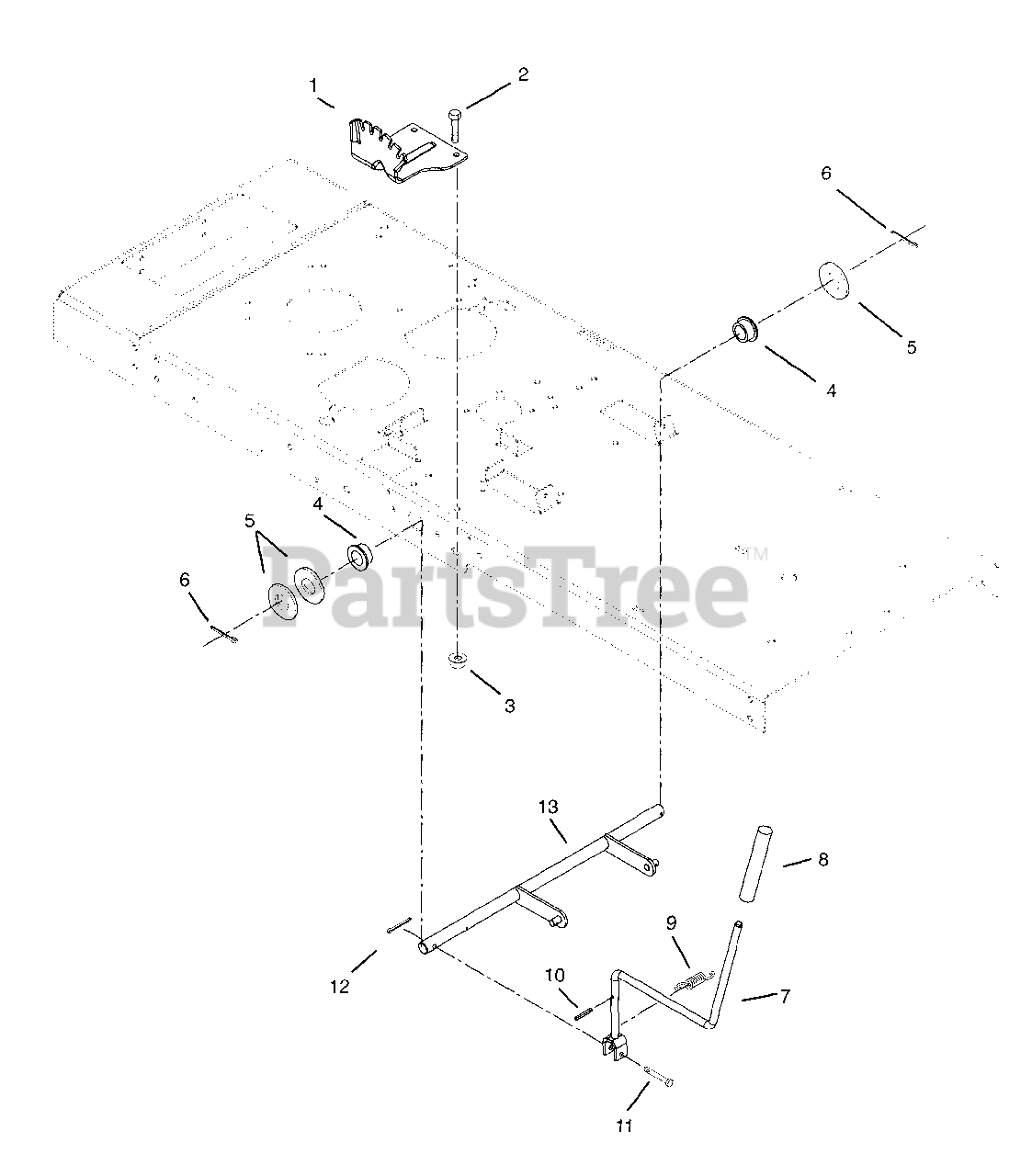

Attachment Lift Parts Diagram

  • Title

1

Ariens 01530800

DETENT PLATE
(Superseded to 01530859)

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 12

0

5

Ariens 06430000

WSHR-FL-STL 1.062X2.000X.134
(Superseded to 06443000)

$3.99

$

In Stock, only 3 left!

0

6

Ariens 06712800

@PIN-CTR .18X1.50 EXTPRSQCT YZ

$1.99

$

In Stock, only 2 left!

0

7

Ariens 01532000

LIFT LEVER WELDMENT

$

$

Not available

8

Ariens 07527500

GRIP

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 08322900

SG-TENS .120X1.0X4.46 WLD 47

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 05800600

PIN-ROLL .250X1.00

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 06813300

PIN-CLEV .370X1.75

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

13

Ariens 01527500

LIFT SHAFT WELDMENT

$74.99

$

Usually ships in 4-12 days

0
