915006 (EZR 1640) - Ariens 40" Zero-Turn Mower, 16hp Tecumseh (SN: 000101 & Above) Transmission And Wheels Parts Diagram

40" Zero-Turn Mower, 16hp Tecumseh

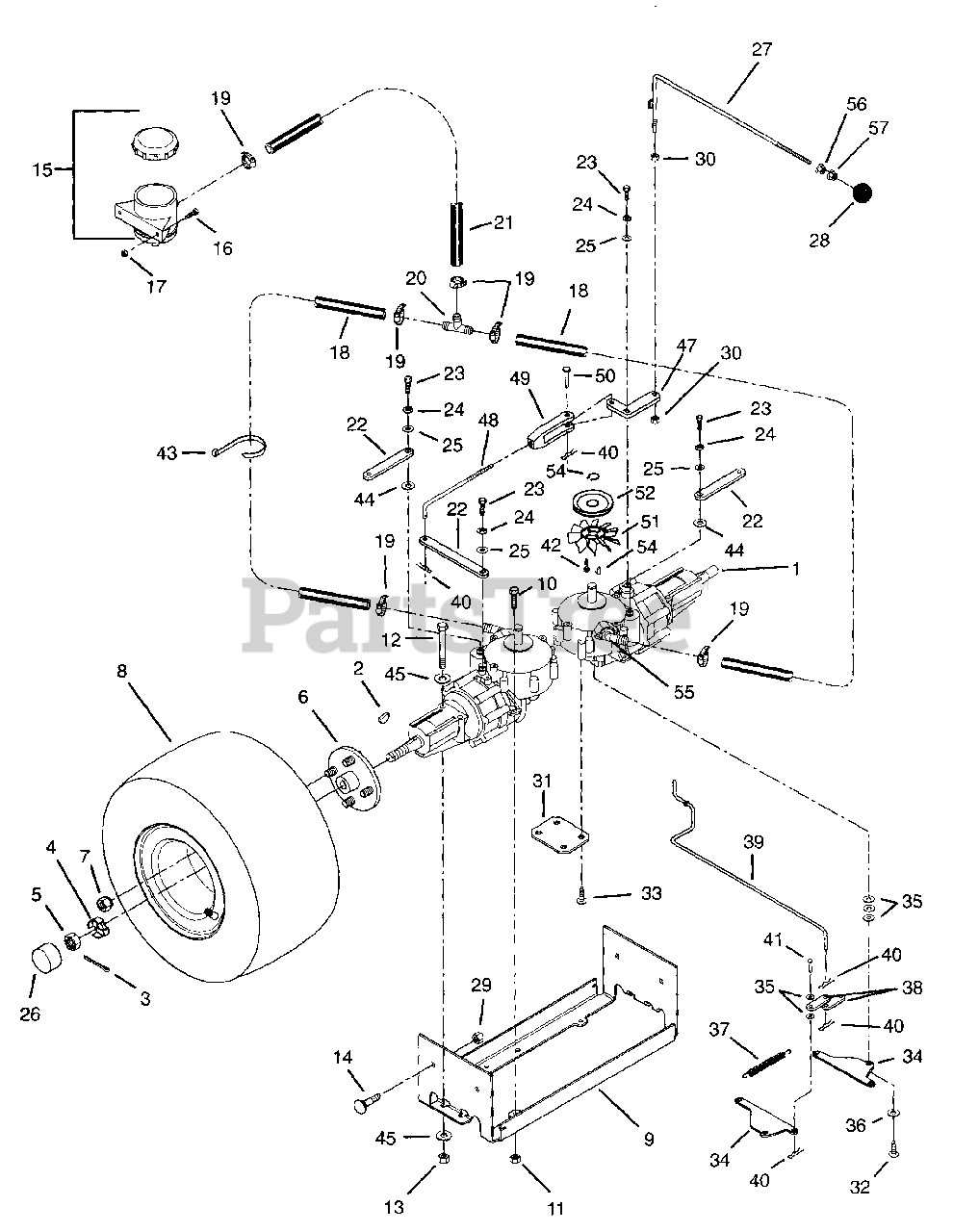

Transmission And Wheels Parts Diagram

  • Title

1

Ariens 01533200

RIGHT ANGLE TRANSAXLE

$

$

Not available

2

Ariens 06606300

KEY-WDRF .25X1.00X.438 SAE15

$

$

Not available

3

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

4

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

5

Ariens 06528300

NUT-HEX-SL .75-20

$

$

Not available

6

Ariens 01526800

HUB

$148.99

$

Usually ships in 4-12 days

0

7

Ariens 06525400

NUT-LUG .50-20 PL
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07144600

T/WHL ASSY 18X8.50-8

$

$

Not available

Ariens 07144900

RIM FOR 18X8.50-800 TIRE

$

$

Not available

Ariens 07145100

TIRE 18X8.50-8
(Superseded to 07101220)

$113.99

$

In Stock, only 1 left!

0

9

Ariens 01519200

BRACKET, TRANSAXLE
(Superseded to 01552500)

$245.99

$

Usually ships in 4-12 days

0

10

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05923400

BLT-HEX .38-16X3.25 PL GR5
(Superseded to 05961100)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

14

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

15

Ariens 01518400

EXPANSION TANK

$

$

Not available

16

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

18

Ariens 01524100

HOSE

$

$

Not available

19

Ariens 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

In Stock, Qty 6

0

20

Ariens 01517800

FITTING - TEE 5/8 BEADED

$

$

Not available

21

Ariens 01524200

HOSE

$

$

Not available

22

Ariens 01519100

CONTROL ARM, TRANS

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 05901500

BLT-HEX .25-28X.75 PL GR5
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

24

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

27

Ariens 01537800

BRAKE ROD WELDMENT

$

$

Not available

28

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

$21.99

$

In Stock, only 2 left!

0

29

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 01521000

PLATE, TRANSMISSION LINK

$

$

Not available

32

Ariens 07402300

SCR-TAP .312-18X1.0 HWH PL TR
(Superseded to 07413900)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

34

Ariens 01521100

PLATE, DUMP VALVE

$

$

Not available

35

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

37

Ariens 08335000

SG-TENS .062X.50X3.1 WLD4

$20.99

$

Usually ships in 4-12 days

0

38

Ariens 01531100

LINK, DUMP VALVE

$

$

Not available

39

Ariens 01532200

ROD, DUMP VALVE

$

$

Not available

40

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 06814400

PIN-CLEV .31X.75

$

$

Not available

42

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 04003800

TIE WRAP

$

$

Not available

44

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

46

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 01528100

BRAKE ARM

$

$

Not available

48

Ariens 01527800

BRAKE SHAFT

$56.99

$

Usually ships in 4-12 days

0

49

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

Usually ships in 4-12 days

0

50

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

51

Ariens 01528300

FAN - EATON TRANSAXLE

$

$

Not available

52

Ariens 01528400

PLY - EZR TRANSAXLE
(Superseded to 51502200)

$

$

Not available

53

Ariens 05706100

RG-RTNG-EXT .672X.035

$1.99

$

Usually ships in 4-12 days

0

54

Ariens 06610500

WOODRUFF KEY
(Superseded to 06601400)

$2.49

$

In Stock, Qty 6

0

55

Ariens 01528900

FITTING 45DEG ELBOW

$52.99

$

Usually ships in 4-12 days

0

56

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0
