915006 (EZR 1640) - Ariens 40" Zero-Turn Mower, 16hp Tecumseh (SN: 000101 & Above) Front Axle Parts Diagram

40" Zero-Turn Mower, 16hp Tecumseh

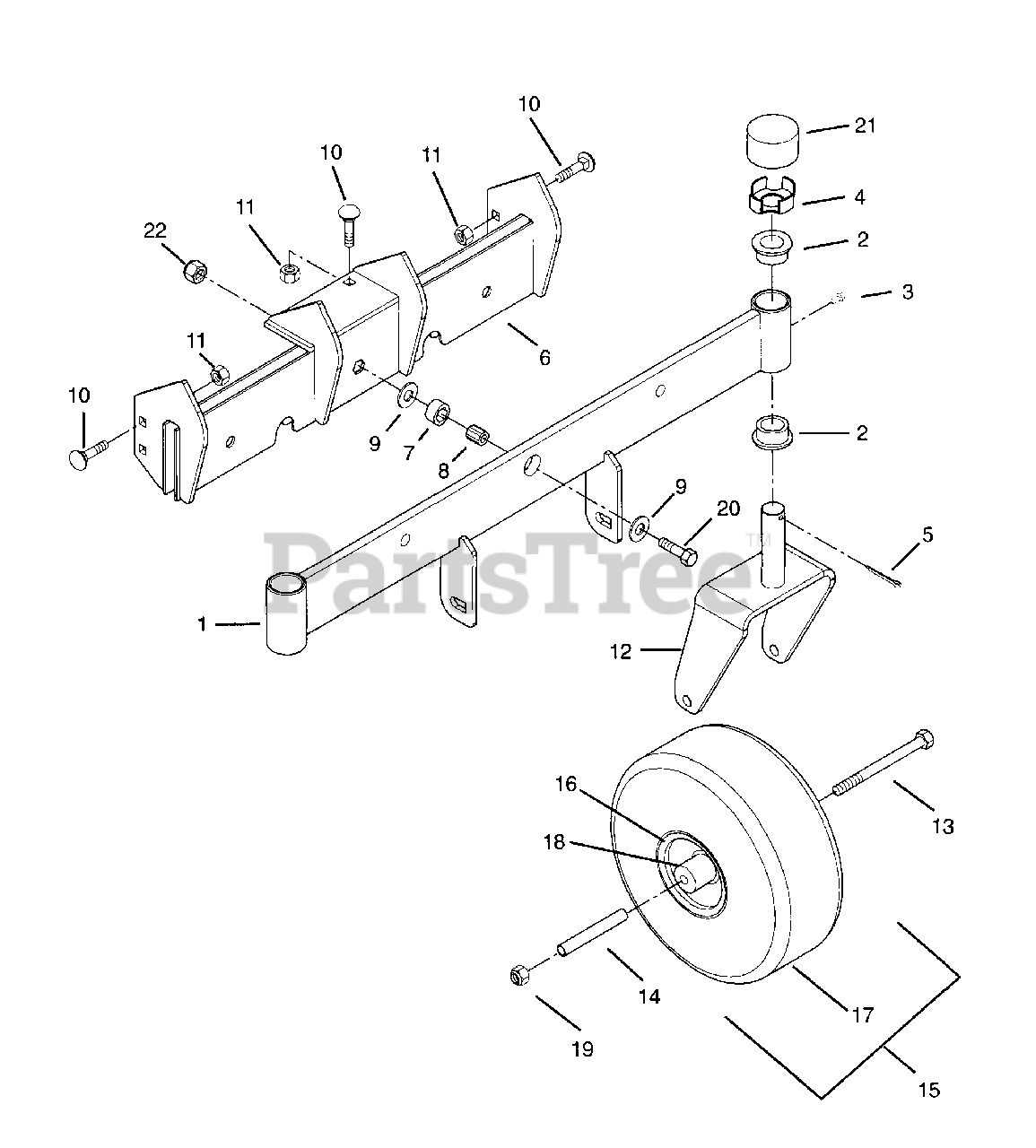

Front Axle Parts Diagram

  • Title
1

Ariens 01522400

AXLE WELDMENT

$85.99

$

Usually ships in 4-12 days

0

2

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 12

0

3

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

4

Ariens 01535100

SPINDLE CUP

$

$

Not available

5

Ariens 06704900

PIN-COTR .188X1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

6

Ariens 01538100

AXLE FRAME WELDMENT

$

$

Not available

7

Ariens 05522000

BSHG-SLV .626X1.000X.524 HEX

$90.99

$

Usually ships in 4-12 days

0

8

Ariens 05522700

BSHG-SLV .377X.623X.775 HEX

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 06421500

WSHR-FL-STL .380X1.50X.125 PL
(Superseded to 06443400)

$3.49

$

In Stock, Qty 9

0

10

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

11

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 01504600

WLDT,CASTER FORK
(Superseded to 01504651)

$

$

Not available

13

Ariens 05938500

BLT-HEX .50-13X6.50
(Superseded to 05964400)

$7.99

$

In Stock, only 3 left!

0

14

Ariens 09105200

BUSH.,CASTER FORK

$37.99

$

In Stock, only 3 left!

0

15

Ariens 07144100

T/WHL 11X4.00-5 RIBBED
(Superseded to 07100124)

Note: (Contains Items 16-18)

$74.99

$

In Stock, Qty 20+

0

16

Ariens 07145200

RIM ASSY 11X4.00-5

$68.99

$

Usually ships in 4-12 days

0

17

Ariens 07145300

TIRE RIBBED 11X4.00-5
(Superseded to 07101235)

$51.99

$

Usually ships in 4-12 days

0

18

Ariens 07145400

RIM BEARING-11X4.00-5 RIM
(Superseded to 05434900)

$13.99

$

In Stock, Qty 20+

0

19

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

20

Ariens 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

22

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0
