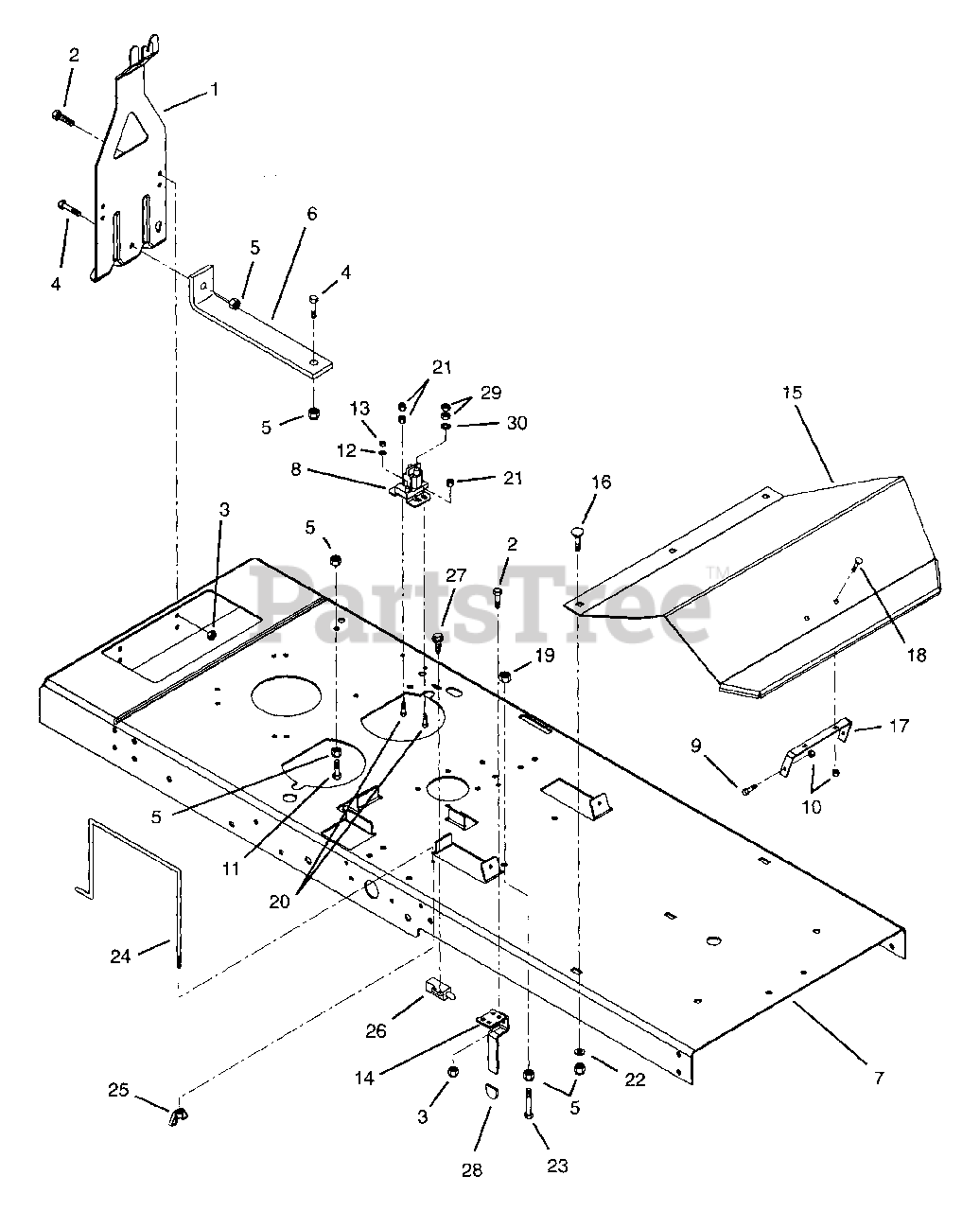

915006 (EZR 1640) - Ariens 40" Zero-Turn Mower, 16hp Tecumseh (SN: 000101 & Above) Frame Parts Diagram

40" Zero-Turn Mower, 16hp Tecumseh

Frame Parts Diagram

  • Title

1

Ariens 01531800

HITCH,TRAILER
(Superseded to 01539659)

$14.99

$

Usually ships in 4-12 days

0

2

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01531900

BRACE

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 01531500

FRAME

$

$

Not available

8

Ariens 03057700

SOLENOID

$

$

Not available

9

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

11

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

12

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$1.99

$

In Stock, only 1 left!

0

13

Ariens 06502600

NUT 10-32 PL

$

$

Not available

14

Ariens 01537900

CLUTCH STOP

$

$

Not available

15

Ariens 01538000

FOOTREST

$

$

Not available

16

Ariens 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

17

Ariens 01526700

BRACKET, FOOTREST
(Superseded to 01526751)

$18.99

$

Usually ships in 4-12 days

0

18

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

22

Ariens 06437700

WHSR-FL-.380X.875X.160
(Superseded to 06308900)

$

$

Not available

23

Ariens 05938400

BLT-HEX .38-16X5.00
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

24

Ariens 01531000

BATTERY ROD
(Superseded to 01533400)

$25.99

$

Usually ships in 4-12 days

0

25

Ariens 06517500

NUT-LK WING .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 19

0

26

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

27

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

28

Ariens 07509400

GRIP

$

$

Not available

29

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

$0.99

$

In Stock, Qty 13

0

30

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0
