915006 (EZR 1640) - Ariens 40" Zero-Turn Mower, 16hp Tecumseh (SN: 000101 & Above) Engine & Exhaust Parts Diagram

40" Zero-Turn Mower, 16hp Tecumseh

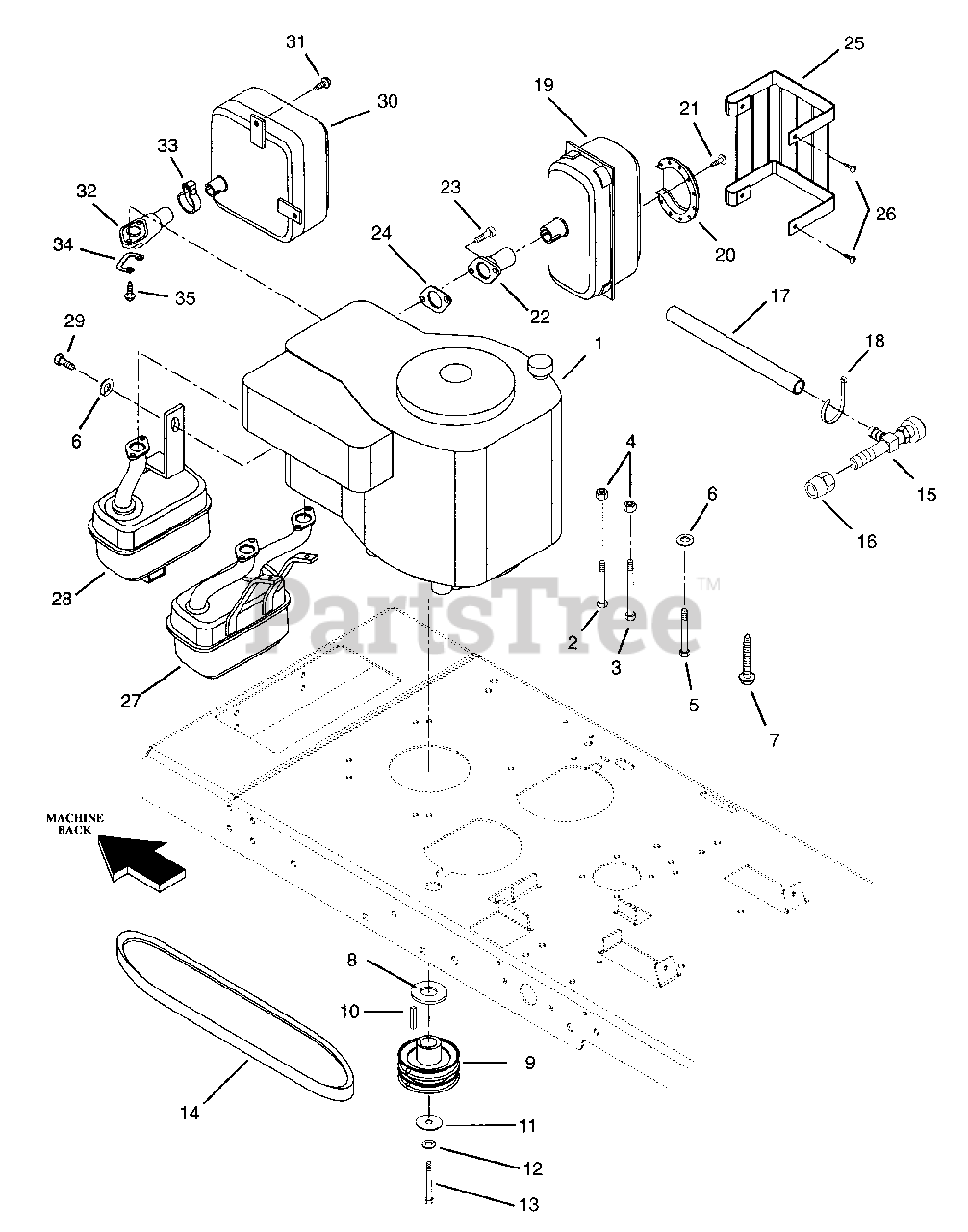

Engine & Exhaust Parts Diagram

  • Title

1

Ariens 08243000

ENGINE- 14.0 B&S VANGUARD SING

Note: (004,303)

$

$

Not available

1

Ariens 08245200

ENG- 15.0 KOHLER OHV PS-41531

Note: (005)

$

$

Not available

1

Ariens 08245100

ENGINE- 16.0 TEC OHV

Note: (006)

$

$

Not available

1

Ariens 08241500

ENGINE- 16.0 B&S VANGUARD TWIN

Note: (007,302)

$

$

Not available

2

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

Note: (004,303)

$2.49

$

In Stock, Qty 12

0

2

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

Note: (007,302)

$2.49

$

In Stock, Qty 12

0

3

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (004,303)

$1.49

$

In Stock, Qty 13

0

3

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (007,302)

$1.49

$

In Stock, Qty 13

0

4

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (004,007,302,303)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05931300

BLT-HEX M8 X 1.25X25 PL GR5
(Superseded to 05964900)

Note: (005)

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (005)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07408800

SCR-TAP .375-16X1.25 HWH PL TR
(Superseded to 07414700)

Note: (006)

$2.99

$

In Stock, only 3 left!

0

8

Ariens 06430000

WSHR-FL-STL 1.062X2.000X.134
(Superseded to 06443000)

$3.99

$

In Stock, only 3 left!

0

9

Ariens 07323500

PLY 3.75 W/1.00 ID AND KEYWAY

$91.99

$

Usually ships in 4-12 days

0

10

Ariens 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$5.99

$

In Stock, only 3 left!

0

11

Ariens 06426400

WSHR-SPECIAL .469X2.000X.250
(Superseded to 06443600)

$6.99

$

In Stock, only 3 left!

0

12

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 05910300

BLT-HEX .44-20X1.25 GR5

$

$

Not available

14

Ariens 07230700

V-BELT, 3L-RAW EDGE

$39.99

$

In Stock, only 1 left!

0

15

Ariens 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

16

Ariens 03493100

ADAPTER, OIL DRAIN

$5.99

$

Usually ships in 4-12 days

0

17

Ariens 01523400

TUBE OIL DRAIN

$

$

Not available

18

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

19

Ariens 01523000

MUFFLER B&S

Note: (004, 303)

$366.99

$

In Stock, only 1 left!

0

20

Ariens 01523200

DEFLECTOR B+S 222573

Note: (004, 303)

$

$

Not available

21

Ariens 01523300

SCREW B+S 93705

Note: (004, 303)

$

$

Not available

22

Ariens 01523100

MUFFLER ADAPT. PIPE B+S 496656

Note: (004, 303)

$

$

Not available

23

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (004, 303)

$2.49

$

In Stock, only 3 left!

0

24

Ariens 03652700

GASKET B&S#272293

Note: (004, 303)

$8.99

$

Usually ships in 4-12 days

0

25

Ariens 01528200

GUARD, MUFFLER

Note: (303)

$131.99

$

Usually ships in 4-12 days

0

26

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

Note: (303)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 01523600

MUFFLER ASSY.

Note: (007, 302)

$418.99

$

Usually ships in 4-12 days

0

27

Ariens 01538300

MUFFLER SHIELD

Note: (302); NS

$

$

Not available

28

Ariens 01523500

MUFFLER, KOHLER

Note: (005)

$

$

Not available

29

Ariens 05916800

BLT-HEX .31-18X.50 GR5

Note: (005)

$

$

Not available

30

Ariens 01537700

MUFFLER ASSY.

Note: (006)

$

$

Not available

31

Ariens 07404900

SCR-TAP .25-20X.50 HWHPL
(Superseded to 07400122)

Note: (006)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 01537600

MANIFOLD-EXHAUST

Note: (006)

$75.99

$

Usually ships in 4-12 days

0

33

Ariens 06939000

CLAMP, MUFFLER

$

$

Not available

34

Ariens 01537500

PLATE, LOCK

$

$

Not available

35

Ariens 07050800

SCREW SPECIAL (MANIFOLD)

Note: (Manifold)

$

$

Not available
