915006 (EZR 1640) - Ariens 40" Zero-Turn Mower, 16hp Tecumseh (SN: 000101 & Above) Belt Idlers Parts Diagram

40" Zero-Turn Mower, 16hp Tecumseh

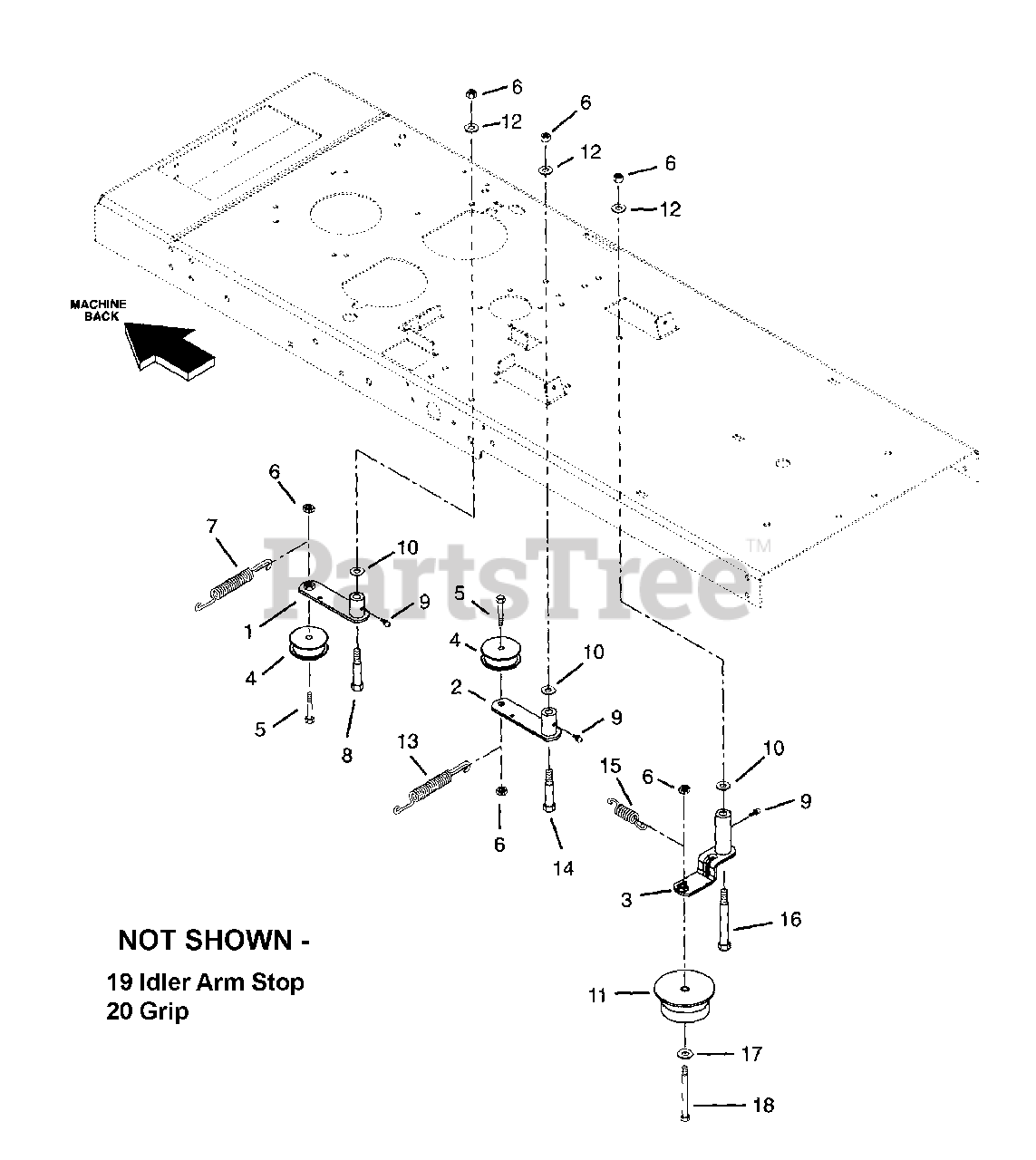

Belt Idlers Parts Diagram

  • Title

1

Ariens 01536300

IDLER ARM - TRANS/ENG

$

$

Not available

2

Ariens 01536200

IDLER ARM CLUTCH/ENG

$

$

Not available

3

Ariens 01536400

ARM - IDLER PIVOT

$

$

Not available

3

Ariens 01544300

ARM, IDLER

Note: (515018,515019)

$

$

Not available

4

Ariens 07308900

IDLER - 2.25X.87

$34.99

$

In Stock, only 1 left!

0

4

Ariens 07325000

IDLER 3.00 - .75

Note: (515018,515019)

$

$

Not available

4

Ariens 07324900

V - IDLER 3.0" - 3L

Note: (515018,515019)

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, Qty 6

0

6

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 08332700

SG-TENS
(Superseded to 08334900)

$28.99

$

In Stock, Qty 8

0

7

Ariens 08334900

SPRING - ENGINE - TRANS.

Note: (515018,515019)

$28.99

$

In Stock, Qty 8

0

8

Ariens 00592500

SCREW, SHLDR

$

$

Not available

9

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

10

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

11

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

11

Ariens 07324700

IDLER 4.0" DIA

Note: (515018,515019)

$83.99

$

In Stock, only 3 left!

0

12

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

12

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (515018,515019)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 08332800

SG-TENS
(Superseded to 08334800)

$34.99

$

In Stock, only 1 left!

0

13

Ariens 08334800

SPRING - ENG - JACK

Note: (515018,515019)

$34.99

$

In Stock, only 1 left!

0

14

Ariens 00590800

SCREW, .50 X 2.0 SHOULDER
(Superseded to 07070127)

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

15

Ariens 08334700

SPRING, EXT
(Superseded to 08300512)

Note: (515018,515019)

$17.99

$

In Stock, Qty 20+

0

16

Ariens 07050500

BLT-SHOULDER .50X3.75 LG

$11.99

$

In Stock, only 1 left!

0

16

Ariens 07052100

SHOULDER BOLT .50X3.50
(Superseded to 51503200)

Note: (515018,515019)

$

$

Not available

17

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, Qty 6

0

18

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

Note: (515018,515019)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 01544200

IDLER ARM STOP
(Superseded to 01545900)

Note: (515018,515019) NS

$

$

Not available

20

Ariens 07509400

GRIP

Note: (515018,515019) NS

$

$

Not available
