915005 (EZR 1540) - Ariens 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 & Above) Seat, Support & Fuel Tank Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

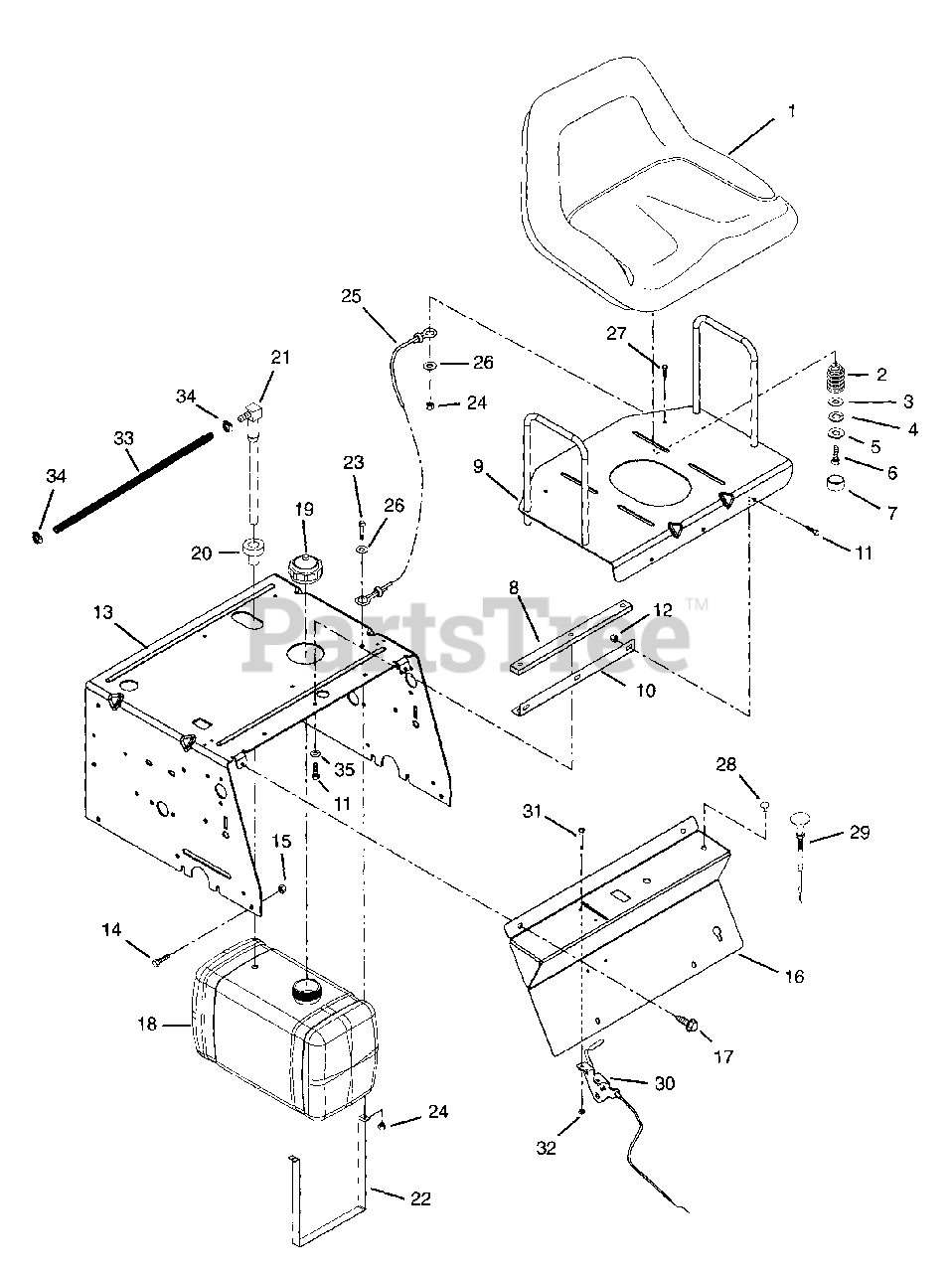

Seat, Support & Fuel Tank Parts Diagram

  • Title

1

Ariens 01522900

SEAT

$

$

Not available

2

Ariens 08328200

SG-COMP .148X1.23X2.41 WLD87

$15.99

$

In Stock, only 2 left!

0

3

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

6

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07521600

TUBE CAP

$1.49

$

In Stock, Qty 6

0

8

Ariens 08952500

PLT,CLAMPING
(Superseded to 01539100)

$

$

Not available

9

Ariens 01530500

SEAT PLATE WELDMENT

$

$

Not available

10

Ariens 03102800

HINGE-2" X 12.88 YWZC

$

$

Not available

11

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 01530100

SEAT SUPPORT

$

$

Not available

14

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 01531200

CONTROL PANEL
(Superseded to 01531259)

$

$

Not available

17

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 01522100

FUEL TANK

$

$

Not available

19

Ariens 03601900

FUEL CAP
(Superseded to 01538400)

$15.99

$

In Stock, only 1 left!

0

20

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

21

Ariens 08893600

FITTING, TANK

$20.99

$

Usually ships in 4-12 days

0

22

Ariens 08835900

STRP,FUEL TANK

$90.99

$

In Stock, only 1 left!

0

23

Ariens 05956000

BLT-HEX .25-20X2.00 FLLTHD GR5
(Superseded to 05965100)

$

$

Not available

24

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

25

Ariens 01537300

CABLE

$

$

Not available

26

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

27

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00529900

HOLE PLUG, PLASTIC .44 HOLE

Note: (004,005,006,303)

$

$

Not available

29

Ariens 06926100

CONTROL,CHOKE

Note: (005,302)

$59.99

$

In Stock, only 2 left!

0

30

Ariens 06937600

CABLE THROTTLE - EZR 14 + 15HP
(Superseded to 06940800)

$75.99

$

Usually ships in 4-12 days

0

31

Ariens 06113000

SCR-MCH 10-24X.50 PHD

$1.99

$

In Stock, Qty 5

0

32

Ariens 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 01525600

HOSE, FUEL .25 ID X 22 LG

Note: (004,006,303)

$17.99

$

Usually ships in 4-12 days

0

Ariens 01528600

HOSE, FUEL .25 ID X 6 LG

Note: (007,302)

$

$

Not available

Ariens 01525700

HOSE, FUEL .25 ID X 14 LG

Note: (005)

$

$

Not available

34

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

35

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0
