915002 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000201 & Above) MOWER PAN 48" Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

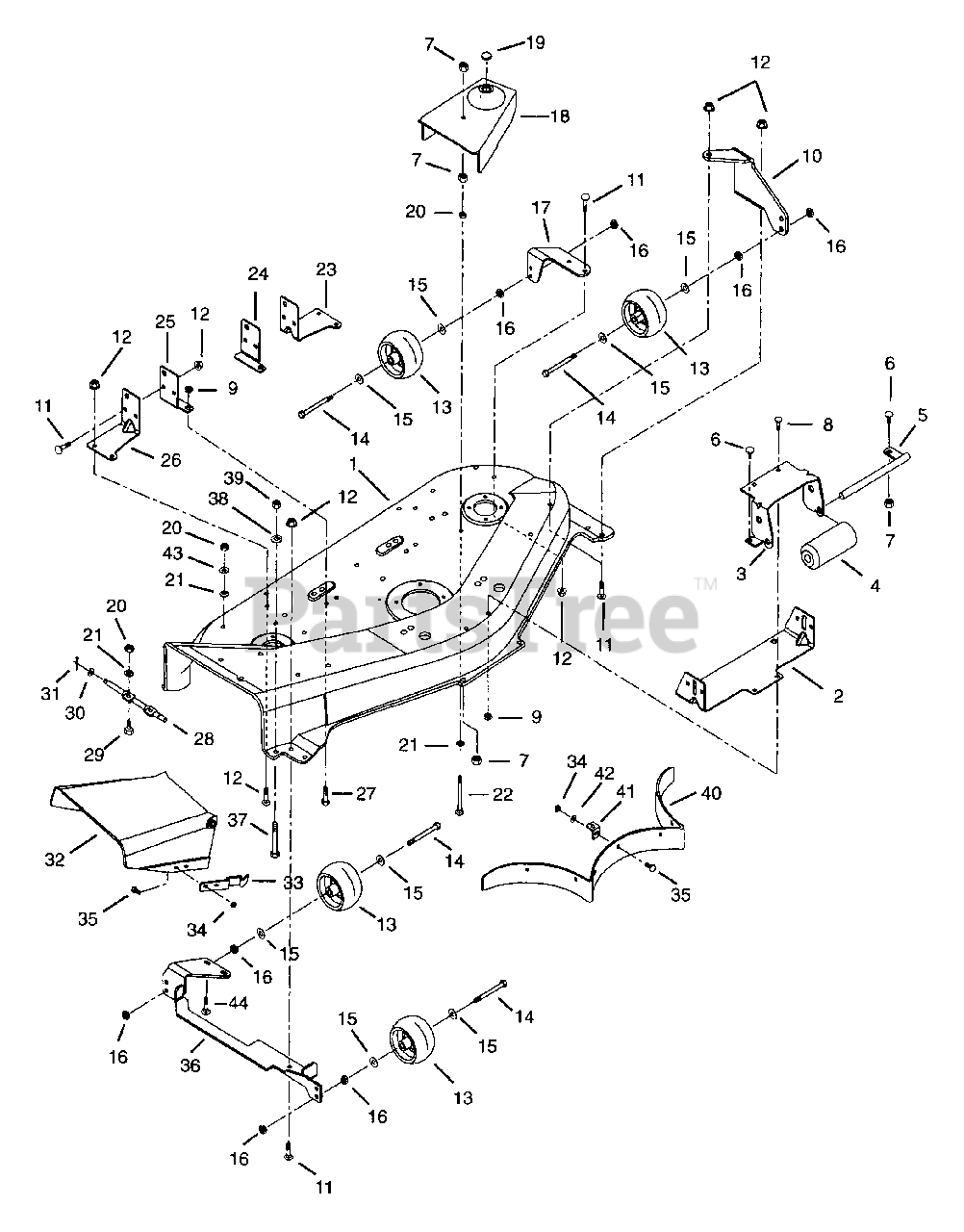

MOWER PAN 48" Parts Diagram

  • Title

1

Ariens 53401700

MOWER PAN W/DECALS 48"- ORANGE

$

$

Not available

2

Ariens 01521200

FRONT HANGER
(Superseded to 01521251)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 03435100

BRACKET, ROLLER
(Superseded to 03435151)

$81.99

$

Usually ships in 4-12 days

0

4

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

5

Ariens 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06208300

BLT-RDHDSQNK .50-13X.75 SHT PL
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

9

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 01521800

LH FRONT BRACKET

$62.99

$

Usually ships in 4-12 days

0

11

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

14

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 01521900

LH REAR BRACKET

$

$

Not available

18

Ariens 03482300

BELT COVER R H 48"
(Superseded to 03095851)

$71.99

$

Usually ships in 4-12 days

0

18

Ariens 03482400

BELT COVER L H 48"
(Superseded to 03095959)

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

20

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06208700

BLT-RDHDSQNK .31-18X3.25 SHTPL
(Superseded to 06221300)

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 01521500

LH REAR HANGER
(Superseded to 51501000)

$

$

Not available

24

Ariens 01521600

LH REAR HANGER SUPPORT
(Superseded to 01521651)

$17.99

$

Usually ships in 4-12 days

0

25

Ariens 01521400

RH REAR HANGER SUPPORT
(Superseded to 01521451)

$46.99

$

Usually ships in 4-12 days

0

26

Ariens 01521300

RH REAR HANGER
(Superseded to 51501000)

$

$

Not available

27

Ariens 05930000

BLT-HEX .50-13X1 PL GR5
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

28

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

29

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

32

Ariens 03034900

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

In Stock, only 1 left!

0

33

Ariens 00318500

SPRING, FLAT
(Superseded to 01597751)

$20.99

$

In Stock, only 1 left!

0

34

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 01521700

ROLLER MOUNT WELDMENT

$20.99

$

Usually ships in 4-12 days

0

37

Ariens 05921600

BLT-HEX.38-16X2.5FTHD GR2 YWZC

$2.99

$

In Stock, only 3 left!

0

38

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

39

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 03434259

BAFFLE
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

41

Ariens 03434300

BAFFLE TAB
(Superseded to 03434351)

$

$

Not available

42

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0
