915002 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000201 & Above) FRONT AXLE Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

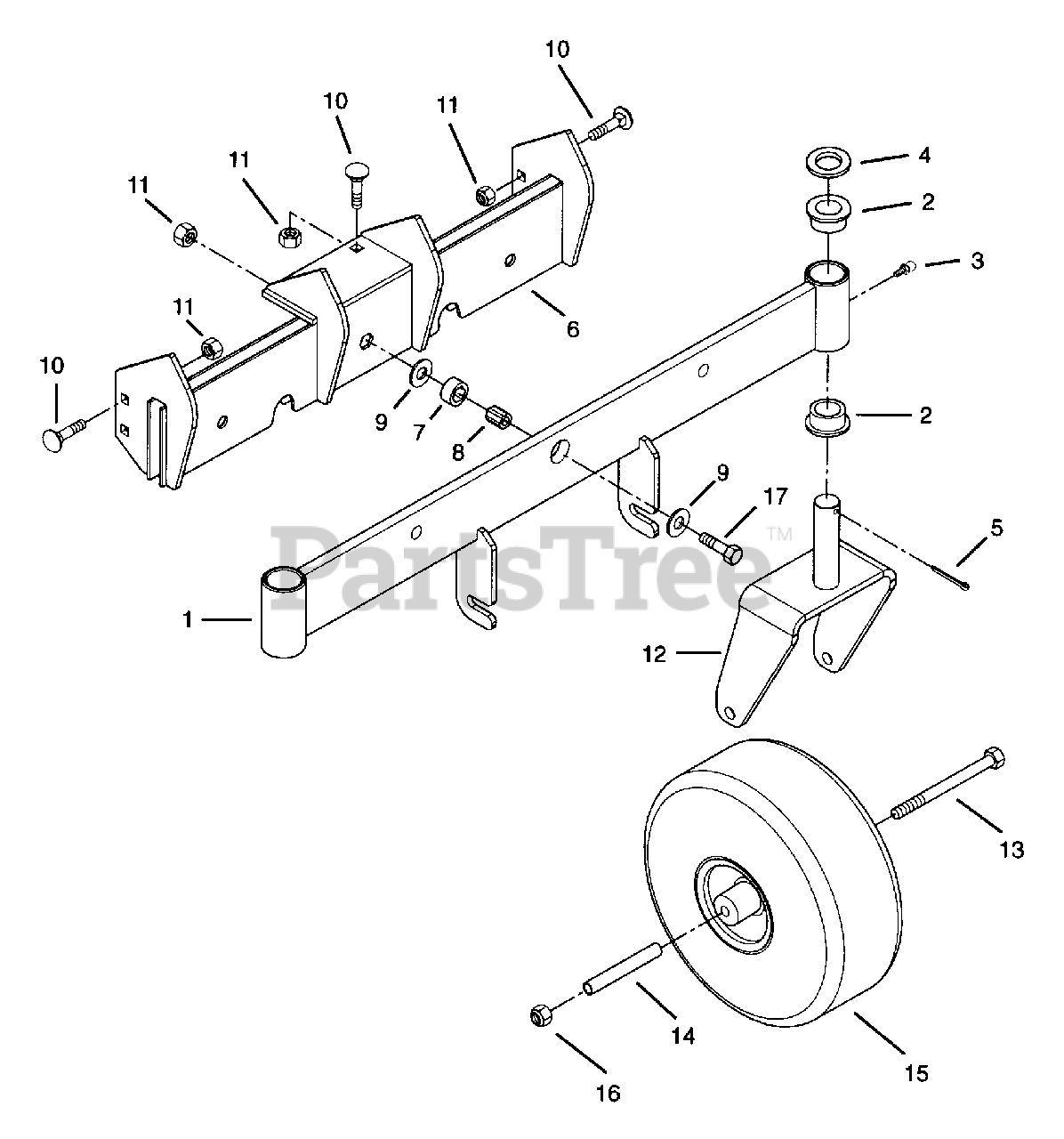

FRONT AXLE Parts Diagram

  • Title

1

Ariens 01522400

AXLE WELDMENT

$85.99

$

Usually ships in 4-12 days

0

2

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 18

0

3

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

4

Ariens 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$4.99

$

In Stock, only 3 left!

0

5

Ariens 06704900

PIN-COTR .188X1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

6

Ariens 01522300

AXLE FRAME WELDMENT

$

$

Not available

7

Ariens 05522000

BSHG-SLV .626X1.000X.524 HEX

$90.99

$

Usually ships in 4-12 days

0

8

Ariens 05522700

BSHG-SLV .377X.623X.775 HEX

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 06421500

WSHR-FL-STL .380X1.50X.125 PL
(Superseded to 06443400)

$3.49

$

In Stock, Qty 10

0

10

Ariens 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

11

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 01504600

WLDT,CASTER FORK
(Superseded to 01504651)

$

$

Not available

13

Ariens 05938500

BLT-HEX .50-13X6.50
(Superseded to 05964400)

$7.99

$

In Stock, only 3 left!

0

14

Ariens 09105200

BUSH.,CASTER FORK

$37.99

$

In Stock, only 3 left!

0

15

Ariens 07144100

T/WHL 11X4.00-5 RIBBED
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

16

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

17

Ariens 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0
