915002 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000201 & Above) CONTROLS Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

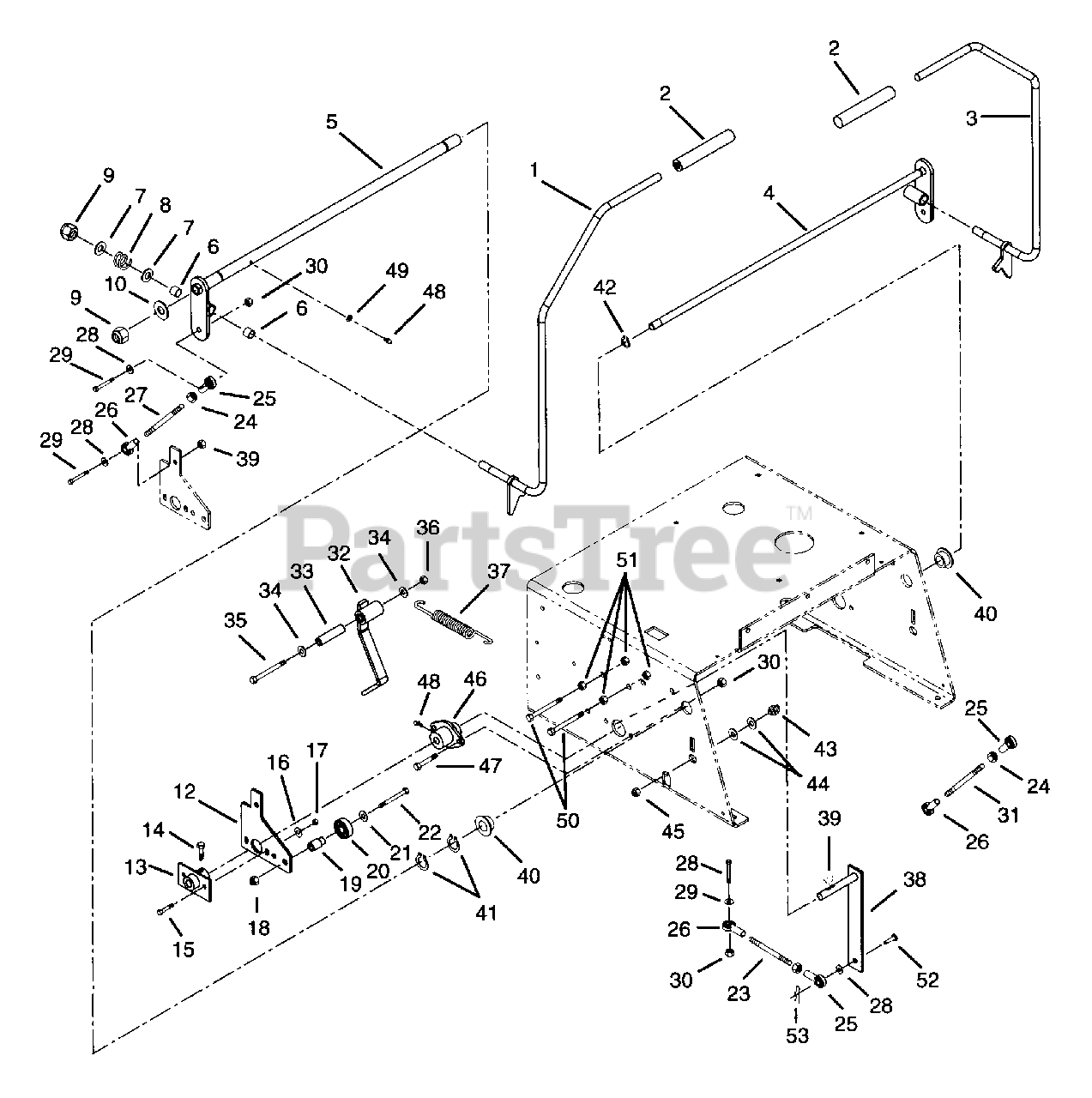

CONTROLS Parts Diagram

  • Title

1

Ariens 01520800

RH STEER-CONTROL LEVER

$50.99

$

Usually ships in 4-12 days

0

2

Ariens 01522200

GRIP

$21.99

$

Usually ships in 4-12 days

0

3

Ariens 01520900

LH STEER-CONTROL LEVER

$50.99

$

Usually ships in 4-12 days

0

4

Ariens 01520200

WLDMNT, ROD LH

$

$

Not available

5

Ariens 01520300

WLDMNT, TUBE RH

$

$

Not available

6

Ariens 00510500

BUSHING, NYLON .5 X .62 X .5LG

$

$

Not available

7

Ariens 00515700

WASHER, PLASTIC .12X.53.1.12

$

$

Not available

8

Ariens 00516200

SPRING, COMPRESSION

$

$

Not available

9

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06429500

WSHR-FL-STL .531X1.062X.095
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 09103100

ARM,SPEED CONTROL
(Superseded to 01539700)

$26.99

$

Usually ships in 4-12 days

0

13

Ariens 01525500

ARM, SPEED CONTROL

$20.99

$

Usually ships in 4-12 days

0

14

Ariens 05915500

BLT-HEX .25-20X.50 PL GR5
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

18

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 2 left!

0

19

Ariens 09107200

HUB, BRG. MOUNT

$

$

Not available

20

Ariens 05407900

BRG-BALL .500X1.375X.437
(Superseded to 05408000)

$5.99

$

In Stock, Qty 20+

0

21

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

23

Ariens 01520500

ROD TRANS CONTROL RH

$

$

Not available

24

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

25

Ariens 08960700

ROD END, 5/16 RH - FEMALE
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

26

Ariens 09107800

ROD END, 5\16 LH - FEMALE

$

$

Not available

27

Ariens 01520700

ROD, CONTROL LEVER

$

$

Not available

28

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

30

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 01520400

ROD, TRANS CONTROL LH

$

$

Not available

32

Ariens 09107400

WLDM'T, NEUTRAL DETENT

$

$

Not available

33

Ariens 08831500

BUSH.,S.385X.610X1.80 ST

$5.99

$

In Stock, only 2 left!

0

34

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 05916000

BLT-HEX .38-16X2.75 PL GR5
(Superseded to 05961400)

$3.99

$

In Stock, only 4 left!

0

36

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 2 left!

0

37

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$13.99

$

Usually ships in 4-12 days

0

38

Ariens 01520600

WLDMNT, PUMP CONTROL

$

$

Not available

39

Ariens 06608600

KEY-WDRF .125X.75

$2.99

$

Usually ships in 4-12 days

0

40

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

41

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

42

Ariens 05716900

RG-RTNG-EXT .500X.460
(Superseded to 05717100)

$2.49

$

In Stock, Qty 8

0

43

Ariens 01526100

SWITCH, NEUTRAL START N.O.

$55.99

$

In Stock, only 1 left!

0

44

Ariens 06412000

WSHR-FL-STL.563X1.37X.109PL
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

45

Ariens 07015100

NUT-STAMPED .56-18

$3.99

$

Usually ships in 4-12 days

0

46

Ariens 01522000

BUSHING, FLANGED

$34.99

$

In Stock, only 1 left!

0

47

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

49

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

Usually ships in 4-12 days

0

50

Ariens 05935200

BLT-HEX .38-16X3.00
(Superseded to 05957800)

$2.49

$

In Stock, Qty 20+

0

51

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

52

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0
