915002 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000201 & Above) ATTACHMENT LIFT Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

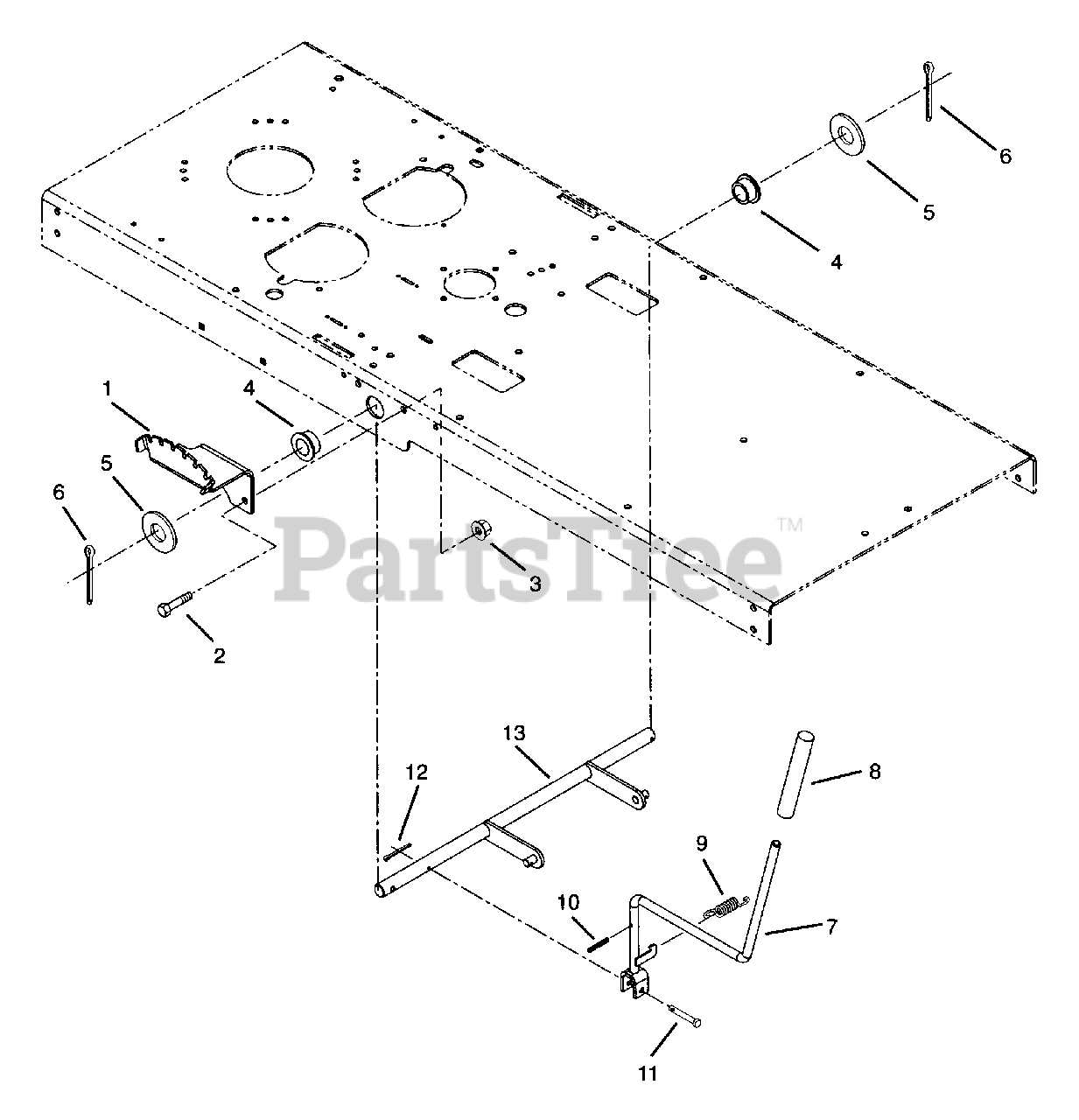

ATTACHMENT LIFT Parts Diagram

  • Title

1

Ariens 01527600

DETENT BRACKET

$

$

Not available

2

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

4

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 12

0

5

Ariens 06430000

WSHR-FL-STL 1.062X2.000X.134
(Superseded to 06443000)

$3.99

$

In Stock, only 3 left!

0

6

Ariens 06704900

PIN-COTR .188X1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

7

Ariens 01527400

LIFT WELDMENT

$

$

Not available

8

Ariens 07527500

GRIP

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

10

Ariens 05800600

PIN-ROLL .250X1.00

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 06813300

PIN-CLEV .370X1.75

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

13

Ariens 01527500

LIFT SHAFT WELDMENT

$74.99

$

Usually ships in 4-12 days

0
